Gold Mining Equipment Gold Vibration Table (6-S series)
| Price: | US $ 1000.00-4000.00/Piece |
|---|---|
| Trade Terms: | FOB,EXW,CIF |
| Min Order: | 1/Set |
| Pay Type: | T/T,Western Union,Paypal,Money Gram |

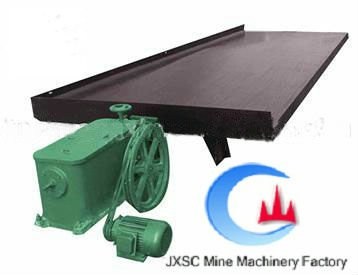

Gold Mining Equipment Gold Vibration Table
Gold Mining Equipment Vibration Table is one of the main gravitational segregation equipments in the enrichment plant, widely applies in the classification.(1)Vibration Table Features
1)high concentration ratio
2)easy intallation
3)simple operation
4)high processing capacity
5)high recovery rate
6)durable
7)shaking table deck: Constructed of fiber glass
(2)Vibration Table Application
Shaking table, ore shaking table is one of the main mineral processing equipment.
It is widely used in sorting tungsten, tin, tantalum and niobium and other rare metals and precious metal ores. It can also be used for sorting iron, manganese ore stone and coal. When dealing with tungsten, tin and other minerals, its effective recovery size is 2-0.02 mm.
(3)Working Principle for Vibration Table
The table dressing process carries on the complex inclined bed surface, and the ore grains are sent in from the bed surface for the ore trough, simultaneously it supplies crosswise wash for the water trough, thus the ore grains laminate surface and according to the proportion and granularity, and make the longitudinal motion and transversal motion along the bed surface, in function of the gravity, the crosswise running water momentum, and the inertia and friction force from the reciprocation symmetry movement of bed surface.
Therefore, the proportion and the granularity different ore grain assumes gradually along respective heading by A on the one hand to B on the other hand fan-shaped flows off, separately discharges from the ore concentrate end and the debris side different area, finally is divided into the ore concentrate, the middling and the debris.

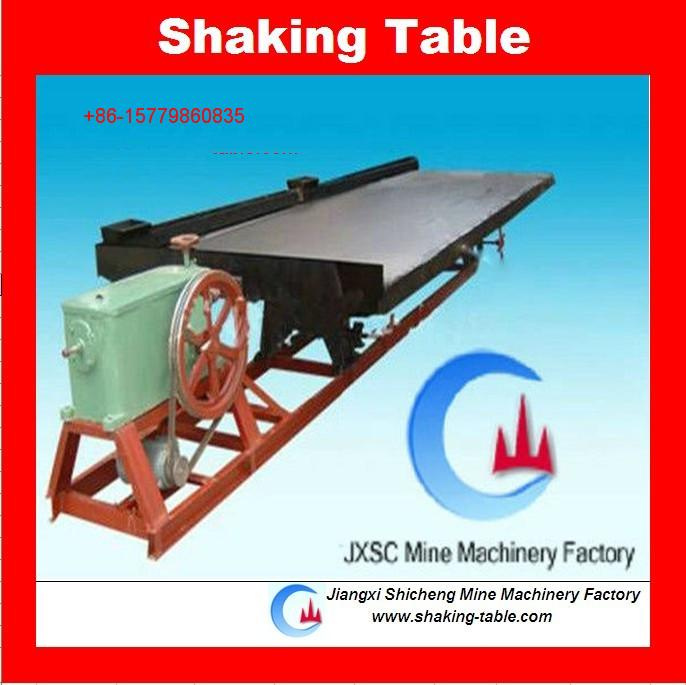

(4)Pics on Vibration Table
| Name | Unit | Course ore Deck |
Fine sand Deck |
Slime Deck | |
| Deck Size | Length | mm | 4450 | 4450 | 4450 |
| transmission end width | mm | 1855 | 1855 | 1855 | |
| Concentrate end width | mm | 1546 | 1546 | 1546 | |
| Maximum Feeding Size | mm | 2 | 0.5 | 0.15 | |
| Feeding Amount | t/d | 30-60 | 10-20 | 15-25 | |
| Feeding Density | % | 25-30 | 20-25 | 15-25 | |
| Stroke | mm | 16-22 | 11-16 | 8-16 | |
| Frequency | f | 45-48 | 18-53 | 50-57 | |
| Water added | t/d | 80-150 | 30-60 | 10-17 | |
| Transverse slope of Deck | ° | 2° 30-4° 30 | 1° 30-3° 30 | 1° -2° | |
| Longitudinal slope of Deck | ° | 1.4 | 0.92 | ------ | |
| Beneficiation Area | m2 | 7.6 | 7.6 | 7.6 | |
| Cross-section Shape of Deck | rectangular | saw tooth | triangle | ||
| Motor Power | KW | 1.1 | 1.1 | 1.1 | |
| Transmission Mechanism | Eccentric linkage | ||||
| Prod Model: | 6-S series |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Deck Size: | as Requested |
| Certificate: | ISO9001: 2001 |
| Category: | Gold Mining Equipment |
| Application Field: | Mining Industry, etc |
| Motor Power: | 1.1kw |
| Benefication Area: | 7.6 Sq.M |
| Installation: | Drawings or Under Guidance |
| Deck Types: | Course Ore Deck, Fine Sand Deck, Slime Deck |
| Riffles Available: | 46/60/88/120 |
| Testing: | Supply |
| Type: | Beneficiation Machinery |
