Jinan Hontylift Machinery Co., Ltd. >> Good Quality Wheelchair Accessible Vertical Lift Table for Disabled
Good Quality Wheelchair Accessible Vertical Lift Table for Disabled
| Price: | US $ 5000-5400/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
Good quality Wheelchair Accessible vertical lift table for disabled
Safety protection device

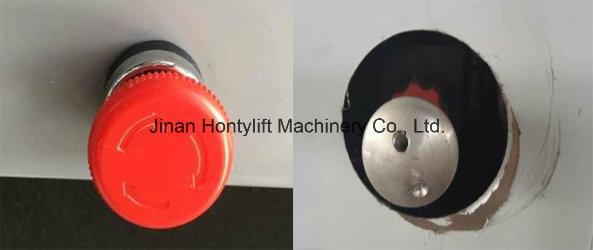

1) Emergency Stop: The lifting and lowering process can be stopped immediately
By pressing the emergency button.
2) Safety device:
Safety Interlock: Lock the platform when it is out of control.
3) Safety Sensor: The operation must be stopped immediately the safety edge meets obstacles during operation.
4) Emergency lowering: The platform can be lowered by opening hydraulic valve manually or rolling screw rod.
5)Auto-flap: Turn up after lifting .
Our company Information
HONTYIIFT MACHINARYco.ltd has devoted itself to the research and development, design and manufacture, salesand service of scissor lift, cargo lift and other hydraulic equipment. As a more than 8 years
export experience supplier of hydraulic equipments supplier, Sinicmech machinery has
more than 20000 square meters producing shop and assembly shop.
That we have many advanced production equipment for cutting steel structure, machine
parts, including scissor structure, platform, hinge pin, beams, articulated boom and other
small parts. which made the precise scissor lift structure and boom lift, beams, and even
the small needed parts, this is a great improve for our products quality and user's safety.
Product Description
1. Introduce
product decription
One of the most common challenges faced by wheelchair users is going through steps in public or private areas.If you are considering an alternative to your current method of going up and down stairs,
The Good Quality Wheelchair Accessible Vertical Lift Table for Disabled might be your best choice. Our wheelchair lift is a short rise vertical elevating system. This durable and easy to use vertical lift is suitable forIndoor or outdoor applications requiring vertical transportation up to 6 meters.
2. Specification
Good Quality Wheelchair Accessible Vertical Lift Table for Disabled can be customized as you required.
1. Introduce
product decription
One of the most common challenges faced by wheelchair users is going through steps in public or private areas.If you are considering an alternative to your current method of going up and down stairs,
The Good Quality Wheelchair Accessible Vertical Lift Table for Disabled might be your best choice. Our wheelchair lift is a short rise vertical elevating system. This durable and easy to use vertical lift is suitable forIndoor or outdoor applications requiring vertical transportation up to 6 meters.
2. Specification
Name | No. | Lift capacity (kg) | Materials | |
Wheel-chair vertical lift | WL0.25-N | 250 | Stainless steel | |
Platform size | 1430mm(L)* 900mm(W) | |||
Dimension | 1430mm(L)*1000mm(W)* [Travel height +700mm(H)] | |||
Max Platform Height | N(mm) | |||
Min Platform height | 40mm | |||
Configuration | Open through or front and side entrances | |||
Speed | 60mm/s | |||
Load capacity | 250KG | |||
Control voltage | 24V/DC | |||
Power Output | 0.75kw-2.2kw | |||
Power Input | 220V/50HZ/25A (or customized for local power supply) | |||
Drive System | Hydraulic | |||
Control Mode | Inching Switch or Automatic | |||
Drive Control | Self-resetting system | |||
Overload | Protection Over current relay | |||
Material of Platform | Spraying plastic | |||
Guard panel & drive cabinet (framework) | Spraying plastic
| |||
Automatical ramp | yes | |||
Column switch | Two column switch, one is on the ground floor, one on the first floor | |||

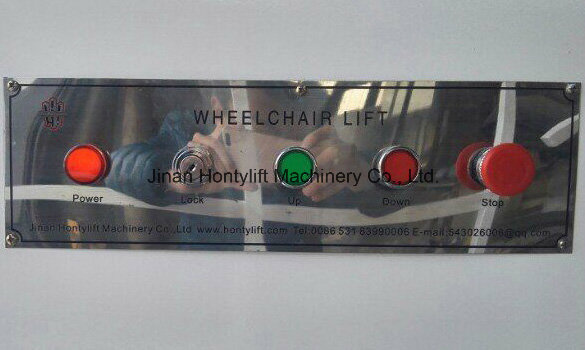

Operation Panel | Polished Stainless steel(up down and Emergency drop valve) | |||
Safety Wane Working Range | 75° | |||
Working Condition | Both indoors and outdoors | |||
Working temperature | From -10°~60°C | |||
Installation
| Non-pit installation, directly fixed to concrete floor (the concrete floor below the platform shall not be lower than the ground) | |||
Control Device
| Calling box (installed on the wall nearby) and remote controller(Extra optional) | |||
Emergency Stop
| The lifting and lowering process can be stopped immediately by pressing the emergency button. | |||
Safety protection device
1) Emergency Stop: The lifting and lowering process can be stopped immediately
By pressing the emergency button.
2) Safety device:
Safety Interlock: Lock the platform when it is out of control.
3) Safety Sensor: The operation must be stopped immediately the safety edge meets obstacles during operation.
4) Emergency lowering: The platform can be lowered by opening hydraulic valve manually or rolling screw rod.
5)Auto-flap: Turn up after lifting .
Our company Information
HONTYIIFT MACHINARYco.ltd has devoted itself to the research and development, design and manufacture, salesand service of scissor lift, cargo lift and other hydraulic equipment. As a more than 8 years
export experience supplier of hydraulic equipments supplier, Sinicmech machinery has
more than 20000 square meters producing shop and assembly shop.
That we have many advanced production equipment for cutting steel structure, machine
parts, including scissor structure, platform, hinge pin, beams, articulated boom and other
small parts. which made the precise scissor lift structure and boom lift, beams, and even
the small needed parts, this is a great improve for our products quality and user's safety.
Our services
1. Presale service:
Free comprehensive and detailed technology consultancy in construction sites, referential programs for construction equipment and the most suitable product program.
2. In sale service:
We provide free guidance of installation and debugging and free training of operation, care and maintenance.
3. After-sale service:
One year warranty service of whole machine and lifetime maintenance; regularly markets visits and free guidance of whole machine's maintenance and reparations.
4. Quick responses:
we have a complete service network, hotline(86-531-88890369) services for 24hours and assist you to solve the problem in a short time.
5. Parts supply:
we have a complete parts supply network and can guarantee sufficient parts reserves and timely supply.
If you are interested inThe Good Quality Wheelchair Accessible Vertical Lift Table for Disabled ,please contact us .
our websit:www.en.hontylift.com
| Prod Model: | HTVL |
|---|---|
| Platform: | Antiskid |
| Platform Size: | 1430*900mm |
| Nstallation: | on The Ground, No Pit |
| Enter Or Exit Direction: | 90° or 180° |
| Application: | Home |
| Carrying Capacity: | Light Level |
| Driven Type: | AC |
| Running Mode: | Stationary |
| Feature: | Safe, Stable |
