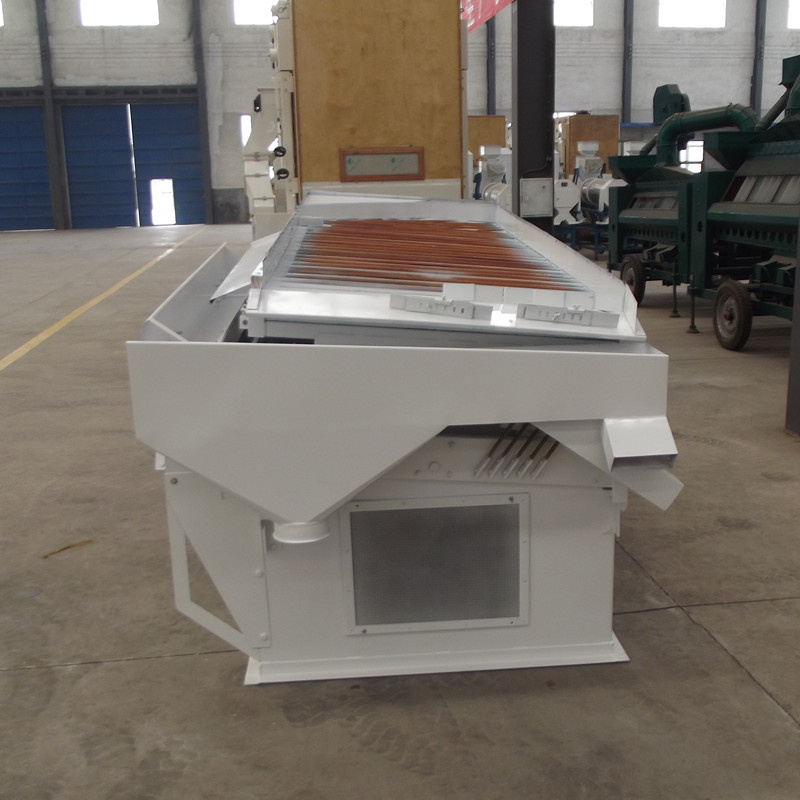

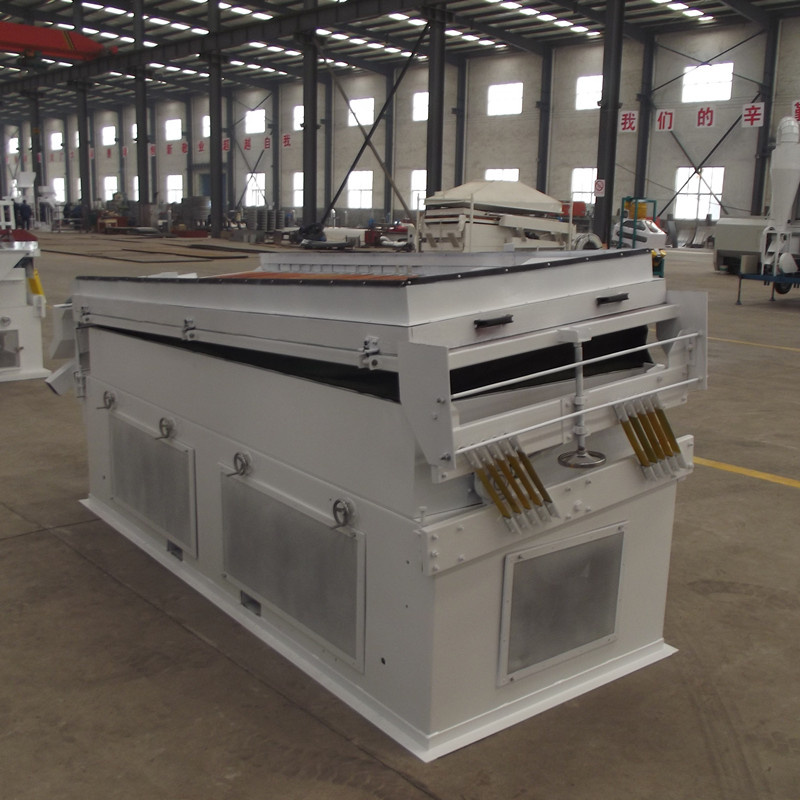

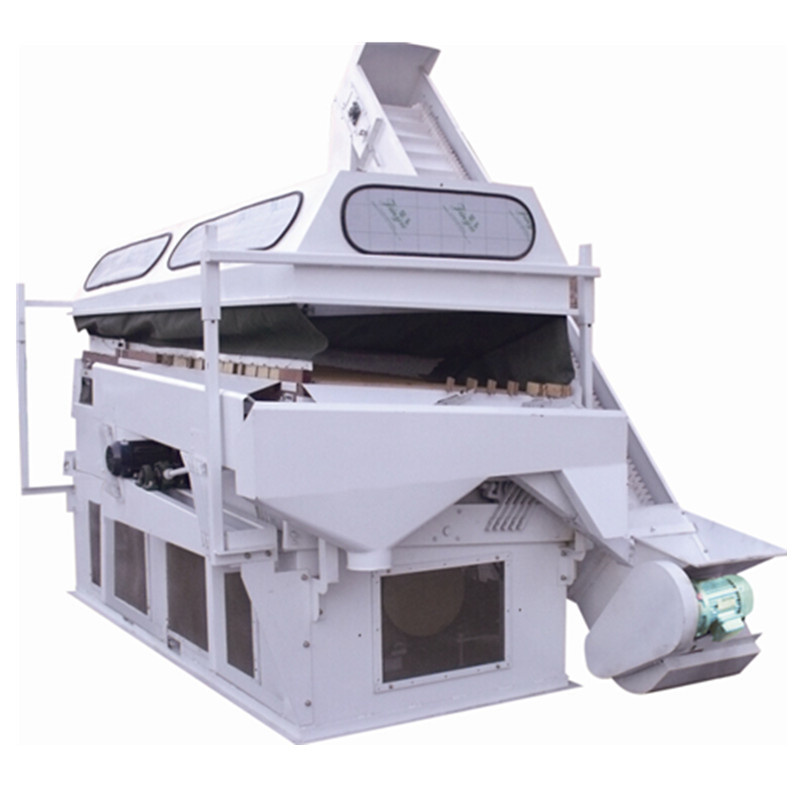

Grain Cleaning Equipment Gravity Separation Table
| Price: | US $ 5000-8000/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
5XZ-6 grain gravity table
Introduction of 5XZ-6 grain gravity table
5XZ-6 grain gravity separator is the blowing type grain gravity separator, used for separating grain and seed which have same shape but different in gravity, finally obtain the best seed which will be used for sowing.
Application of 5XZ-6 grain gravity table
The grain gravity separator can efficiently remove moldy kernel, immature shriveled, insect damaged seed or broken seed to ensure maximum quality of the final product. The grain gravity separator can be used to separate all kinds of seed and grains, such as coffee bean, cocoa bean, peanuts, corn, peas, beans ,rice, wheat, sesame etc.
The grain gravity separator also has wide applications, from heavy industrial materials like glass, stone, metal and sand, to lighter agricultural seeds beans and nuts.
Working Principle of 5XZ-6 grain gravity table
The grain gravity separator works on a fluidized bed principle. Materials is fed on oscillating sieve deck. By the pressure of air & deck oscillation, material is fluidized and stratified. Heavy fraction sink into the deck while light fraction is suspended in fluidized state. Deck oscillation causing heavy and light fraction travel in separated path and collected separately.
Specification of grain gravity table
Introduction of 5XZ-6 grain gravity table
5XZ-6 grain gravity separator is the blowing type grain gravity separator, used for separating grain and seed which have same shape but different in gravity, finally obtain the best seed which will be used for sowing.
Application of 5XZ-6 grain gravity table
The grain gravity separator can efficiently remove moldy kernel, immature shriveled, insect damaged seed or broken seed to ensure maximum quality of the final product. The grain gravity separator can be used to separate all kinds of seed and grains, such as coffee bean, cocoa bean, peanuts, corn, peas, beans ,rice, wheat, sesame etc.
The grain gravity separator also has wide applications, from heavy industrial materials like glass, stone, metal and sand, to lighter agricultural seeds beans and nuts.
Working Principle of 5XZ-6 grain gravity table
The grain gravity separator works on a fluidized bed principle. Materials is fed on oscillating sieve deck. By the pressure of air & deck oscillation, material is fluidized and stratified. Heavy fraction sink into the deck while light fraction is suspended in fluidized state. Deck oscillation causing heavy and light fraction travel in separated path and collected separately.
Specification of grain gravity table
| Model No. | Capacity(T/H) | Power(KW) | Weight(KG) | Sieve Size | Dimensions(MM) | Remarks |
| 5XZ-3B | 3 | 4.25 | 1100 | 2000×325 | 4000×1800×2900 | Suction Type |
| 5XZ-5B | 5 | 9 | 1550 | 2000×625 | 4000×2050×3100 | Suction Type |
| 5XZ-3A | 3 | 5 | 1200 | 2000×325 | 4000×1800×2750 | Suction Type with Dust Cylone Separator |
| 5XZ-5A | 5 | 9.75 | 1600 | 2000×475 | 4000×1900×3100 | Suction Type with Dust Cylone Separator |
| 5XZ-3 | 3 | 7.45 | 1300 | 2250×1150 | 2600×1500×2100 | Blow Type |
| 5XZ-6 | 5 | 8.95 | 2000 | 3000X1200 | 3440X1630X1930 | Blow Type |
| Prod Model: | 5XZC-6 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: | 5000kg/H |
| Color: | White Green etc |
| Usability Of Sieves: | Changeable |
| Type: | Blowing Type |
| Materials It Can Process: | Beans, Dry Pulses, Paddy, Wheat, Maize, Sesame, Et |
| Quality: | High |
