| Prod Model: |
BBS-SDC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Laminar Flow Cabinet |
| Brand Name: |
Huilv |
| Materials: |
Steel, Stainless Steel, Laminate Toughened Glass |
| Internal Size: |
1340*580*540 Mm |
| External Size: |
1440*600*1730 Mm |
| Port: |
Gz, Sz or Customized |
| Type Of Payment: |
L/C, T/T, Western Union |
| Worktop Material: |
304# Stainless Steel |
| Operator: |
1 or 2 |
Product Description
1. operator can be 1 or 2.
2. stainless steel worktop provide high clean level experiment environment.

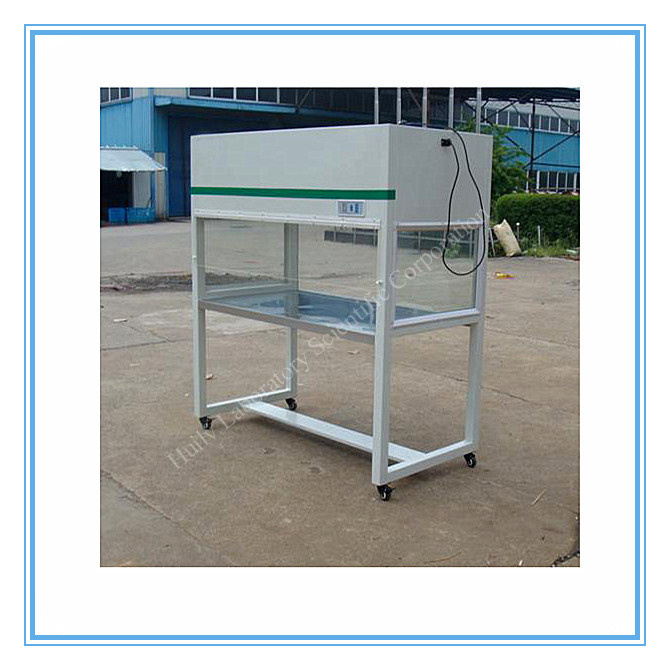

Laminar flow cabinet is a work bench or similar enclosure, which creates a particle-free working environment by taking air through a filtration system and exhausting it across a work surface in a laminar or unidirectional air system. The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminated room air.
Laminar flow cabinet is widely used in medical research laboratories, hospitals, manufacturing facilities and other research and production environments.
| Model | BBS-SDC |
| External size(W*D*H) | 1440*600*1730mm |
| Internal size(W*D*H) | 1340*580*540mm |
| Base stand | 650mm height |
| Display | LED Display |
| Airflow velocity | Average of 0.3~0.5m/s |
| Material | Main body: Cold-rolled steel with anti-bacteria powder coating. Work table: 304 stainless steel. Side and front window: 5mm toughened glass, anti-ultraviolet radiation |
| Pre-filter | Polyester fiber, washable |
| HEPA filter | Efficiency 99.99% at 0.3 μm |
| Noise | <60dB |
| Window control | Manual |
| Max opening | 350mm |
| Fluorescent lamp | 28w*1 |
| UV lamp | 30w*1 |
| Consumption | 600w |
| Caster | Universal wheel with brake |
| Power supply | 110/220v±10%; 50/60Hz |
| Standard accessory | Fluorescent lamp, UV lamp, Base stand, Gas tap*1, Socket*2 |
|
|
|
|
