Zhengzhou Bogen Machinery Equipment Co., Ltd. >> High Capacity Vacuum Microwave Dryer

High Capacity Vacuum Microwave Dryer

High Capacity Vacuum Microwave Dryer
Price: US $ 10000-40000/Set
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union
Prod Model: BG
Certificate: Ce, SGS, ISO
Warranty: 3 Years
After-Sales Service Provided: Engineers Available to Service Machinery Overseas

Product Description

Vacuum Microwave Dryer

Product Introduction:

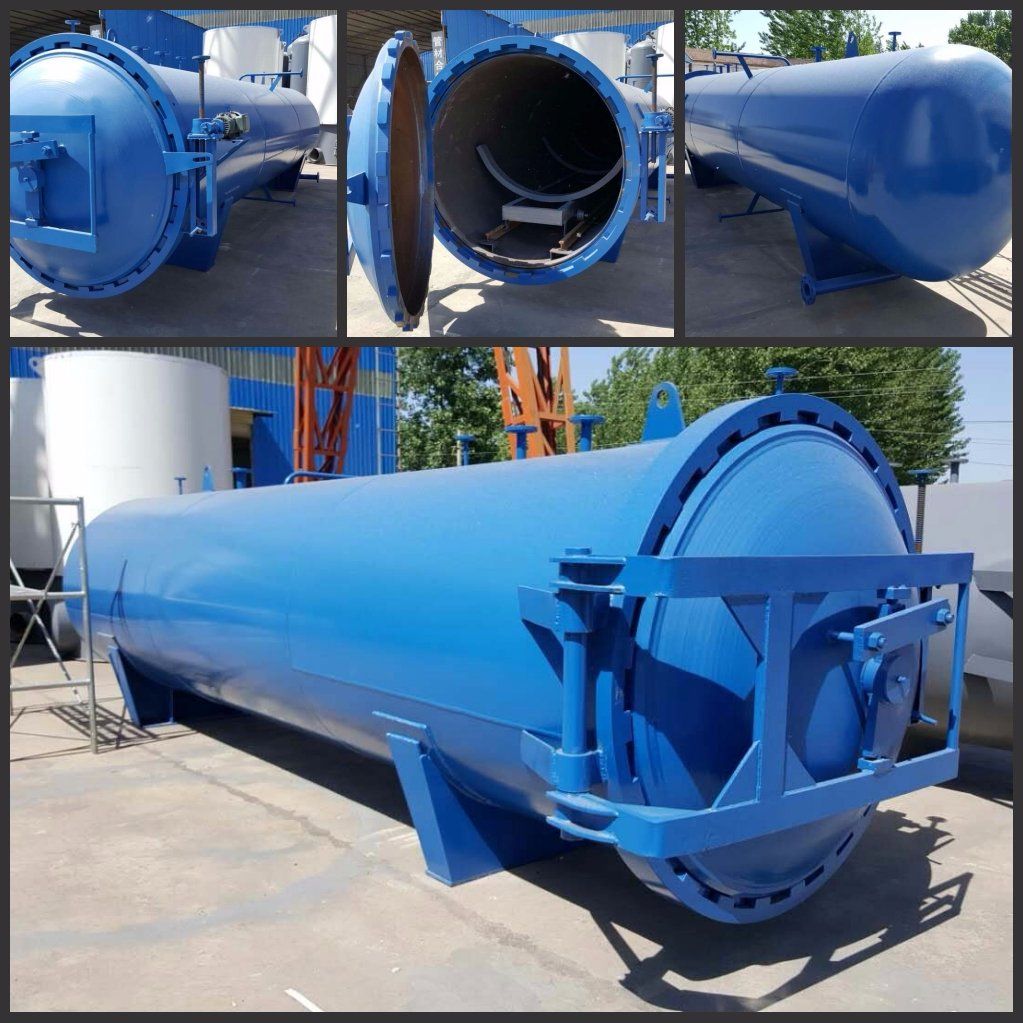

Wood preservation vacuum pressure antiseptic treatment tank is a key equipment of wood preservation, flame retardant;Wood of the tank after reagent leaching, pressure injection infiltration, vacuum drying process, can effectively prevent mildew corrosion caused by wood rotting fungi bacteria such as;Can effectively prevent from insect such as termites, wood borers animals such as damage to the wood.Join different agents at the same time the effect of flame retardant, coloring.Greatly improve the service life of the wood and application scope.Anticorrosive wood, flame retardant wood materials are widely used in indoor furniture, antique garden construction, railway, mine, wharf apron, pile wood ship construction, etc.
Directions of use:
Wood into a vacuum pressure tank to tank door, vacuum (about 0.98 Mpa) - injection drug - pressure booster, (1.0-1.4 Mpa) - decompression and drainage - after vacuum (about 0.98 Mpa) - emptying - out of the tank
Operation process can be divided into five stages:
1, before the vacuum stage:
Put wood in a pressure antiseptic tank, close the tank door, open the vacuum pump to the antiseptic tank vacuum (generally for 0.080 ~ 0.095 MPa), keep for 15 minutes, to draw out the air in the wood cell cavity, making it easier for the wood to be preservative antiseptic, and reduce the preservative recoil when unloading, retain more preservatives in the wood.
Stage 2, preservatives:
Without shutting down under the condition of vacuum pump, which remained under the condition of vacuum, join the preservative solution.If the preservatives fill pressure leaching tank injection before turn off the vacuum pump, so the antiseptic air, left over from the jar, or steam is produced by processing solution is compressed to dip the top of the tank, so when continue to add a preservative solution, the gas will be filling material in the upper pile of wood in vacuum were empty space, in this way, this part makes wood absorbs less number of preservative solution, causing the same batch of wood and uneven results.
Stage 3, pressure:
When preservatives fill pressure leaching tank, close the vacuum pump, after eliminating the vacuum and pressure (can use hydraulic pressure, air pressure) can also be used, to achieve the required pressure (0.8 ~ 1.5 MPa commonly kept for a period of time (usually) for 2 ~ 6 hours, until the required corrosion dose has deep is pressed into the wood, or at the point of wood refused to absorb the preservative solution.When the pressure at the end of phase, eliminate the pressure, because of a small amount of air is compressed in wood expansion effect, absorbed by the wood preservative solution in pressurized phase 5 ~ 15% at this time will recoil from the timber, back pressure leaching tank.
4, drainage stage:
After the lifting pressure, using gravity of preservative solution, or with drainage pump, inject pressure leaching tank preservative solution is returned to the preservative solution storage tank.
5, after vacuum phase:
After the row as a preservative solution, close all valves, turn on the vacuum pump, after the start of the vacuum stage.After the vacuum degree of vacuum can be like before vacuum (0.080 ~ 0.095 MPa), or slightly lower, maintain 10 ~ 30 minutes.Then remove vacuum, released in the vacuum phase extraction of preservative solution.Opened the door of tank, take out treated wood, anti-corrosion treatment has been completed.
Technical:
Tank DiameterTank LengthSingle pot Capacity(m3)
BG1000A60002.75
BG1100B80003.5
BG1200A60004.0
BG1200B80005.0
BG1500A60006.0
BG1500B80008.0
BG1800A60009.0
BG1800B800011.0
Application:
After CCA and ACQ vacuum pressurized anticorrosive wood is widely used in garden landscape engineering, construction, outdoor furniture, garden facilities, such as: wooden house, sit chair wooden desk, flower beds, fences, rubbish bins, a pavilion, rail, bridge engineering, wooden house, sit chair wooden desk, flower beds, fences, outdoor decoration, villa courtyard embelished frame, guardrail, square floor, tourism small wharf, anticorrosive wood floor, flower shelf, pro level table, fishing platform, wooden footway, floor, ladders, railings.

Zhengzhou Bogen Machinery Equipment Co., Ltd., founded in 2010, is a collection of scientific research, production, marketing, service as one of the modern high-tech equipment manufacturing enterprises, won the ISO9001-2000 and the European Union CE certification. Our products are widely involved in food machinery, agricultural machinery, forestry machinery, mining machinery, and many fields such as research and development of new energy, at the same time, we have many years rich experience in export, our customers all over the world, from North America, South America, Europe, Oceania, Africa and southeast Asia, our products are well received by the users and praise.

Bogen-Equipment has the abundant technical force, advanced manufacturing technology, excellent first-class processing equipment, using high and new technology makes the equipment products, variety, complete specifications, leading quality, courteous service, design ability, can in a relatively short period of time to complete the new product according to the requirements of customers design and production, to provide users with the required finished product, the product sells high reputation both at home and abroad, have a higher visibility.

Bogen-Equipment adhering to the "pragmatic dedication, cooperation, highly effective, enterprising, strives for perfection" spirit of enterprise, dedicated first-class products to customers, with confidence, technology and competition to provide users with more high-quality service.
