High Density Mobile Shelving
| Price: | US $ 165-180/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
What is High Density Mobile File Storage cabinet Shelving ?
Mobile Shelving is a shelving system which mounted on moving carriages. It is a perfect & high efficiency storage solution maximum uses of your limited floor space.
All archive shelving units can be locked & packed when access is not required, but when needed, an aisle can be created. All the rolling shelving units have dust proof device, make sure the whole units are dust free
Compactor Storage Systems provides a solution to your storage needs and increase storage efficiency with systematic filing and retrieval of storage materials.
The benefits you can get by using mobile aisle shelving systems
Product Features:
1. mobile shelving t is Effortless push-pull operation
2. Economical way to maximize your valuable storage space
3. Units can be easily extended, altered or relocated to support your changing storage needs
4. Available in single or tandem configurations
5. Low profile tracks are trolley and wheelchair friendly
6. Each system is lockable with a central lock when packed together
7. The built-in safety locks for mechanical type cabinets to safeguard users from accidentally trapped in aisles
Why choose simply?
1. All filing shelving can be customized/tailored, sizes/dimensions & the designing, we can do as per you requested
2. Industry Solid bearings & tracks are what we are using
3. A variety of accessories for your choice
4. more than 10 years manufacturing experience
we have been manufacturing compact filing system more than 10 years, our professional teams will offer you suitable & perfect solutions, we are not offering products, we are offering storage solution
Product details:

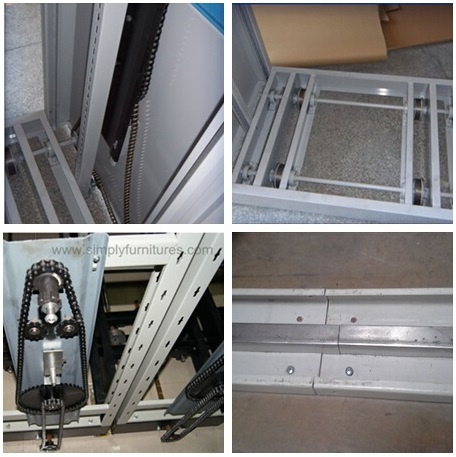

Mobile shelving system mechanical operation wheel, basement and rail details:

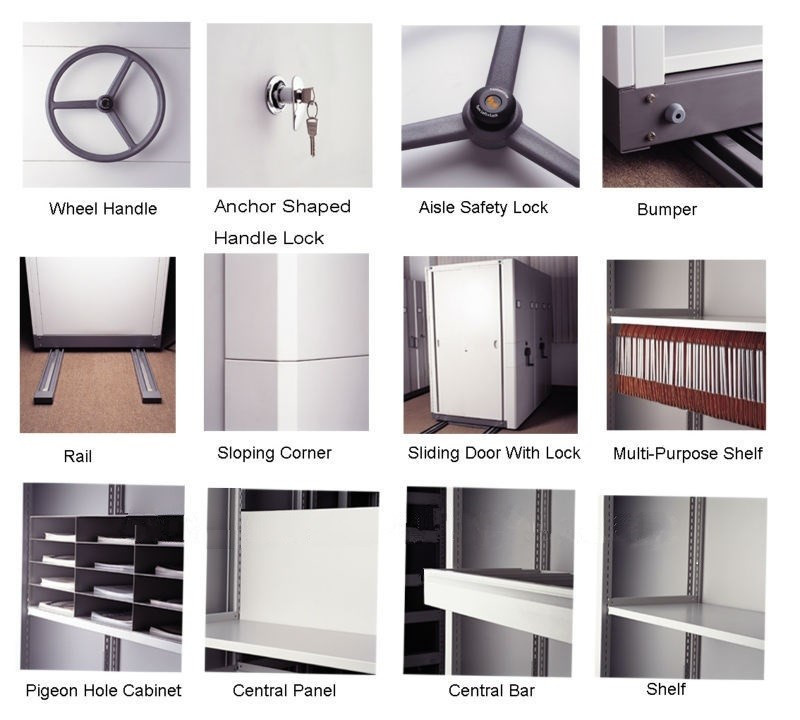

Main parts and Optional accessories: Multi-purpose shelf, cabinet, pull-out desk top, hanging rod, pull-out frame, pull-out drawer, divider , disk drawer, platform, sliding door
Specification:
Mobile Shelving is a shelving system which mounted on moving carriages. It is a perfect & high efficiency storage solution maximum uses of your limited floor space.
All archive shelving units can be locked & packed when access is not required, but when needed, an aisle can be created. All the rolling shelving units have dust proof device, make sure the whole units are dust free
Compactor Storage Systems provides a solution to your storage needs and increase storage efficiency with systematic filing and retrieval of storage materials.
The benefits you can get by using mobile aisle shelving systems
- Double your storage capacity
- Speed access to and retrieval of information
- Storage of your valuable collections
- Effortless movement
- safety
Product Features:
1. mobile shelving t is Effortless push-pull operation
2. Economical way to maximize your valuable storage space
3. Units can be easily extended, altered or relocated to support your changing storage needs
4. Available in single or tandem configurations
5. Low profile tracks are trolley and wheelchair friendly
6. Each system is lockable with a central lock when packed together
7. The built-in safety locks for mechanical type cabinets to safeguard users from accidentally trapped in aisles
Why choose simply?
1. All filing shelving can be customized/tailored, sizes/dimensions & the designing, we can do as per you requested
2. Industry Solid bearings & tracks are what we are using
3. A variety of accessories for your choice
4. more than 10 years manufacturing experience
we have been manufacturing compact filing system more than 10 years, our professional teams will offer you suitable & perfect solutions, we are not offering products, we are offering storage solution
Product details:
Mobile shelving system mechanical operation wheel, basement and rail details:
Main parts and Optional accessories: Multi-purpose shelf, cabinet, pull-out desk top, hanging rod, pull-out frame, pull-out drawer, divider , disk drawer, platform, sliding door
Specification:
| Parameter Specification : | ||||||||
| Types: | Manual | Mechanical Wheel | Mechanical Handle | |||||
| Material : | Electyolytic Galvanized Steel | |||||||
| Surface treatment: | Epoxy Powder Coating | |||||||
| Dimension : | Height : | 2150mm | ||||||
| Width : | (905*N)+165mm (N=number of Bays) | |||||||
| Depth : | Fixed Unit : 450mm | |||||||
| Movable Unit : 450/650/850mm | ||||||||
| Shelf Size : | W845xD395xH38mm(for 450/850); | W845xD295xH38mm(for 650); | ||||||
| No. of Shelf | Single Fixed /Single Movable =4n | |||||||
| Double Movable =8n | ||||||||
| Aisle Size : | 600-1000mm | |||||||
| Loading per Shelf: | Reinforced Shelf : | D295mm/85kg ; D395mm/100kg | ||||||
| Multi-purpose Shelf : | D395mm/70kg | |||||||
| No. of Rails : | 1-3Bays : | 2pcs | 4-5Bays : | 3pcs | ||||
| 6-7Bays : | 4pcs | 8Bays : | 5pcs | |||||
| Thickness: | Base | Back panel | Top panel | Front panel | Side panel | Shelf | Post | Rail |
| 2mm | 1mm | 1mm | 1mm | 1mm | 0.8mm | 1.5mm | 2mm | |
| Lock : | Steering wheel with brake ,more safety | |||||||
| Post | 50x50mm square tube post of double plate with slots in 25mm increment | |||||||
| Bumper : | Natural rubber of 30x16mm | |||||||
| Rail : | Made of 25mm concrete steel with 0.8mm stainless steel sheet coating | |||||||
| Wheel : | Iron die casting with anti-rust zinc coating | |||||||
| Loading : 1000kg / Wheel | ||||||||
| Standard model of mobile filing shelving | ||||||||
| Type | Bay numbers | Single fixed | Single movable | Double movable | Double Movable | |||
| Manual | 1 | SFP450-1 | SMP450-1 | DMP650-1 | DMP850-1 | |||
| 2 | SFP450-2 | SMP450-2 | DMP650-2 | DMP850-2 | ||||
| Mechanical | 1 | SFM450-1 | SMM450-1 | DMM650-1 | DMM850-1 | |||
| 2 | SFM450-2 | SMM450-2 | DMM650-2 | DMM850-2 | ||||
| 3 | SFM450-3 | SMM450-3 | DMM650-3 | DMM850-3 | ||||
| 4 | SFM450-4 | SMM450-4 | DMM650-4 | DMM850-4 | ||||
| 5 | SFM450-5 | SMM450-5 | DMM650-5 | DMM850-5 | ||||
| 6 | SFM450-6 | SMM450-6 | DMM650-6 | DMM850-6 | ||||
| 7 | SFM450-7 | SMM450-7 | DMM650-7 | DMM850-7 | ||||
| 8 | SFM450-8 | SMM450-8 | DMM650-8 | DMM850-8 | ||||
| Standard Depth: ( D ) | 450mm | 450mm | 650mm | 850mm | ||||
| Standard Hight: ( H ) | 2150mm | |||||||
| Standard Width: ( W ) | 905*N (N=number of Bays) | |||||||
| Thanks for your concern ! | ||||||||
| Prod Model: | T4B-04 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: | Putty, Light Grey, Beige, White |
| Surface Treatment: | Epoxy Powder Coating |
| Quality Warranty: | 3 Years |
| Delivery Time: | 2-3 Weeks |
| Port: | Shen Zhen Port |
| Material: | Metal |
| Open Type: | Sliding |
| Usage: | Office |
| Customized: | Customized |
| Door: | Without Door |
