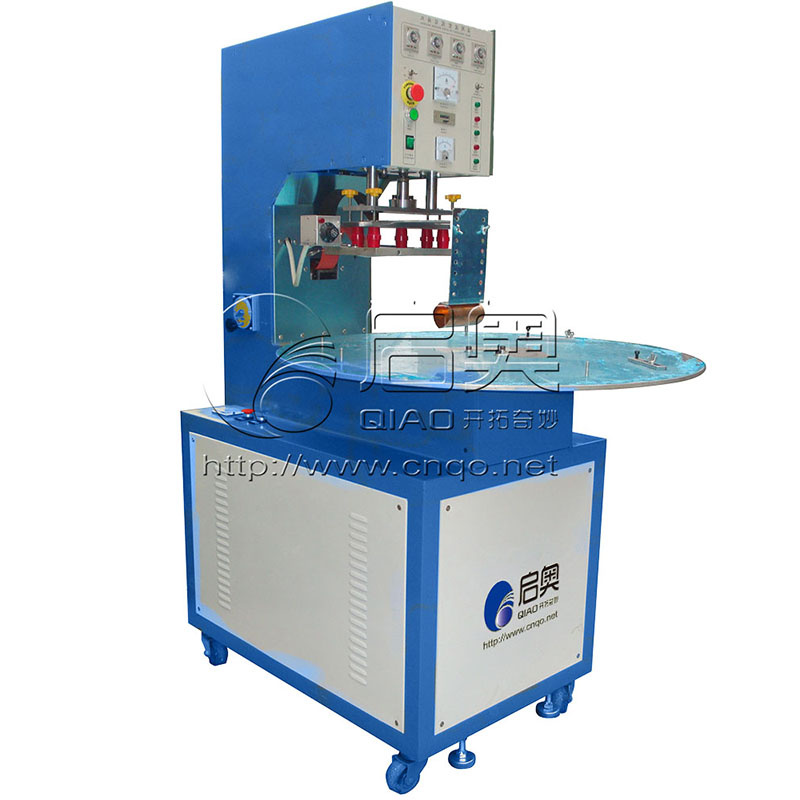

High Frequency Pencil Box Card Sleeve Welding Machine Round Table with 3 Positions
| Price: | US $ 2500-25000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | T/T |
Product Application
Application:
1. To seal blister of PVC, PET-G, PET-GAG, A-PET...
2. Clear blister packaging
3. Plastic clam-shell packaging
4. Plastic Blister with plastic blister packages
5. Plastic blister with cardboard packages
6. Positive/negative blister forming and packaging
roundle turntable high-frequency welding machine, also called high-frequency sealing machine. It has two styles: Manual and automatic.mainly suitable for PVC and PVC contained 30% up blister packing in a blister and paper card heat sealing packaging.PVC 10% more than any of the hard and soft plastic, plastic, leather, fabric can be heat sealing welding sealing packing, embossed indentation, etc
SPECIFICATION:Technical Specifications: | ||||
Model | QO-5KWSY | QO-8KWSY | QO-10KWSY | QO-12KWSY |
Output Power | 5000W | 8000W | 10000W | 12000W |
Anti-Spark System | NL-5557 High sensitive anti-spark system | |||
Voltage | 3P AC 380V/220V/440V 50Hz-60HZ or customize | |||
Frequency | 27.12MHz +/- 0,6 % | |||
Input power | 8KVA | 10KVA | 15KVA | 20KVA |
Rectifier | SILICON DIODE | |||

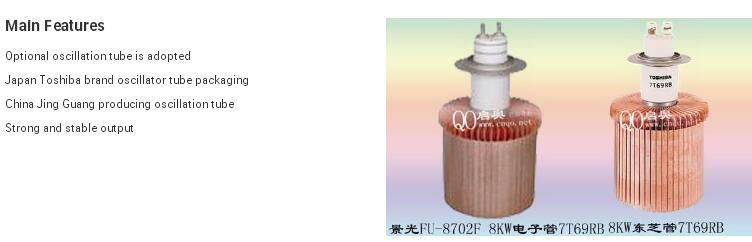

Oscillation tube | 7T85RB | 7T69RB | E3069 | E3130 |
Max pressure | 300~500KG | |||
Operation mode | Pneumatic Operated (Hydraulic pressure upon request) | |||
Max gap of electrodes | 200 mm | |||
Size of active horn | 150 mm | |||
Upper Electrode (W*H*L)(mm) | 120*290 | 120*290 | 150*300 | 150*300 |
Size of Work Table (L*W)(mm) | 350*700 | 350*700 | 350*700 | 350*700 |
Welding time | 0.01~9.99s adjustable | |||
Net weight | 300KG | 350KG | 400KG | 500KG |
Foreseen productivity | 10-20 tims/min depending on welding and rotating times, and operator skills | |||

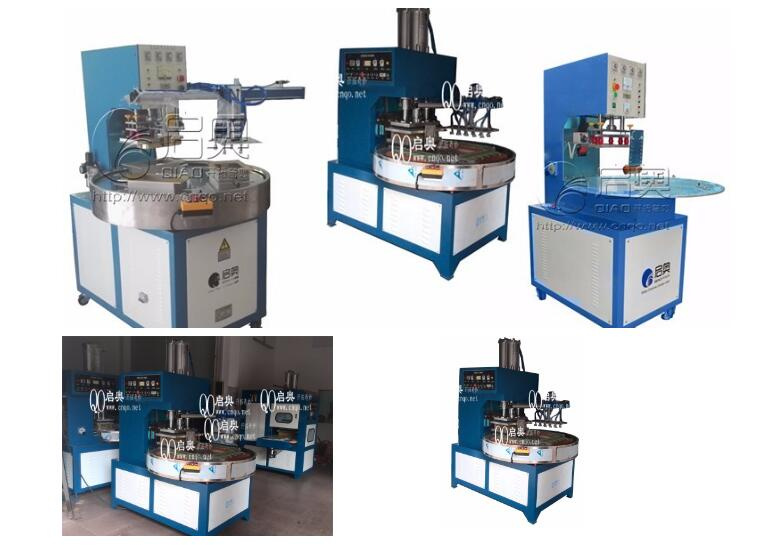

Detailed Images
Main Features
| Item | high frequency clamshell packaging machine Feature |
| 1 | Using high Q value vibration tube for stable and reliable output |
| 2 | With round working table which need to be rotated by hand |
| 3 | With 3~4 working positions on the table for choose which work alternatively |
| 4 | pneumatic pressing system, max pressure can up to 350KG |
| 5 | Heated electrode welding horn holding plate for good plastic welding result |
| 6 | HF generator at a stabilized frequency of 27.12MHz. + -0.6%. |

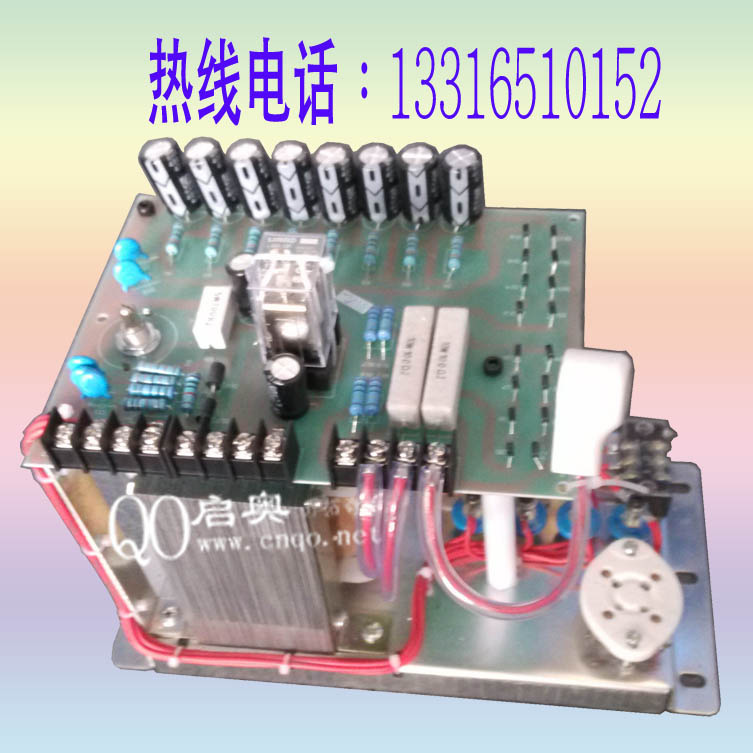

| 7 | With 5557 anti-spark device, for protecting machine and welding mould from over current |
| 8 | Feeding voltage 1/3phases,220V/380V, 50/60Hz + ground or customized |
| 9 | Production speed: 3000~4000 cycles per days( 8 working hours as usual). |
| 10 | The program is pre-setting up, the circuit can be counter-action of two circuits |
| 11 | Equipped with 4 lockable wheels, easy to move the machine |
| 12 | With high precision temperature controlling can assure the coherence of weldingIT |

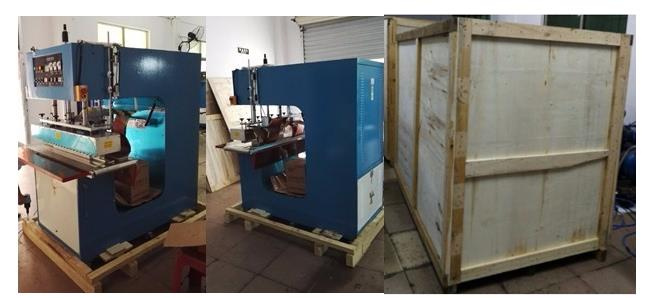

Packing & Delivery
| Prod Model: | QO-5KWYS |
|---|---|
| Voltage: | 220V/380V or Customized |
| Frequency: | 27.12MHz |
