Dongguan Hirung Precision Machinery Co., Limited >> High Precision CNC Machining, Vmc640 Milling Metal Machine, Table Size 700*420mmev640L
High Precision CNC Machining, Vmc640 Milling Metal Machine, Table Size 700*420mmev640L
| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
Cnc Milling , cnc controller Fanuc Milling Machine with 24 arm type tool EV640L
Price is different accroding the configurations .
Basic Info.
working video https://www.youtube.com/watch?v=u5pdw_Y6F_Y
Milling Cutter Type: Vertical Milling Cutter
Automatic Grade: Automatic
Precision: High Precision
Type: Tool Milling Machine
Processing Type: Metal
X,Y,Z Motor Type: Servo Motor
Warranty: 1 Year
HS Code: 84571010
positioning precision:0.003mm
repeatability positioning precision: ±0.003mm
Product Description
Features
1. High tensile strength meehannite cast iron
2. "A" type column with bigger span
3. Japanese THK or similar grade precise ball screw
4. Arm type automatic tool change with 24 tools
5. Full splash gurard
High performance, high efficiency, high stability, economical vertical machining center.
,,,,,,,,,,.
All the castings adopt high quality and high stability Germany Meehannite cast iron and digitizing metal formula to ensure the quality of castings. FEM analysis is used to analyze castings and computer is used to calculate and analyze so as to strengthen the design of organization structure, enhance the rib configuration, optimize the casting structure and enhance the rigidity of whole machine.
,"A","","";

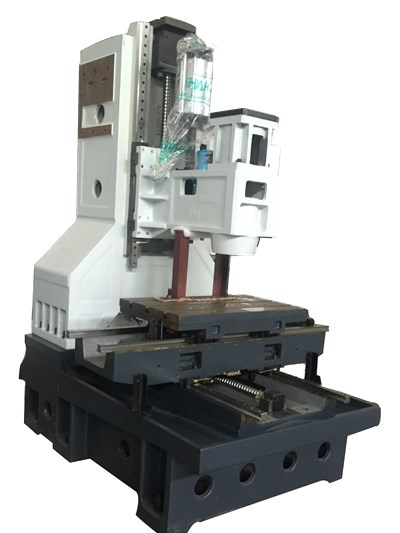

"A" type column has bigger span in base to ensure rigidity and stability.
,,,,;
Saddle is wider and thicker to ensure the ability of heavy duty when processing.
,;
In spindle box, rib is reinforced to strengthen the contact surface between spindle box and column and provides great support.
,,,.

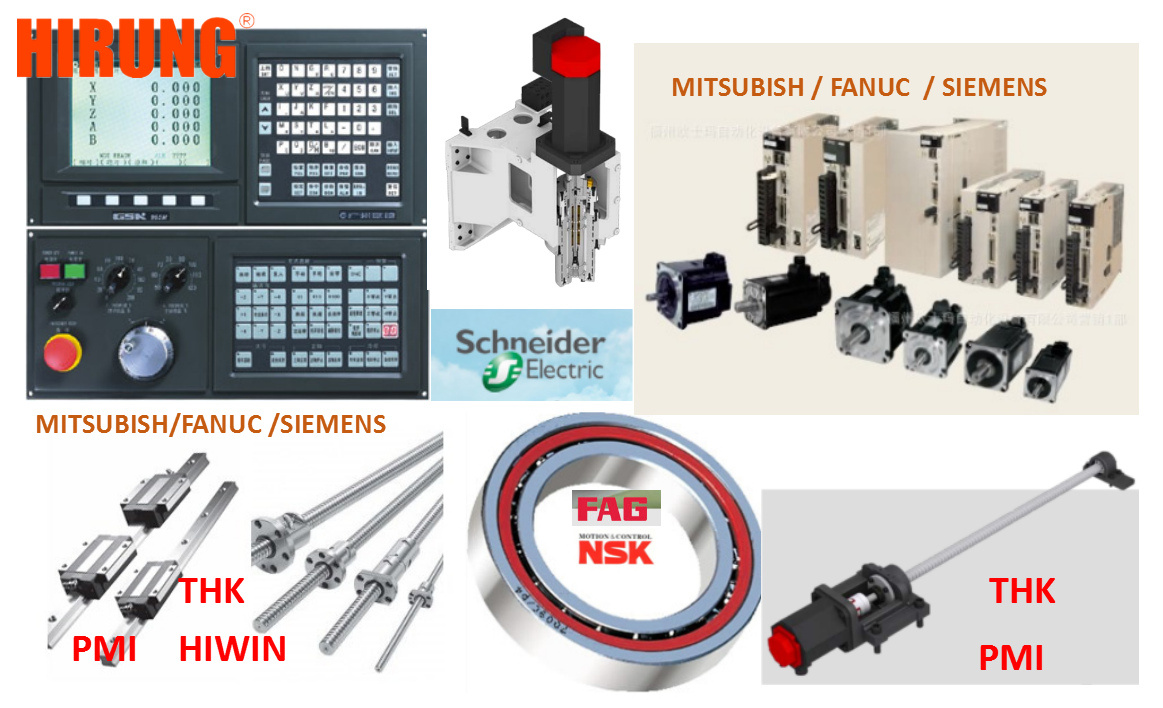

All the parts are Germany, Japan and Taiwan imported components to ensure the durability and long-term stability of machine.
THK,,,
Three axes roller ball screw adopt Japanese THK or same level ball screws which use the method of direct connection and pre-stretching to ensure the accuracy of machine.
THK,,,,,.
Three axes adopt Japanese THK or same level linear guideways which have the advantages of small friction, short rapid transit time and high efficiency. And the excellent repeated positioning accuracy can realize the high processing accuracy.
12000rpm,,,,,,.:8000rpm/10000rpm,15000rpm.
It adopts 12000rpm high speed direct-type spindle equipped with spindle oil cooler device to keep spindle in a state of constant temperature. Compared with general spindle, it has the advantages of fast speed, high stability and long working life.
(Optional): 8000rpm/10000rpm belt-type spindle,5000rpm direct-type spindle.
Packing & Delivery
Packing Details : To be packed in wooden cases,suitable for export.
Delivery Details : 25~35 days after receipt of deposit
Specifications
Other model for choice :
Standard Configuration
1,Total Splash Guard
2,24 Arm Type ATC 24 Tools
3, 12000rpm Direct Type Spindle
4,Cutting Coolant System
5, Automatic Centralized Lubrication System
6, Heat Exchanger for Electric Cabinet
7, Manual Pulse Generator
8,RS232 RS232 Interface
9, Working Light
10, Tricolor Caution Light
11 Basic toolbox
12 Leveling Bolts and Blocks
:Optional Configuration
1: Spindle Oil Cooler Devices
2: Auto Spiral Type Chip Conveyor
3: Hinge(Scraper) Type Chip Conveyor
4: (10-75Par)) Coolant Through Spindle Device
5: Air Conditioning Device in the Electric Box
6: Auto-measurement System for Tool Length and Diameter
7: Measuring System of Workpiece
8: Non-contact Measuring System of Tool Length and Diameter
9: Full Closed-loop System of the Linear Scale
11: NCRotary Table of the Forth(Fifth) Axis

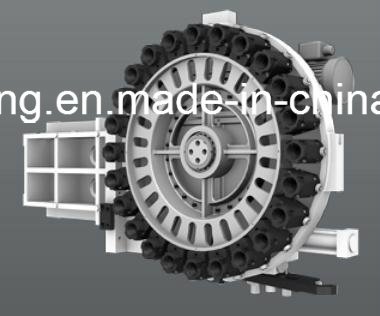

( Taiwan Top brand DETA 24 arm type tools magazine )
Our Service
1) Quality & Service : We take care of the product quality in order to provide good service to our customers.
2) Price : In order to serve more better to our customer we are always finding the way to reduce the price.
3 )Warranty: One year after shipment,consumables are not included.
About us
Dongguan HiRung Precision Machinery Co., Ltd is a Sino-German joint venture. The company is specialized in producing and selling CNC machining center, CNC lathe machine and automation devices. The sales center of our company is located at Dongguan--the largest manufacturing city in China. The production base is in the hi-tech industrial park of Shaoguan city, the factory covers an area of 100 acres. From the original design to the production of the machine are under strict quality control system, which guarantees that our customers will receive the most stable products.
Now we are expanding our overseas market, in July 2015 we set up branch office in Indonesia, in August 2015 we set up branch office in Bangladesh under our global brand marketing strategy. In 2017 ,we developed gent in Mexico , Currently our company is focused on the business of CNC machine tools and CNC automation tools. Products for export account for 80% of our business. We are dedicated to provide the costumers with good equipment and good after-sales service. Our goal is to make "HIRUNG" CNC machine tools one of China's most professional automation brands.

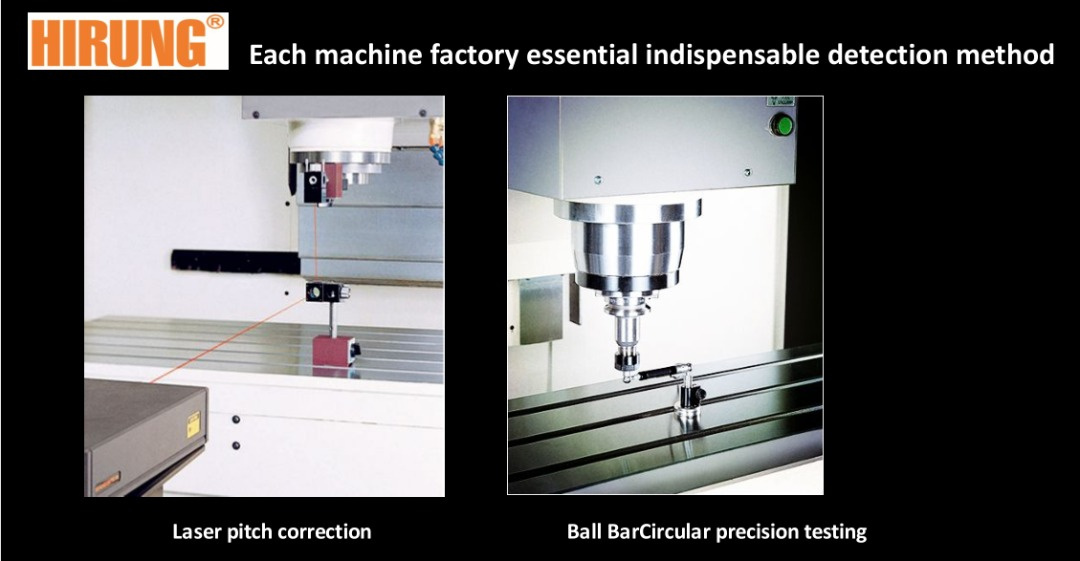

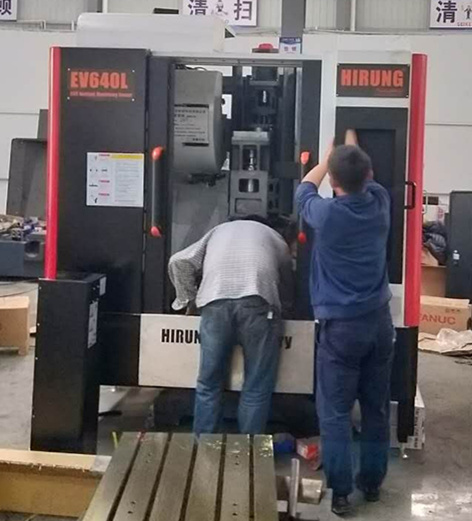

Serious testing & assemble
Why Choose US
1.Reliable Trademark Company with 12 years machienry experience
2.Gold Member and Audited Suppliers in Made-in-China.
3.Customize Machine according to Customer's Requirement.
4.CE approved and One year warranty, provide whole-life technology support.
5.High quality with competitive price.
6. We supply professional solution to you based on your own process one by one.
7. 7*24 hours Email or phone service.
8.China's best machine,It's not the cheapest,but it's the best!----HIRUNG
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 35 days , it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: NO.
Q: What is your terms of payment ?
A: T/T 30% with the order, the rest 70% of total amount T/T before.
If you have another question, pls feel free to contact us as below:
Price is different accroding the configurations .
Basic Info.
working video https://www.youtube.com/watch?v=u5pdw_Y6F_Y
Milling Cutter Type: Vertical Milling Cutter
Automatic Grade: Automatic
Precision: High Precision
Type: Tool Milling Machine
Processing Type: Metal
X,Y,Z Motor Type: Servo Motor
Warranty: 1 Year
HS Code: 84571010
positioning precision:0.003mm
repeatability positioning precision: ±0.003mm
Product Description
Features
1. High tensile strength meehannite cast iron
2. "A" type column with bigger span
3. Japanese THK or similar grade precise ball screw
4. Arm type automatic tool change with 24 tools
5. Full splash gurard
High performance, high efficiency, high stability, economical vertical machining center.
,,,,,,,,,,.
All the castings adopt high quality and high stability Germany Meehannite cast iron and digitizing metal formula to ensure the quality of castings. FEM analysis is used to analyze castings and computer is used to calculate and analyze so as to strengthen the design of organization structure, enhance the rib configuration, optimize the casting structure and enhance the rigidity of whole machine.
,"A","","";
"A" type column has bigger span in base to ensure rigidity and stability.
,,,,;
Saddle is wider and thicker to ensure the ability of heavy duty when processing.
,;
In spindle box, rib is reinforced to strengthen the contact surface between spindle box and column and provides great support.
,,,.
All the parts are Germany, Japan and Taiwan imported components to ensure the durability and long-term stability of machine.
THK,,,
Three axes roller ball screw adopt Japanese THK or same level ball screws which use the method of direct connection and pre-stretching to ensure the accuracy of machine.
THK,,,,,.
Three axes adopt Japanese THK or same level linear guideways which have the advantages of small friction, short rapid transit time and high efficiency. And the excellent repeated positioning accuracy can realize the high processing accuracy.
12000rpm,,,,,,.:8000rpm/10000rpm,15000rpm.
It adopts 12000rpm high speed direct-type spindle equipped with spindle oil cooler device to keep spindle in a state of constant temperature. Compared with general spindle, it has the advantages of fast speed, high stability and long working life.
(Optional): 8000rpm/10000rpm belt-type spindle,5000rpm direct-type spindle.
Packing & Delivery
Packing Details : To be packed in wooden cases,suitable for export.
Delivery Details : 25~35 days after receipt of deposit
Specifications
| TYPE | EV640L | |||
| X-AXIS TRAVEL | 600mm | |||
| Y-AXIS TRAVEL | 400mm | |||
| Z-AXIS TRAVEL | 450mm | |||
| Spindle nose to work table | 80-560 | |||
| Spindle center to column | 480 mm | |||
| Table | ||||
| Working Surface | 420×700 mm | |||
| Max. Table Load | 600kg | |||
| T-Slot Size | 18/5 mm | |||
| Spindle Data | ||||
| BT-TYPE | BT-40 | |||
| Spindle Max. Speed | Direct type 12000 rpm(Standard) | |||
| Motor Data | ||||
| SPINDLE Power (kw) | 7.5 kw | |||
| 3-AXIS Power (kw) | X/Y/Z:2.0 kw | |||
| Feedrate | ||||
| G1 F% | 0-10000MM/min | |||
| G0 F% | X/Y:48000 mm/min Z :36000 mm/min | |||
| SUB-SYSTEM SPECIFICATIONS AND OTHER DATA | ||||
| Air Pressure | ≥6 kgf/cm2 | |||
| Net weight | 3800kg | |||
| Floor Space | 2550mm*2450mm*2730mm | |||
| Serial No. | STANDARD CONFIGURATION | ORIGIN | ||
| 1 | FANUC | Japan | ||
| 2 | Inseat Display Unit | Japan | ||
| 3 | Imported BT-40 12000 Rpm | TAIWAN | ||
| 4 | Level C3 Ball Screw | TAIWAN HIWIN/PMI | ||
| 5 | X/Y Linear Guide.Z linear guideway | TAIWAN | ||
| 6 | Spindle Blade Pneumatic Cylinder | TAIWAN | ||
| 7 | Central Auto-Lubrication System | TAIWAN | ||
| 8 | Angled imported ball bearing | Japan NSK | ||
| 9 | Axial Couplings | Japan | ||
| 10 | Operation Panel Unit | TAIWAN | ||
| 11 | Imported MAG Handwheel | Japan | ||
| 12 | Working light | TAIWAN | ||
| 13 | Relay Board | Japan | ||
| 14 | Control Panel Convective Heat Exchanger | TAIWAN | ||
| 15 | Spindle Sided Blowing Devices | TAIWAN | ||
| 16 | Air Pressure Gun and Hydraulic Gun Devices | -YES | ||
| 17 | Horizontal Adjustment Bearer | -YES | ||
| 18 | Technical Manual | -YES | ||
Other model for choice :
| item | unit | EV850L/M | EV1060L/M | EV1270L/M | EV1580 | EV1890 |
| X/Y/Z-axis travel | mm | 800/500/500 | 1000/600/600 | 1200/700/700 | 1500/800/700 | 1800/900/800 |
| Table size | mm | 550*1000 500*1050 | 600*1300 | 700×1360 | 800*1700 | 900*2000 |
| Max. table load | kg | 600 600kg | 1000 | 1400 | 2000 | 2000 |
| BT-Type | BT-40 | BT-40 | BT-40/50 | BT-50(OP40) | BT-50(OP40) | |
| Spindle max. speed | rpm | Belt type 8000rpm(OP10000/12000/15000) | 6000rpm | 6000rpm | ||
| Spindle power | kw | 7.5/11 | 7.5/11(OP 11/15) | 7.5/11(OP 11/15) | 11/15 | 11/15 |
| 3-axis power | kw | X/Y/Z:2.0 | X/Y/Z:3.0 | X/Y/Z:4.0 | X/Y/Z:5.0 | X/Y/Z:7.0 |
| Cutting feed rate | mm/min | 0-10000 | 0-10000 | 0-10000 | 0-8000 | 0-8000 |
| Rapid feed rate | mm/min | L:X/Y:48000 Z :36000 M:X/Y:20000 Z :15000 | L:X/Y:30000 Z :24000 M:X/Y:20000 Z :15000 | L:X/Y/Z :30000 M:X/Y:16000 Z:14000 | X/Y:16000 Z:14000 | X/Y:16000 Z:14000 |
| Net weight | kg | L:6500 M:6000 | 8000 | 9500 | 12000 | 15500 |
| Floor space | mm | L:2700*2500*2730 M:2700*2400*2600 | L:3300*2500*2750 M:3350*2500*2800 | 3700*3000*3000 | 4100*3200*3250 | 4500*3500*3500 |
| NC System | MITSUBISHI M80/SIEMENS 828D(PPU240)8.4''/FANUC 0IMF | |||||
Standard Configuration
1,Total Splash Guard
2,24 Arm Type ATC 24 Tools
3, 12000rpm Direct Type Spindle
4,Cutting Coolant System
5, Automatic Centralized Lubrication System
6, Heat Exchanger for Electric Cabinet
7, Manual Pulse Generator
8,RS232 RS232 Interface
9, Working Light
10, Tricolor Caution Light
11 Basic toolbox
12 Leveling Bolts and Blocks
| Serial No. | STANDARD CONFIGURATION | ORIGIN |
| 1 | Mitsubishi M80B Controller | Japan |
| 2 | Inseat Display Unit | Japan |
| 3 | Imported BT-40 12000 Rpm | TAIWAN |
| 4 | Level C3 Ball Screw | TAIWAN HIWIN/PMI |
| 5 | Three-Axis Flexible Linear rail cover | TAIWAN |
| 6 | Spindle Blade Pneumatic Cylinder | TAIWAN |
| 7 | Central Auto-Lubrication System | TAIWAN |
| 8 | Angled imported ball bearing | Japan NSK |
| 9 | Axial Couplings | Japan |
| 10 | Operation Panel Unit | TAIWAN |
| 11 | Imported MAG Handwheel | Japan |
| 12 | Working light | TAIWAN |
| 13 | Relay Board | Japan |
| 14 | Control Panel Convective Heat Exchanger | TAIWAN |
| 15 | Spindle Sided Blowing Devices | TAIWAN |
| 16 | Air Pressure Gun and Hydraulic Gun Devices | - |
| 17 | Horizontal Adjustment Bearer | - |
| 18 | Technical Manual | - |
:Optional Configuration
1: Spindle Oil Cooler Devices
2: Auto Spiral Type Chip Conveyor
3: Hinge(Scraper) Type Chip Conveyor
4: (10-75Par)) Coolant Through Spindle Device
5: Air Conditioning Device in the Electric Box
6: Auto-measurement System for Tool Length and Diameter
7: Measuring System of Workpiece
8: Non-contact Measuring System of Tool Length and Diameter
9: Full Closed-loop System of the Linear Scale
11: NCRotary Table of the Forth(Fifth) Axis
( Taiwan Top brand DETA 24 arm type tools magazine )
Our Service
1) Quality & Service : We take care of the product quality in order to provide good service to our customers.
2) Price : In order to serve more better to our customer we are always finding the way to reduce the price.
3 )Warranty: One year after shipment,consumables are not included.
About us
Dongguan HiRung Precision Machinery Co., Ltd is a Sino-German joint venture. The company is specialized in producing and selling CNC machining center, CNC lathe machine and automation devices. The sales center of our company is located at Dongguan--the largest manufacturing city in China. The production base is in the hi-tech industrial park of Shaoguan city, the factory covers an area of 100 acres. From the original design to the production of the machine are under strict quality control system, which guarantees that our customers will receive the most stable products.
Now we are expanding our overseas market, in July 2015 we set up branch office in Indonesia, in August 2015 we set up branch office in Bangladesh under our global brand marketing strategy. In 2017 ,we developed gent in Mexico , Currently our company is focused on the business of CNC machine tools and CNC automation tools. Products for export account for 80% of our business. We are dedicated to provide the costumers with good equipment and good after-sales service. Our goal is to make "HIRUNG" CNC machine tools one of China's most professional automation brands.
Serious testing & assemble
Why Choose US
1.Reliable Trademark Company with 12 years machienry experience
2.Gold Member and Audited Suppliers in Made-in-China.
3.Customize Machine according to Customer's Requirement.
4.CE approved and One year warranty, provide whole-life technology support.
5.High quality with competitive price.
6. We supply professional solution to you based on your own process one by one.
7. 7*24 hours Email or phone service.
8.China's best machine,It's not the cheapest,but it's the best!----HIRUNG
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 35 days , it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: NO.
Q: What is your terms of payment ?
A: T/T 30% with the order, the rest 70% of total amount T/T before.
If you have another question, pls feel free to contact us as below:
| Prod Model: | EV640L |
|---|---|
| Material: | Metal |
| Process Usage: | Metal-Cutting CNC Machine Tools |
| Movement Method: | Contour Control |
| Control Method: | Closed-Loop Control |
| Numerical Control: | CNC/MNC |
| Performance Classification: | Economical CNC Machine Tools |
Dongguan Hirung Precision Machinery Co., Ltd is a Sino-German joint venture. The company is specialized in producing and selling CNC machining center, CNC lathe machine and automation devices. The sales center of our company is located at Dongguan city--the largest manufacturing city in China. The production base is in the hi-tech industrial park of Shaoguan city, the factory covers an area of 100 acres. The machines, from the original design to the production, are under strict quality system, which guarantees that our customers will receive the most stable products.
Now we are expanding our overseas market, in July 2015 we set up branch office in Indonesia, in August 2015 we set up branch office in Bangledesh under our global brand marketing strategy. Currently our company is focused on the business of the CNC machine tools and CNC automation tools. Products for export account for 80% of our business. We are dedicated to provide the customers with good equipment and good after-sales service. Our goal is to make Hirung CNC machine tools one of China's most professional automation brands.
Now we are expanding our overseas market, in July 2015 we set up branch office in Indonesia, in August 2015 we set up branch office in Bangledesh under our global brand marketing strategy. Currently our company is focused on the business of the CNC machine tools and CNC automation tools. Products for export account for 80% of our business. We are dedicated to provide the customers with good equipment and good after-sales service. Our goal is to make Hirung CNC machine tools one of China's most professional automation brands.
