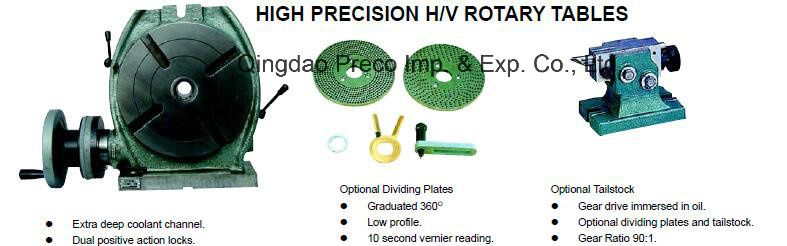

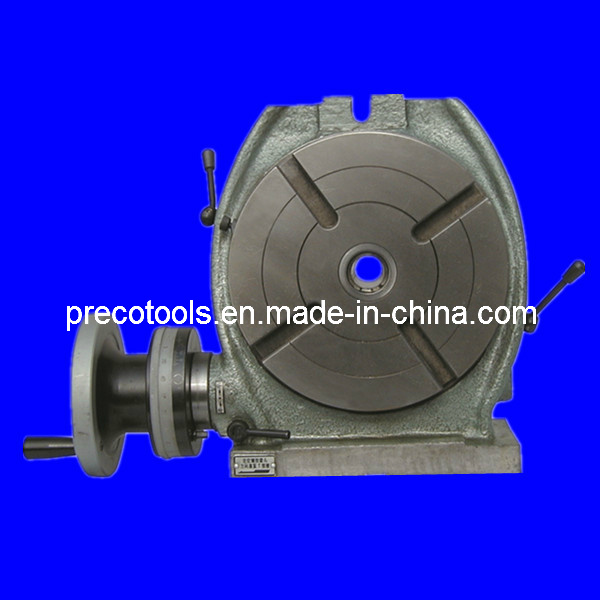

High Precision Horizontal Rotary Tables
| Price: | US $ 390/Piece |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 1/Piece |
| Pay Type: | T/T,Western Union,Paypal,Money Gram |
Supply high quality of Rotary Tables with very competetive prices.
Features:
-Widely used on Milling Machines for indexing, circular cutting, angle setting, boring, spot facing, etc.
-Flange for connecting scroll chuck can be supplied.
-Can accurately divide 360 angle rotation of the clamping surface into divisions of 2 through 66, and all divisible of 2, 3 and 5 from 67 to 132.
Normal Models:
For more details of our products, please kindly visit our website or directly contact us to get the catalog.
Features:
-Widely used on Milling Machines for indexing, circular cutting, angle setting, boring, spot facing, etc.
-Flange for connecting scroll chuck can be supplied.
-Can accurately divide 360 angle rotation of the clamping surface into divisions of 2 through 66, and all divisible of 2, 3 and 5 from 67 to 132.

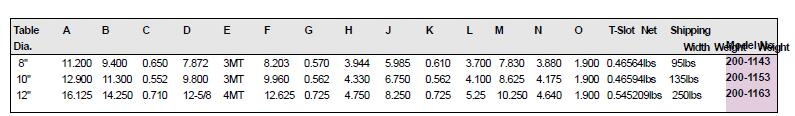

Normal Models:
| Table Dia. (Inch) | 8 | 10 | 12 |
| A | 11.2 | 12.9 | 16.125 |
| B | 9.4 | 11.3 | 14.25 |
| C | 0.65 | 0.552 | 0.071 |
| D | 7.872 | 9.8 | 41037 |
| E | 3MT | 3MT | 4MT |
| F | 8.203 | 9.96 | 12.625 |
| G | 0.57 | 0.562 | 0.725 |
| H | 3.944 | 4.33 | 4.75 |
| J | 5.985 | 6.75 | 8.25 |
| K | 0.61 | 0.562 | 0.725 |
| L | 3.7 | 4.1 | 5.25 |
| M | 7.83 | 8.625 | 10.25 |
| N | 3.88 | 4.175 | 4.64 |
| O | 1.9 | 1.9 | 1.9 |
| T-SlotWith, | 0.46564lbs | 0.46594lbs | 0.545209lbs |
| Net Weight | |||
| Shipping Weight | 95lbs | 135lbs | 250lbs |
| Model No. | 200-1143 | 200-1153 | 200-1163 |
For more details of our products, please kindly visit our website or directly contact us to get the catalog.
| Prod Model: | Horizontal Type |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter Of The Table: | 100mm, 160mm, 200mm, 250mm, 320mm, 400mm |
| Taper Of The Center Hole: | Mt2, Mt3, Mt4 |
| Delivery: | 20 Days |
| Logo Printing: | Without Logo Printing |
| Size: | Middle |
| Customized: | Non-Customized |
