High Precision Vibration Vibration Isolation Optical Tables
| Price: | Negotiable/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | T/T,Western Union,Paypal |

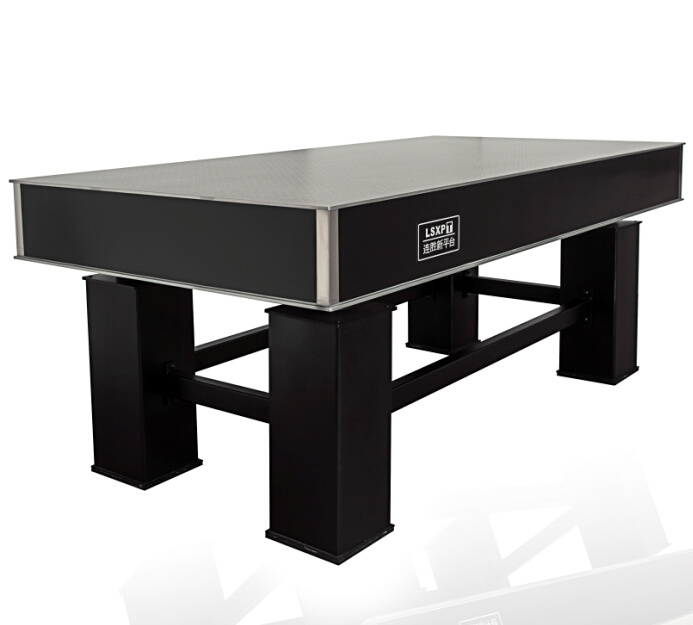

Solid Vibration Damping Optical Table POT-G Series
Production Features:

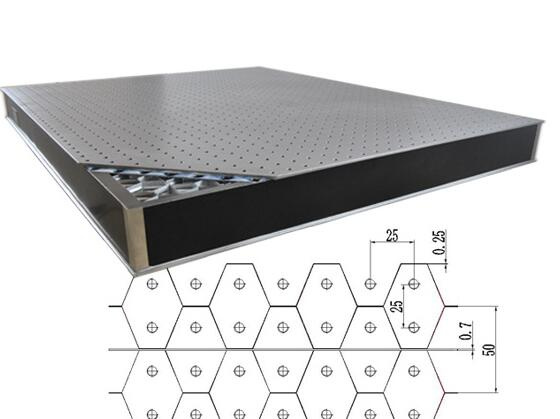

Breadboard:
- High Density Honeycomb Core Structure
- Surface Roughness: 0.8-1.6μm
- Flatness/Unevenness: 0.02-0.05mm/square meters
- Inherent Frequency: 4-6Hz
- Amplitude: <2μm
- Mounting Holes: M6 tapped holes on 25mm grid. Hole to edge 12.5mm or 37.5mm.
- Top Skin: 5mm Bottom Skin: 4mm
- Material: Stainless Steel.
Isolators:
The support system (Isolators) adopts compound solid vibration damping material with compact built and no demand for maintenance and adjustment.
- Height: standard height 800mm or as user preferred.
- Vertical Isolation, 5Hz: 86%
- Horizontal Isolation, 5Hz:82%
- Vertical Isolation, Res: 4-6Hz
- Vertical Isolation, 10Hz:90%
- Horizontal Isolation, Res: 6-8Hz
Application:
Applicable for experiments that carried out in good vibration environment and general optical utilization.
Customized dimension of POT-G optical tables are available on request.
Production Features:
Breadboard:
- High Density Honeycomb Core Structure
- Surface Roughness: 0.8-1.6μm
- Flatness/Unevenness: 0.02-0.05mm/square meters
- Inherent Frequency: 4-6Hz
- Amplitude: <2μm
- Mounting Holes: M6 tapped holes on 25mm grid. Hole to edge 12.5mm or 37.5mm.
- Top Skin: 5mm Bottom Skin: 4mm
- Material: Stainless Steel.
Isolators:
The support system (Isolators) adopts compound solid vibration damping material with compact built and no demand for maintenance and adjustment.
- Height: standard height 800mm or as user preferred.
- Vertical Isolation, 5Hz: 86%
- Horizontal Isolation, 5Hz:82%
- Vertical Isolation, Res: 4-6Hz
- Vertical Isolation, 10Hz:90%
- Horizontal Isolation, Res: 6-8Hz
Application:
Applicable for experiments that carried out in good vibration environment and general optical utilization.
Customized dimension of POT-G optical tables are available on request.
| Prod Model: | POT-G10-08 |
|---|---|
| Inherent Frequency: | 4-8Hz, Vertically; 2-4 Hz, Horizontally |
| Vibration Isolation Structure: | Compound Rubber Pads and Hollow Cone Rubber Struct |
| Levelling Type: | Manual |
| Table Height: | 800mm or Customized |
| Breadboard Surface Roughness: | Less Than 0.05mm Per Square Meters |
| Isolator Height Adjustment Range: | 20mm |
| Table Top Core Structure: | Honerycomb Core |
| Top Plate Material: | 430 Stainless Steel |
| Dimension: | 1000X800X800mm |
| Optical Breadboard Thickness: | 100mm |
