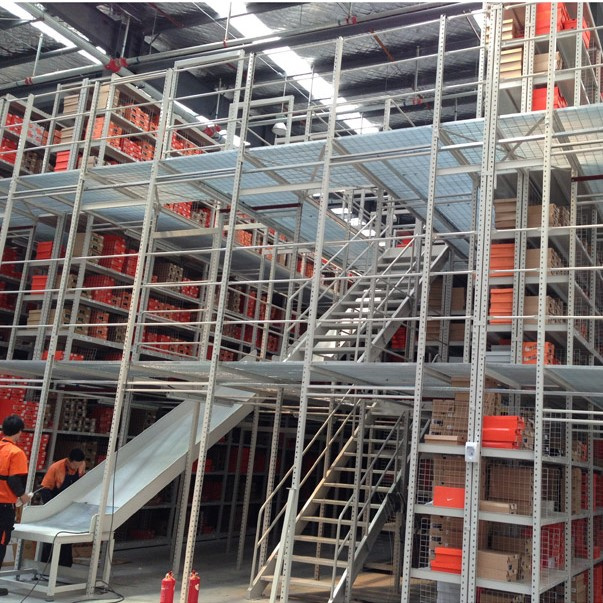

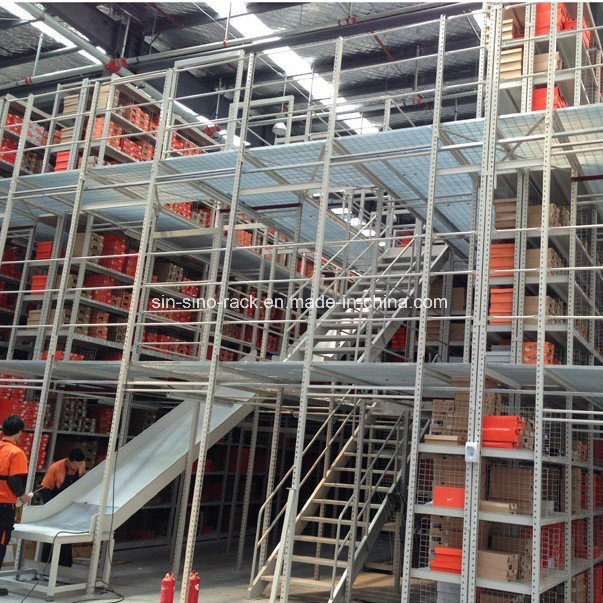

High Quality Multi-Tier Shelving Mezzanine Rack
| Price: | US $ 1/Ton |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 10/Ton |
| Pay Type: | L/C,T/T,Western Union |
High Quality Multi-Tier Racking(55&60 Style)
55 Style Column Type Shelving
The modular medium rack which has special design, proper structure, and without any screw and connector for the 25-400kg per layer. It is being widely usec enterprises. This product is the level of international standard, the height could be adjusted easily by 50mm distance.
Steel decking type A 40mm high.
Rolled panel type B 40mm high.
Steel decking type C 50mm high.
Standard specifications of 55 Style Column Type Shelving
Upright:55*55*1.5/1.8t
| Type Length * Width (mm) | Height (mm) | Load Capacity kg/Level |
| 900*450 | <=2400(2beam) >2400(3beam) | 350 |
| 900*600 | 350 | |
| 1000*450 | 300 | |
| 1000*600 | 300 | |
| 1200*450+1 | 250 | |
| 1200*600+2 | 300 | |
| 1500*450+1 | 200 | |
| 1500*600+2 | 300 | |
| 1800*450+2 | 200 | |
| 1800*600+2 | 200 | |
| Surtace Treatment: static powder paint coating/RAL7047 Color: Customizated | ||
60 Style Longspan Shelving
The structure is inserting connected by frame and beam. The beam can be adjusted by 50mm distance for heavy loading and rack with long bays, normally with 300-800kg per layer. The layer can be used by steel. Paring, fiber, or wood.
Standard Specifications of 60 Style Longspan Shelving
| Depth of Frame(mm) | Height of Frame(mm) | Length of beam(mm) |
| 400 | 1800 | 800 |
| 450 | 2000 | 1000 |
| 500 | 2500 | 1200 |
| 600 | 3000 | 1500 |
| 700 | 3500 | 1800 |
| 800 | 4000 | 2000 |
| 900 | 4500 | 2300 |
| 1000 | 5000 | 2500 |
| Surtace Treatment: Static powder paint coating Color:Customized | ||
Beam specifications
| P Step Beam | C Channel | RHS Beam |
| 50*30*25 | 50*30*25 | 50*30 |
| 60*40*28 | 64*35*37 | 60*40 |
| 80*50*28 | 80*40 |
60 Style Capacity
| Beam L Specifications | 1500 | 1800 | 2000 | 2300 | 2500 | 2700 |
| 50*30*1.5 P Style Beam | 330 | 230 | 180 | 140 | 110 | 90 |
| 60*40*1.5 P Style Beam | 660 | 460 | 370 | 280 | 230 | 200 |
| 50*30*1.5 P RHS Beam | 430 | 300 | 240 | 180 | 150 | 125 |
| 60*40*1.5 P RHS Beam | 770 | 530 | 430 | 330 | 280 | 240 |
| 80*40*2.0 RHS Beam | 1800 | 1200 | 1050 | 950 | 800 | 690 |
For quick quotation, it will be better if following info could be provided.
1. Required Pallet Racking Dimension: Height*Depth*Length?
2. Number of Levels?
3. Loading Capacity of each level?
4. Racking Quantity?
(No mimimum limit for our proudction, but to keep the most economical shipping costs
as general, we suggest our clients order quantity fitting 20ft or 40ft containers.)
5. If you are not very sure of above info, please just let us know your storage needs. Accordingly, we'll be
happy to provide with our professional proposed racking solutions for your kind reference.

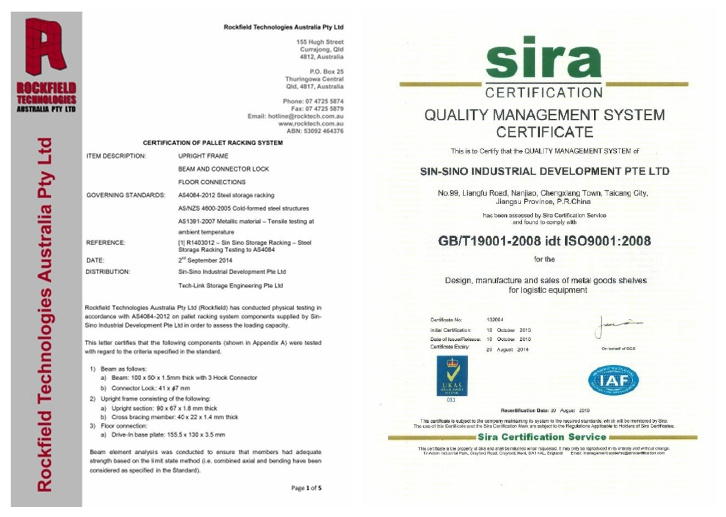

Certificaties:
Frequently Asked Question
1.What makes you different with others?
1) Our Excellent Service for a quick, no hassle quote just send email to us. We promise to reply with a price within 24 hours - sometimes even within the hour.If you need an advice, just call our export office at 0086-512-53836950, we will answer your questions immediately.
2)Our quick manufacturing time for Normal orders, we will promise to produce within 15 days.
As a manufactory, we can essure the delivery time according to the formal contract.
3)Our Special Export Design that We pay very much attention to the export packages. We have plastic clips on the beams to protect the beams from surface damage in the transportation, We have got the whole uprights wrapped with transparent plastic film.
4) Our Warranty TimeThe High Standards in the Design and Manufacturing ensure us to support the products with a 10-Year Warranty Time for your normal use, it is the Longest Manufacturer's Warranty !
2. What is delivery times?
This depends on the product. Typically standard products are delivered within 15 days. The delivery time of the special products is according to the time of setting up of the tooling.
3.What is the term of payment?
1) T/T payment.
2) LC
4. May I know the status of my order?
Yes .We will send you information and photos at different production stage of your order. You will get the latest information in time.
5. Are samples available?
Yes, we can send some sections of samples for your reference by express.
About Us

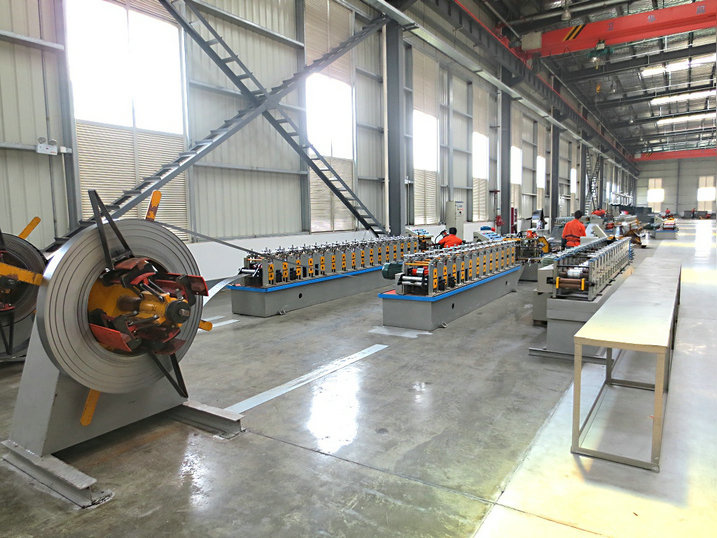

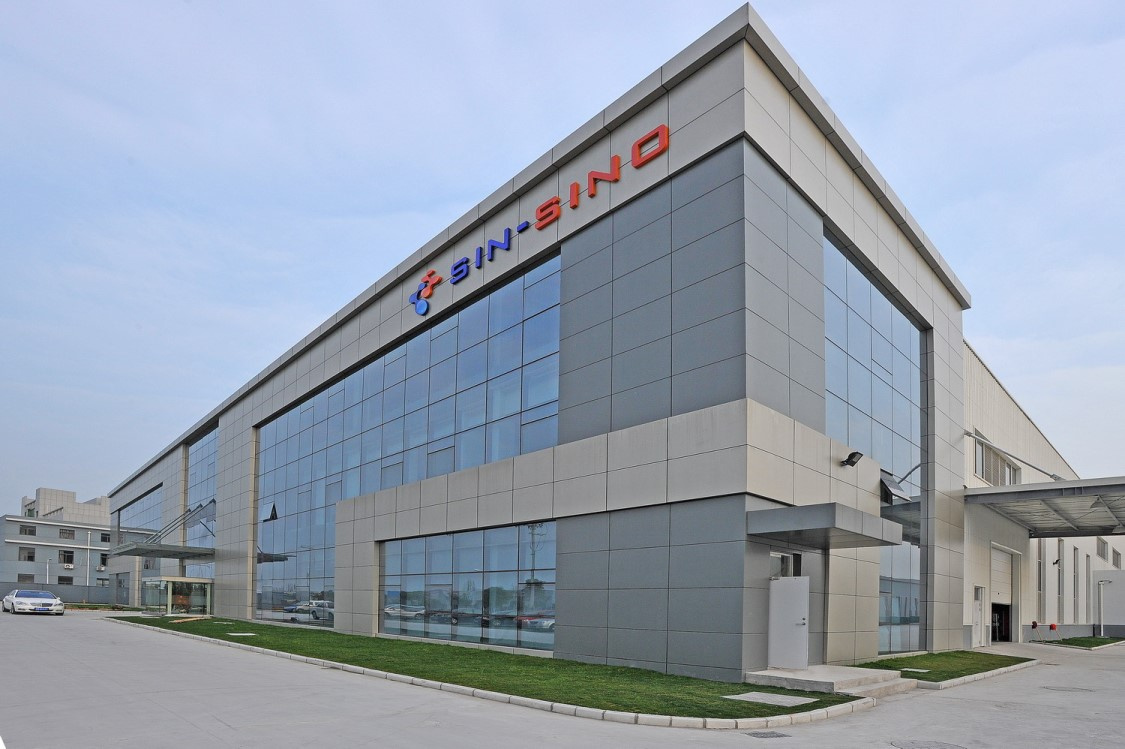

Sin-Sino United was incorporated inTai Cang, Jiangsu province RPC in 2011. Sin-Sino United State-of-the-art factory is locted at Tai Cang New Industrial park, site area 63,000 sq meter with a total invesment of USD100 million.
Our principal activity is surrounding the value chain of procurement, manufacturing and marketing of storage, distribution and material handling systems and products. We investigate, analyse, design, manufacture supply and implement solutions.
Sin-Sino United employs top industry sales consultants, engineers, specialised designers, project managers and installers to enable supply of effective systems that satify end user and distirbutor needs. Our continuous inprovement programmes ensure that the most up-yo-date products and systems are available for supply to distributors and end users. We provide a 24 hours per day, 365 days per year, on site service to ensure to customer and material handling system down time is minimised and their invesment are protected and cost minimised.
Our Mission
To strive for innovation and serive leadership and exceed our customer expectations by being a learning organization that is self critical and is never satified with yesterdays Innovation and service.To develop better products and systems, whilst increasing quality and performance and reducing costs.
Sin-Sino United looks forwards to being part of your success!
| Prod Model: | MR |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: | ISO9001, As4084, CE, SGS |
| Surface Treatment: | Powder Coating |
| Technical Standard: | As4084,Fem |
| Color: | Customized |
| Warranty Time: | 10 Years |
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Fixed |
| Height: | 5-15m |
| Closed: | Open |
| Development: | Conventional |
| Serviceability: | Common Use |
| Weight: | 5000kg/Layer |
