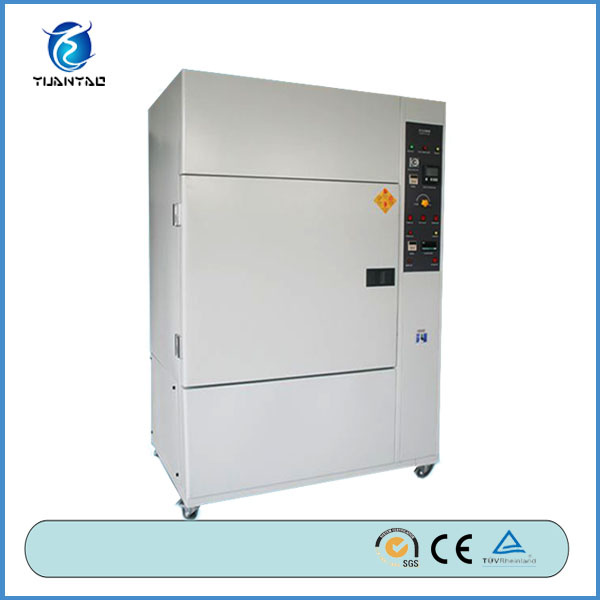

High Quality Rubber Air Ventilation Aging Test Cabinet
| Price: | US $ 2000-15000/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
High quality rubber air ventilation aging test cabinet for rubber
Air ventilation aging test cabinet simulates the environment of high temperature atmospheric pressure environment, which is used to heat resistance test for electrical insulation, ventilation aging test of electronic parts, plasticizing product, treatment of mandatory ventilation, etc.
Features
1 Stainless steel SUS#304 made, easy setting operation.
2 Wing diffusion supply air circulation system, fresh air ventilation can be arbitrary adjustment.
3 Internal rotary free dismantling, suspension frame motor speed is 8-10 rpm.
4 Ventilation measurement function.
5 Optional accessories( Temp. Recorder, calibrated rack for 9 points calibration)
6 Best after sales service: One year free parts maintenance.
7 Meet international test standards.
8 Customization is available & welcomed.
Technical parameters
| Specification | |||
| 1Model | YTAT-101 | YTAT-216 | |
| Internal Dim.W×H×D(mm) | 450×500×450 | 600×600×600 | |
| External Dim.W×H×D(mm) | 1180×1350×750 | 1330×1450×900 | |
| Temp Range | Room temp +10ºC--300ºC | ||
| Features | Temp Constancy | ±0.5ºC | |
| Temp Uniformity | ±2ºC -- ±3ºC | ||
| lndication Resolution | ±0.1ºC | ||
| Heat-up Time(min) | 30 | 40 | |
| Material | Exterior | Stainless steel plate + Powder Coated | |
| Interior | SUS # 304 stainless steel piate | ||
| Insulation | Fiberglass wool | ||
| Systems | Circulation | siroco fan | |
| Heating | Chrome steel strip wire heater | ||
| Control | PID electronic digital control+S.C.R | ||
| Other Components | Vacuum glass observation window lighting,environmental control indicator lights | ||
| Experiment separation shelves,rotation experiment pams,ventilation adjusment mechanism | |||
| Airch ang Rate | 5 -- 200 (3 --250)times/per hour | ||
| Sefety Devices | Overheating prevention circuit-breaket,control systen,breakdown indicator right | ||
| Power Source[K.W.] | AC 1Ψ 220V;60/50Hz | ||
| 7 | 10 | ||
| Comply with ASTM D2436, JIS K7212, DIN 50011, BS 2648, IEC-540. | |||
| Air Change Rate for Standards | |||
| Standards | Air Change Rate | ||
| JIS-K212, JIS-K6723 JIS-A5756, JIS-C3004 JIS-C3005, JIS-K6301 | up 1 time/hr | ||
| ASTM-D2436, ASTM-D573 ASTM-5374, ASTM-D5423-93 | 100-200 times/hr | ||
| UL-746B | 100-200 times/hr | ||
| UL-1581.62.444 | 5-250 times/hr | ||
| ISO/DIS 4577 | 1 time/hr | ||
| BS-6746 | 8-20 times/hr | ||
| BS-903 | 8-20 times/hr | ||
| IEC-540 | 8-19 times/hr | ||
Except air ventilation aging test cabinet, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:
1) Temperature/ humidity test series: Temperature humidity test chamber, Walk in environmental room, Thermal shock test chamber, High altitude low pressure simulation test chamber
2) Aging test series: Hot air oven, Vacuum drying oven, Air ventilation aging test chamber, Steam aging test chamber, Ozone resistance test chamber, Burn in test equipment
3) Weather simulation tes series: Rain spray test chamber, dust test chamber, Xenon lamp aging test chamber, UV test chamer
4) Mechanical test series: High frequency vibration test machine, drop test machine , Glue dispensing machine etc.
Welcome to enquire and purchase!
| Prod Model: | YTAT-216 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inner Size: | 600*6500*600mm |
| Application: | Rubber/Plastic Aging Test |
| Air Change Rate: | 5 to 200 Times/Hour |
| Temp. Range: | 10 Degrees---300degrees |
| Heat Up Time: | 30min |
| Temp. Fluctuation: | +/-0.5 Degree |
| Humidity Fluctuation: | +/-0.5%Rh |
| Color: | Ivory or Other |
| Interior Chamber Material: | SUS#304 Stainless Steel Plate |
| Exterior Chamber Material: | Stainless Steel Plate + Powder Coated |
| Type: | Material Testing Machine |
| Weight: | 100-500Kg |
| Power Source: | AC380V |
| Maxcapacity: | N/a |
| Load Way: | N/a |
| Loading Method: | N/a |
| Control: | Controller |
| Oil Cylinder Position: | N/a |
