Beijing Finen Electronic Equipment Co., Ltd. >> High Quality Safety Network / Server Cabinet Data Rack Cabinet with Lock

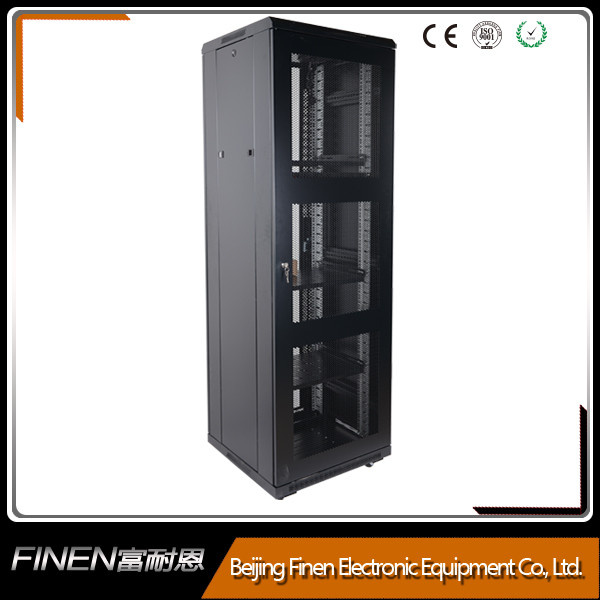

High Quality Safety Network / Server Cabinet Data Rack Cabinet with Lock
| Price: | US $ 137/Piece |
|---|---|
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
High quality safety Network / server cabinet data rack cabinet with lock
Specification:
| Basic Information | |
| 1) Standard | Complies with ANSI/EIA RS-31O-D, IEC297-2, DIN41491: PART1, DIN41494: PART7,GB/T3047.2-92, ETSI Standard |
| 2) Material | SPCC high-quality cold rolled steel |
| 3) Thickness | Mounting profile 2.0mm Others 1.0mm |
| 4) Surface Finish | Degreasing, Pickling, Phosphating, Powder coating |
| 5) Protection Degree | IP20 |
| 6) Loading Capacity | 800kgs(=1763lbs) |
| 7) Color | Optional: Black(RAL9004) White(RAL7035) Grey(RAL7032) |
| Features | |
| 2 Sets of adjustable mounting rails(Zinc Plated) Cage nut style mounting rails Removable/lockable side panels Top and Bottom removable cable slots Glass front door/Vented Rear door Specifications Width - 23.62 Inches (600mm), 31.50 Inches (800mm) Depth - 23.62 Inches (600mm), 31.50 Inches (800mm),39.37 Inches (1000mm) Rail Width - 19 inch EIA Compliant Advantage 1.Secure,firm and reliable 2. Easy to maintain equipment 3. Two Packing Ways: 1).Assembly packing to save labour cost, ready to resell or use 2).Disassembly packing to save space and transport cost, easy to assemble 4.Certification: ISO 9001:2000 5. OEM/ODM service available Recommended options Fan assembly kit PDU Racks Screws,Cage nuts Plastic/Metal Cable management Shelves | |
Cabinet Structure

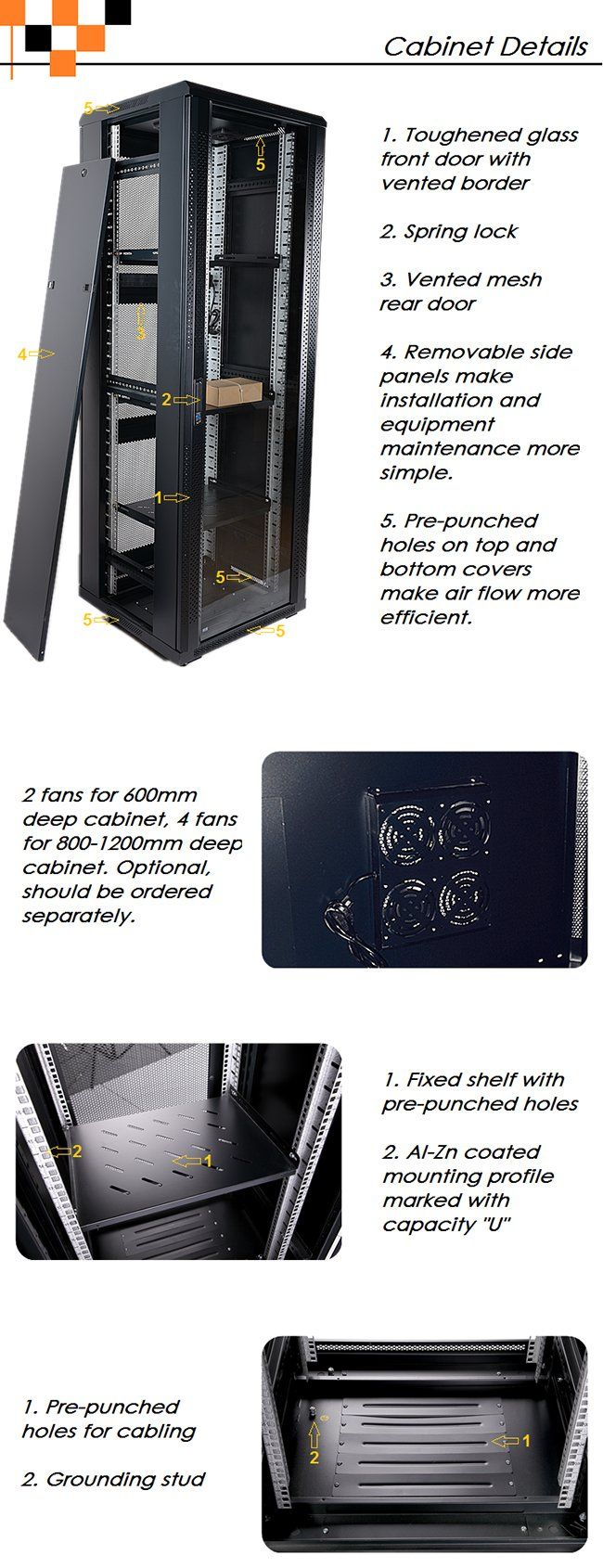

Cabinet Details
Specification
| Model No.: | as |
|---|---|
| Product Name: | Server Rack |
| Installation Type: | Vertical |
| Optional Color: | Black,Gray,White |
| Feature: | Floor Standing Server Rack |
| Width: | 600/800mm |
| Depth: | 600-1200mm |
| Surface Finish: | Powder Coating |
| Material: | SPCC Cold Rolled Steel |
| Type: | Network Cabinet |
| Usage: | Wireless Monitoring System |
| Installation: | Vertical |
| Certification: | RoHS |
| Condition: | New |
| Fan Number: | Optional |
| Capacity: | 18u-42u |
Beijing Finen Electronic Equipment Co., Ltd. Is located in industrial park of Pinggu district, Beijing. We are superior in geographic location and convenient transportation. Finen is a company with the whole line of designing, producing, selling and trading a standard series of products while continually making strides in new product development. Our tenet is "quality first, credit standing paramountcy". Welcome the clients at home and abroad to negotiate and cooperate with us.
We have excellent environment, about more than 3, 000 square meter standard production workshops and about 400 employees. Senior technical staff members are over 65 percent. The laser cutter is imported From German TRUMPF Company, AMADA CNC Press Brake, CNC punching machine and so on. We have automatic powder spraying equipment. All of processes are automation finished in airtight spray powder line.
Our product are widely adopted to the database of computer net, communication net, spaceflight and aviation, computer field, colligate thread and output electric of equipment, broadcast and TV, received series, automatism control, manpower control, monitor series, etc. Finen establishes a home & overseas sales system and earns prestige from consumers.
Our product: Network cabinet, sever rack, control console, TV screen wall, APC (structure) cabinet, (structure) cabinet, (structure) cabinet, distribution box, security equipment and so on.
