Price: | US $ 20000-30000/Piece |
---|---|
Min Order: | 1/Piece |
Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
Prod Model: | CK-40L |
---|---|
Max.Swing Over Bed: | 400mm |
Max.Swing Over Slide: | 220mm |
Max. Processing Length: | 450mm |
X Axis Travel: | 210mm |
Z Axis Travel: | 450mm |
Chunk: | 200(8'') |
Spindle Motor Power: | 3.7/5.5kw (Servo) |
N.W: | 2700kg |
Controller: | Siemens(Standard), Fanuc, Knd, GSK (Optional) |
Tailstock Sleeve Taper: | Mt4 |
Process Usage: | Metal-Forming CNC Machine Tools |
Movement Method: | Linear Control |
Control Method: | Closed-Loop Control |
Numerical Control: | CNC/MNC |
Performance Classification: | Economical CNC Machine Tools |
Product Name | CK-40L |
Max.swing over bed | 400mm |
X axis travel | 210mm |
Y axis travel | 450mm |
N.W | 2700kg |
chunk | 200(8'') |
Spindle Motor power | 3.7/5.5KW (servo) |
controller | SIEMENS(standard), FANUC, KND, GSK (optional) |
Our Service

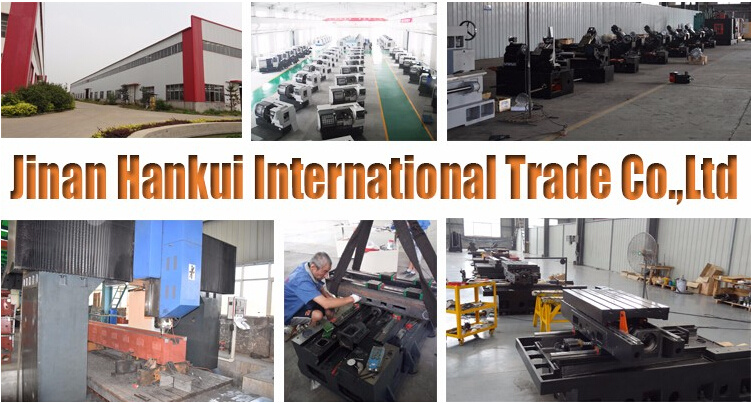

Our Company
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep your business running.
Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.OEM is acceptable
Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.
Q: What sales terms do you have?
A:T/T, L/C,West Union.
Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,
Q: Once machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.
Q: What do I need to offload my machine from the container?
A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.
Q: What kind of controls/Parts do you use on your machines?
A: AMS, OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD
Q: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.
Q: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
