Huanghua Faithful Instrument Co., Ltd. >> Horizontal Type Laminar Flow Cabinet
Horizontal Type Laminar Flow Cabinet
| Price: | US $ 635-1250/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |

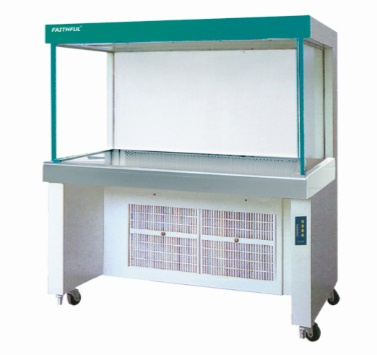

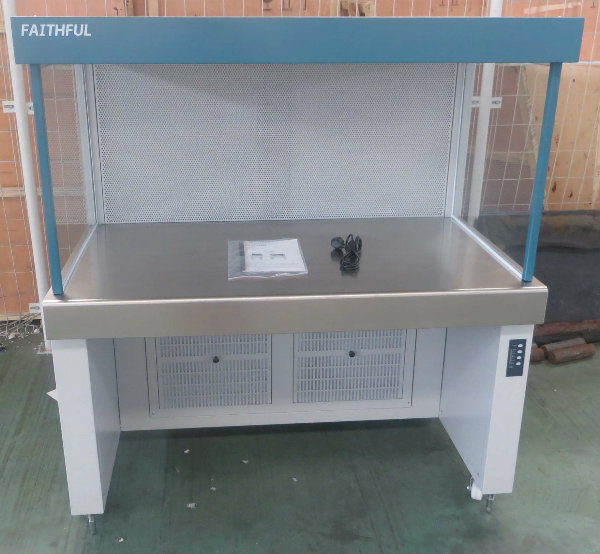

Horizontal Type Laminar Flow Cabinet (HS840, HS1300)
Uses:
Laminar Flow Cabinet is widely used in the field of electron, national defense, precise instrument, meter, pharmacy and chemical experiment etc.
Characteristics:
1. Horizontal laminar flow, open bench board.
2. Stainless steel bench board and tempered glass side-boar; Slim filter without division-plate.
3. Pre-filtering blowing rate is freely adjustable.
Uses:
Laminar Flow Cabinet is widely used in the field of electron, national defense, precise instrument, meter, pharmacy and chemical experiment etc.
Characteristics:
1. Horizontal laminar flow, open bench board.
2. Stainless steel bench board and tempered glass side-boar; Slim filter without division-plate.
3. Pre-filtering blowing rate is freely adjustable.
| Model | HS840 | HS1300 | |
| Applicable Station | one person one side | two persons one side | |
| Airflow Direction | Horizontal | ||
| Function | Cleanliness | Class 100 | |
| Collection Efficiency | ≥99.9% of 0.5um particle | ||
| Colony Count | ≤0.5/vessel (petri dish is φ90mm ) | ||
| Wind Speed | initial:0.6(m/s), final:0.2 (m/s) | ||
| Wind Speed Range | 0.2-0.6 (m/s) | ||
| Noise Level | ≤62db | ||
| Vibration Semi-Peak Value | ≤3um | ||
| Illumination Intensity (Lx) | ≥300LX(Activity Center) | ||
| Work Surface Bearing | 50kg | ||
| Composition | Inner Chamber | Stainless steel plate | |
| Outer Shell | Cold rolling steel electrostatic spraying exterior | ||
| Operation door | No | ||
| HEPA Filter(mm) | 760*610*50 one piece | 610*610*50 two pieces | |
| Pre-Filter (mm) | 760*610*5 one piece | 610*610*5 two pieces | |
| Fluorescent Lamp | 20W*1 | 30W*1 | |
| UV Lamp | 20W*1 | 30W*1 | |
| Bottom Fan | 300W one piece | 300W two pieces | |
| Controller | Display | LED | |
| Wind Speed Control | Intelligent multi-level adjustable | ||
| Additional Function | The bottom horizontal adjustment, one key to open and close lighting sterilization | ||
| Specification | Inner Size (W*L*H)(mm) | 660*650*570 | 1210*660*570 |
| Exterior Size (W*L*H)(mm) | 840*825*1340 | 1300*810*1440 | |
| Packing Size (W*L*H)(mm) | 1040*1020*1620 | 1460*990*1570 | |
| Max Power | 0.4kW | 0.8kW | |
| Current Rating(50/60Hz) | AC220V/1.8A | AC220V/3.6A | |
| NW/GW kg | 120/170 | 170/235 | |
| Prod Model: | HS840, HS1300 |
|---|---|
| Style: | Horizontal |
| Advantage: | Without Noise |
| Warranty: | 1 Year |
| Type: | Separation Type |

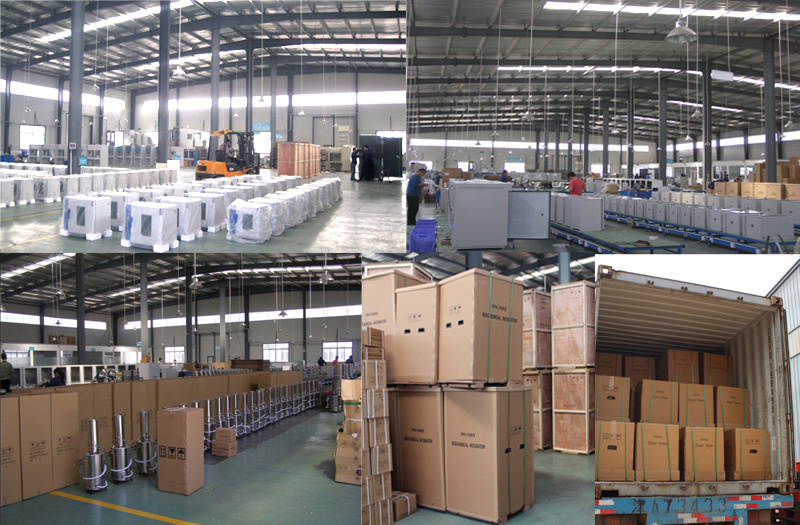

Huanghua Faithful Instrument Co., Ltd, founded in 90s and located in coastal city-HuangHua, our factory covered 40, 000 square meters, with more than 200 employees. Huanghua Faithful Instrument Co., Ltd is a specialized supplier of scientific and laboratory instruments. Faithful has established enviable reputation for its ability to design and manufacture high quality products, now we are dedicated to developing and manufacturing instruments as well as distributing world-renowned products and offering unmatched scientific performance and proven value.
