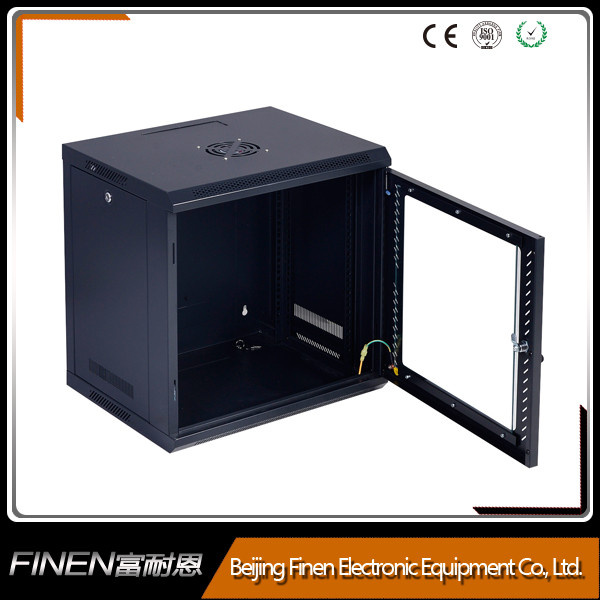

Hot Sale 9u Wall Mountable Network Cabinet

Hot Sale 9u Wall Mountable Network Cabinet
Price: US $ 28-45/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: WL
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rack Unit: 4u,6u,9u,12u,15u,18u
Loading Capacity: 60kg(132lbs)
Width: 550mm,600mm
Depth: 450mm,600mm
Color Options: Black,Gray,White
Front Door: Toughened Glass and Removable
Side Panel: Removable
Certificate: ISO
Service: OEM
Type: Network Cabinet
Fan Number: One
Usage: Network Integration System
Certification: RoHS
Installation: Wall-Mounted Cabinet
Condition: New
Capacity: 4u,6u,9u,12u,15u,18u

Product Description

1). 20 year's production experience.
2). Certificate: ISO9001.
3). Quick delivery(7-14 days)
4). OEM service

Product information:

1). Industry Standard: Complies with ANSI/EIA RS-31O-D, IEC297-2, DIN41491: PART1, DIN41494: PART7, GB/T3047.2-92,; ETSI Standard
2). Capacity/Rack Units: 4U, 6U, 9U, 12U
3). Loading Capacity: 60kgs(132lbs)
4). Materials: SPCC high-quality cold rolled steel
5). Thickness:
Mounting profiles: 2.0mm;
Mounting rails: 1.5mm;
Other enclosures: 1.2mm
6). Cooling Fan: Two/Four optional 120mm AC cooling fans
7). Side panels: Removable with Easy Handy Latches or locks
8). Doors: Toughened glass front and solid rear doors with round lock
9). Colors: Black-RAL9004; White-RAL7035; Grey-RAL7032
10). Surface Finish: Degreasing, Pickling, Phosphating, powder coating

Features:

1). Zinc Plated mounting profile
2). Meet IP20 Protection Grade
3). Secure, firm and reliable
4). Excellent Air Ventilation Design with AC 120mm Cooling Fans
5). Three Ways, Top, Bottom, and Rear Cabling Tunnels
6). Easy to install and maintain
6). Certification: ISO 9001: 2000
7). OEM service availale

Applications:

Rack cabinets for Information Technology and telecommunication appliances use:
Small, Medium and Large Servers
DVR, Security Equipment and Routers
Patch Panels and Switches
Telephone Systems and PABX
Network and Communications Equipment
UPS Equipment
Other Rack Mount Equipment

Recommend Products
FINEN-A2 Series Toughened glass front door and solid rear door with round locks
FINEN-AS Series Toughend glass front door with air holes on door stripe, vented mesh rear door, handle locks
FINEN-A3 Series Vented mesh front and rear doors with hanle lock
FINEN-K3 Series Hexagonal mesh front and rear doors with moon locks
We are always developing the new design according to customer demands.

Who are we?

1. A manufacturer of server rack and network cabinet with 25 years experience
2. Around 100 skilled engineers and more than 800 workers
3.35000 square meters workshop
4. Customizing services, OEM services, etc.

All you need to do - take it out of the box and start installing your hardware.
Designed and made from high quality steel, this Rack Cabinet has all the features you need to get your network up and running - FAST! ! !
All Rack Cabinets we manufacture, are built around universal 19" Rack-mount standards - designed to take Rack Mount equipment from other Vendors
Cabinet Package Contents
No.Component nameQuantityUnitMaterialRemark
1Top Cover1pcSPCC cold rolled steel T1.0
2Fan1pc---With 1 fan or without
3Mounting Profile4pcZinc plated  T2.0
4Mounting angle6pcSPCC  T1.22pcs
5Frame2pcSPCC  T1.2
6Lock2pcs---Round lock
7Front Door1pcSPCC  T1.2Tempered glass door
9Side Panel2pcsSPCC  T1.0Removable
10Bottom Panel1pcSPCC  T1.0
11Screw20pcs---20pcs
12Cage nut20pcs---20pcs
13Keys1set

14Shelf1pscSPCC  T1.0
15Other components are available according to request
Specification of FINEN WL Series
Model No.Capacity(U)Width(mm)Depth(mm)
WL-455454550450
550600
WL-655456550450
550600
WL-955459550450
550600
WL-12554512550450
550600
WL-15554515550450
WL-18554518550600

Beijing Finen Electronic Equipment Co., Ltd. Is located in industrial park of Pinggu district, Beijing. We are superior in geographic location and convenient transportation. Finen is a company with the whole line of designing, producing, selling and trading a standard series of products while continually making strides in new product development. Our tenet is "quality first, credit standing paramountcy". Welcome the clients at home and abroad to negotiate and cooperate with us.

We have excellent environment, about more than 3, 000 square meter standard production workshops and about 400 employees. Senior technical staff members are over 65 percent. The laser cutter is imported From German TRUMPF Company, AMADA CNC Press Brake, CNC punching machine and so on. We have automatic powder spraying equipment. All of processes are automation finished in airtight spray powder line.

Our product are widely adopted to the database of computer net, communication net, spaceflight and aviation, computer field, colligate thread and output electric of equipment, broadcast and TV, received series, automatism control, manpower control, monitor series, etc. Finen establishes a home & overseas sales system and earns prestige from consumers.

Our product: Network cabinet, sever rack, control console, TV screen wall, APC (structure) cabinet, (structure) cabinet, (structure) cabinet, distribution box, security equipment and so on.

Based on the advantaged experience and methods of management in developed countries, we have own better methods of management.

Depending on updated scientific management, advanced process design and strict examination measurements, we manufacture excelsior products and welcome all of you for cooperation.
