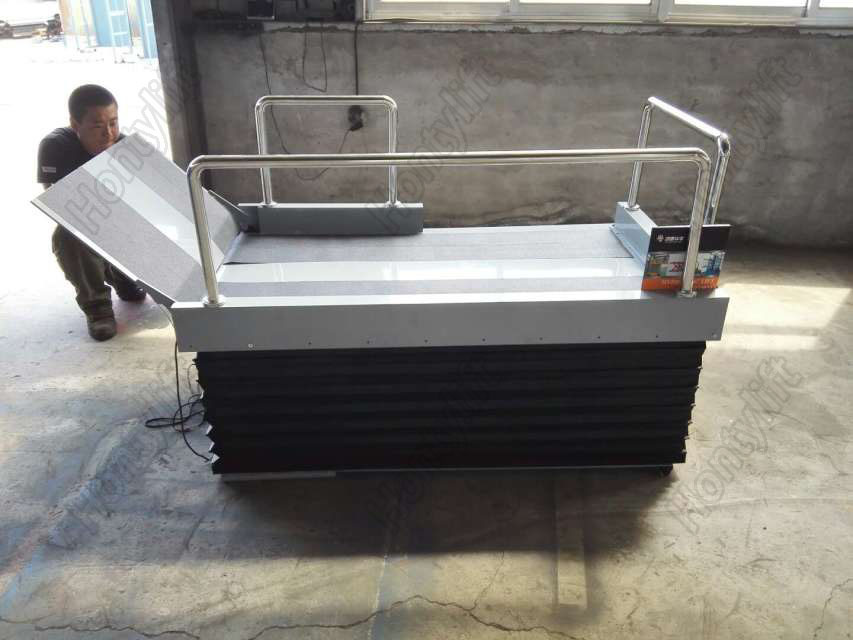

Hot-Sale Home Wheel Chair Lift Table
| Price: |
US $ 2050-5060/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
HTVL |
| Remote Control: |
Optional |
| Rated Loading Capacity: |
250kg |
| Emergency Stop: |
Manual Emergency Stop Valve |
| Control System: |
Both on The Platform and Ground |
| Enter Or Exit Direction: |
90° or 180° |
| Material: |
Spraying Plastics |
| Platform: |
Anti-Skid |
| Application: |
Railway Station, Shopping Mall |
| Carrying Capacity: |
Weight Level |
| Driven Type: |
AC |
| Running Mode: |
Stationary |
| Feature: |
Portable, Stable, Safe |
Product Description

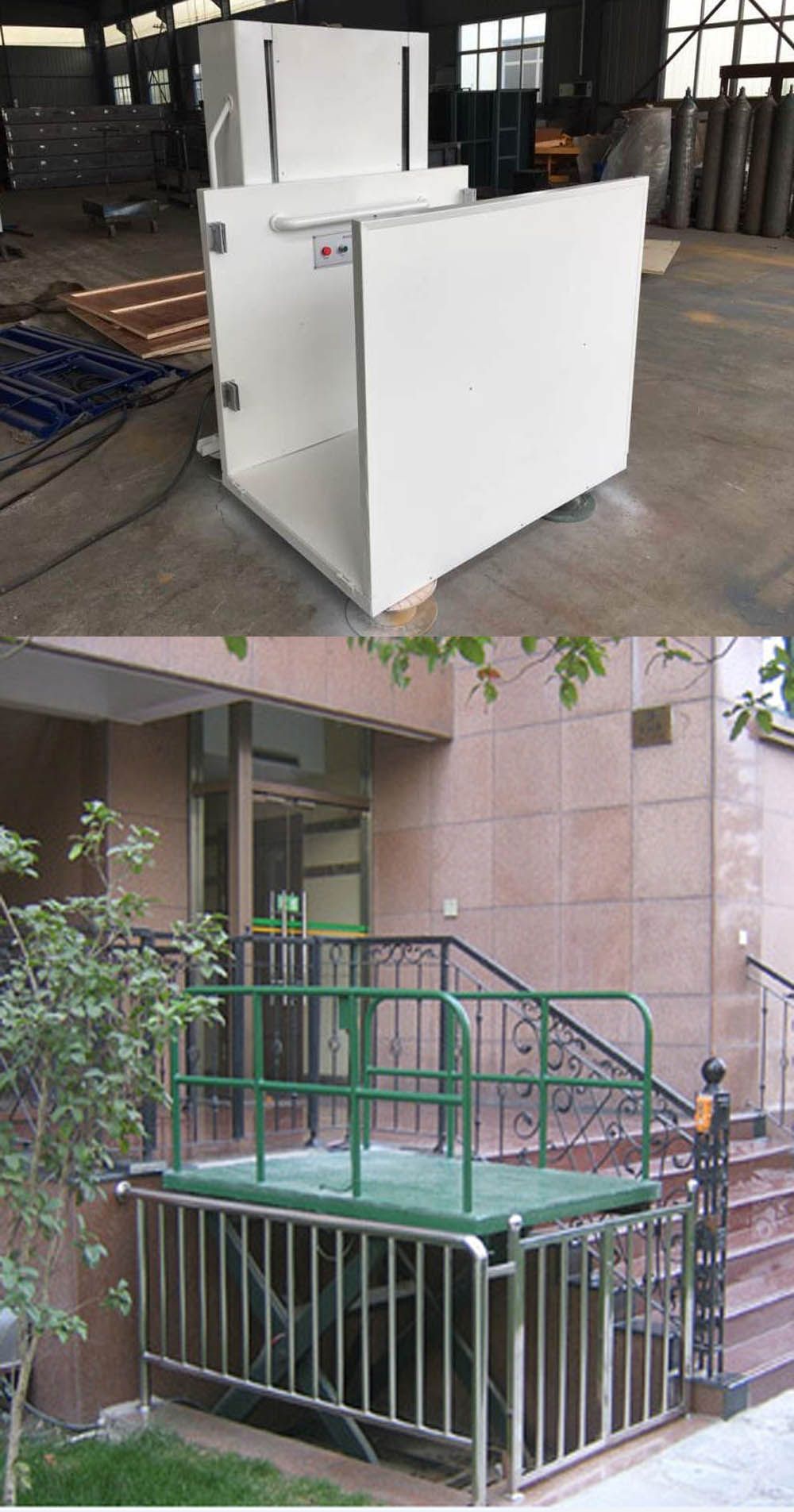

Hot-Sale Home vertical WheelChair Lift Table
Product Description Hot-Sale Home vertical WheelChair Lift Table by the lifting platform, guides and drive box is composed of three parts; lifting platform is by the C type steel as the main components, the "seesaw self resetting switch operation", no pit installation directly fixed on the concrete floor (bottomless pit outdoor application situation, below the platform concrete floor shall not below the surrounding ground), hydraulic valve manually open bottom plate lifting can hand down; hydraulic drive, stable and safe lifting, the external use of drawing stainless steel material and aluminum plate electrostatic spray the chassis / panel, compact and beautiful appearance, don't hinder the surrounding environment. Disabled elevator installed directly on the ground, without supporting pit of civil engineering, construction is simple, products placed outdoors not easy to water, not easy to rust, easy maintenance. The lifting height is 1-6 meters. Specification Name | No. | Lift capacity (kg) | Materials |
Wheel-chair vertical lift | WL0.25-N | 250 | Stainless steel |
Platform size | 1430mm(L)* 900mm(W) |
Dimension | 1430mm(L)*1000mm(W)* [Travel height +700mm(H)] |
Max Platform Height | N(mm) |
Min Platform height | 40mm |
Configuration | Open through or front and side entrances |
Speed | 60mm/s |
Load capacity | 250KG |
Control voltage | 24V/DC |
Power Output | 0.75kw-2.2kw |
Power Input | 220V/50HZ/25A (or customized for local power supply) |
Drive System | Hydraulic |
Control Mode | Inching Switch or Automatic |
Drive Control | Self-resetting system |
Overload | Protection Over current relay |
Material of Platform | Spraying plastic |
Guard panel & drive cabinet (framework) | Spraying plastic |
Automatical ramp | yes |
Column switch | Two column switch, one is on the ground floor, one on the first floor |
Operation Panel | Polished Stainless steel(up down and Emergency drop valve) |
Safety Wane Working Range | 75° |
Working Condition | Both indoors and outdoors |
Working temperature | From -10°~60°C |
Installation | Non-pit installation, directly fixed to concrete floor (the concrete floor below the platform shall not be lower than the ground) |
Control Device | Calling box (installed on the wall nearby) and remote controller(Extra optional) |
Emergency Stop | The lifting and lowering process can be stopped immediately by pressing the emergency button. |
Hot-Sale Home vertical WheelChair Lift Table canbe customized as you required
