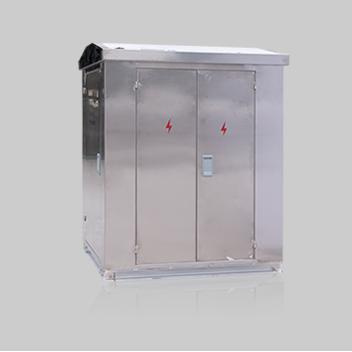

Hv Floor Prepay Vacuum Metering Cabinet
| Price: | US $ 3842.3-4979.5/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
Introduction
ZW8-12YZD series AC high voltage outdoor prepay controlling device. Applied in the high voltage electrical system as prepay meter or automatic recloser of automation distribution net , AC50Hz, 6~12KV
Consist of metering current transformer, voltage transformer, vacuum circuit breaker, arrester, control devices. Metering methods include 3 phases 3 wires type or 3 phases 4 wires type
Control Chamber: Prepay energy meter is installed inside, with the functions of automatic transmission, data process, display ,save , alarm, automatic break. With the controller of anti-electricity stealing software,can realize electricity security effectively and avoid of electricity arrear.
The cabinet is the stainless steel floor structure, once cable inlet and outlet wiring, convenient for installment, small volume.
Application surrounding
Ambient temperature: -40ºC ~ + 40ºC
Altitude ≤ 2000m
Max wind speed ≤34m/s
Relative diary temperature average ≤95%, monthly temperature average ≤ 90%.
Air pollution degree: III class
No frequent horrible sharp shock
Specification
Mechanical specification

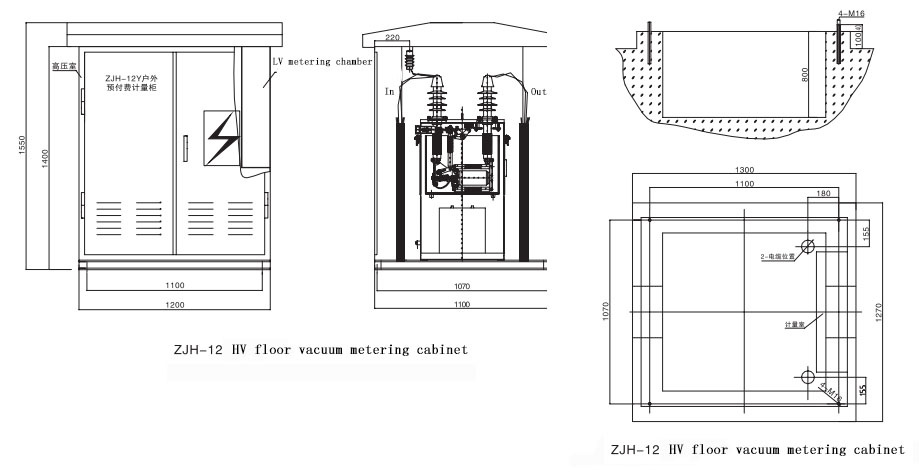

Outline and mounting dimension
Packing and shipping
-- Ordinary paper carton for products.
-- Shipping mark according to customer's request.
-- Bulk production will be deliveried by sea and air.
ZW8-12YZD series AC high voltage outdoor prepay controlling device. Applied in the high voltage electrical system as prepay meter or automatic recloser of automation distribution net , AC50Hz, 6~12KV
Consist of metering current transformer, voltage transformer, vacuum circuit breaker, arrester, control devices. Metering methods include 3 phases 3 wires type or 3 phases 4 wires type
Control Chamber: Prepay energy meter is installed inside, with the functions of automatic transmission, data process, display ,save , alarm, automatic break. With the controller of anti-electricity stealing software,can realize electricity security effectively and avoid of electricity arrear.
The cabinet is the stainless steel floor structure, once cable inlet and outlet wiring, convenient for installment, small volume.
Application surrounding
Ambient temperature: -40ºC ~ + 40ºC
Altitude ≤ 2000m
Max wind speed ≤34m/s
Relative diary temperature average ≤95%, monthly temperature average ≤ 90%.
Air pollution degree: III class
No frequent horrible sharp shock
Specification
| Rated Voltage | 12KV | |
| Power frequency withstand voltage(1min) | phase, to ground | 42KV |
| fracture | 48KV | |
| Lightning impulse withstand voltage | phase, to ground | 75KV |
| fracture | 85KV | |
| Rated current | 630A | |
| Rated Frequency | 50HZ | |
| Rated short-circuit current making & breaking times | 30 times | |
| Rated short-circuit breaking current | 20KA | |
| Rated short-circuit making current(peak) | 50KA | |
| Rated short-time withstand current | 20KA | |
| Rated peak withstand current (peak) | 50KA | |
| Rated operation order | O-0.3s-CO-180s-CO | |
| Rated operation voltage | ~220V | |
| Overcurrent release trip current | 5A | |
| Overcurrent release trip current accuracy | ±10% | |
| Mechanical life | 10000 times | |
| secondary circle power frequency withstand voltage(1min) | 2kV | |
Mechanical specification
| Open contact clearance | 11±1mm |
| Contacts travel | 3+1-0.3 mm |
| average breaking speed | 1.1±0.3m/s |
| average making speed | 0.7±0.15m/s |
| contact making spring time | ≤2ms |
| three phases different cycle | ≤2ms |
| makiing tme | 25~50ms |
| breaking time | 15~50ms |
| all breaking time | ≤100ms |
| arcing time | ≤20ms |
| each phase circle resistance | B phase: ≤150μΩ; A,C phase: ≤350μΩ |
| energy storge motor rated voltage | DC 220V |
| Max/Min making operation voltage | AC242/AC187 V |
| Rated making operation voltage | AC 220V |
| Max/Min breaking operation voltage | AC264/AC143 V |
| Rated breaking operation voltage | AC 220V |
| Max/MIn motor voltage | AC242/AC187 |
Outline and mounting dimension
-- Ordinary paper carton for products.
-- Shipping mark according to customer's request.
-- Bulk production will be deliveried by sea and air.
Our Service
-- We have our own factory, professional manufacturer
-- We do OEM & ODM services .
-- We control quality strictly, quality problem: 100% compensation or change
Welcome to visit our factory. Welcome customer or your agent to inspect before order and before lading.
-- We have our own factory, professional manufacturer
-- We do OEM & ODM services .
-- We control quality strictly, quality problem: 100% compensation or change
Welcome to visit our factory. Welcome customer or your agent to inspect before order and before lading.
| Prod Model: | ZWH-12 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: | People |
| Rated Voltage: | 12kv |
| Rated Current: | 630A |
| Customized Design: | Yes |
| Frequency: | AC 50Hz |
| Material: | Stainless Steel |
| Type: | Resistance Box, Meter Box |
| Structure: | Floor Type |
| Voltage: | 12kv |
| Application: | Industrial,Civil |
| Surface Treatment: | Polishing, Customized |
