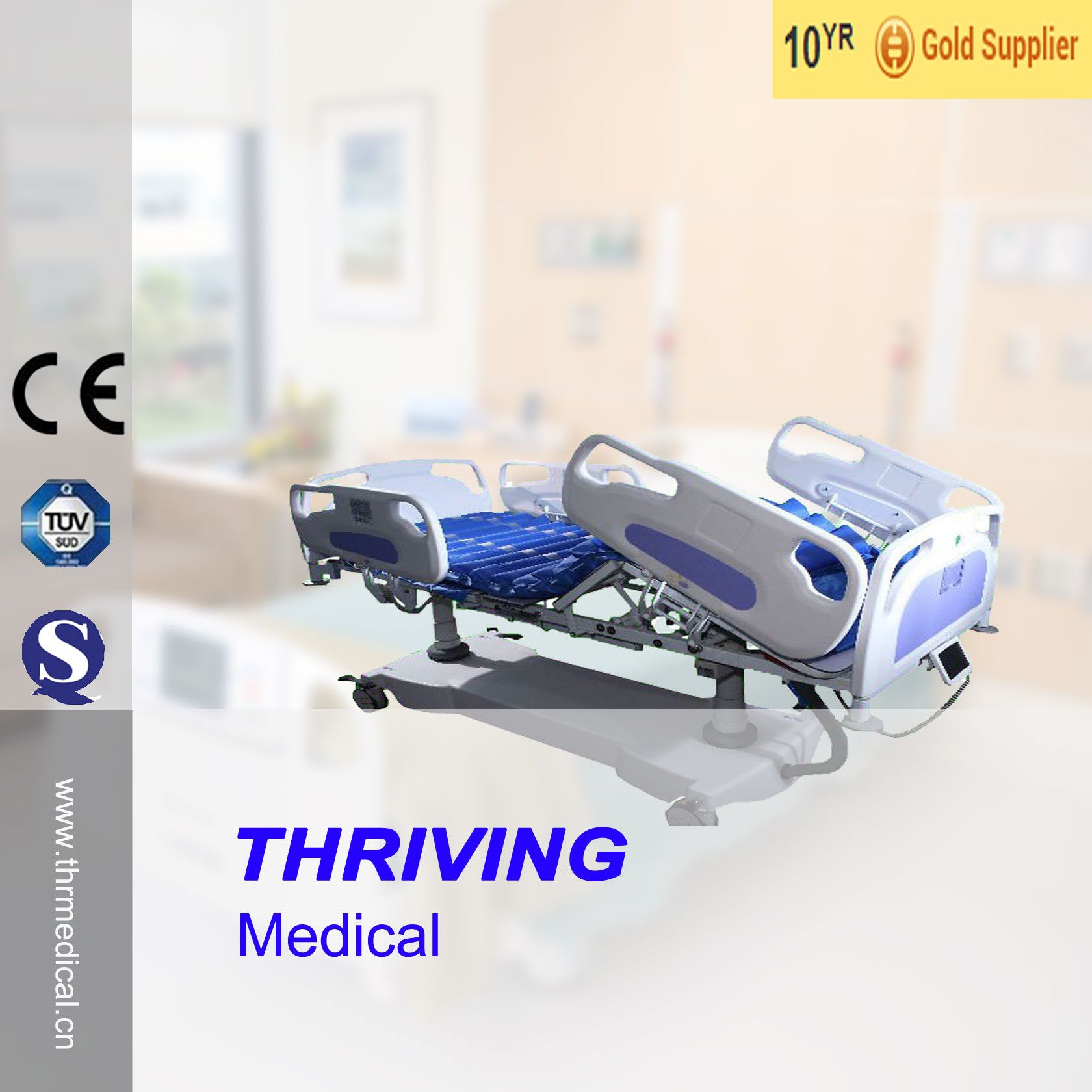

ICU Hospital Electric Bed (THR-IC-05)
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
ICU Hospital Bed (THR-IC-05)
Features:
1. The bed frame is made of high-quality carbon steel and painting is electrostatic spraying.
2. Completely transparent platform for x-ray examination.
3. Backrest x-ray examination tray.
4. Five functions(electrically):
Height adjustment(510mm-910mm)
Angle of backrest's inclination 0° - 75°
Angle of thigh-rest's inclination 0° - 45°
Trendelenburg position: 17°
Anti-trendelenburg position: 17°
5. Shank-rest board can be adjusted by gas spring: 40°
6. Auto contour function: Allows back-board and thigh-board to be adjusted simultaneously.
7. Dual-Regress function: The total regress distance is bigger than 200mm, which can prevent the formation of pressure ulcers and avoid the wound spilt.
8. Removable head-board and foot-board (ABS).
9. ABS Separate side rails.
10. Four built-in side rail controllers for patient: Height adjustment, angle adjustments of backrest and thigh-rest, nursing bells.
11. Touch screen for caregiver Height adjustment, angle adjustments of backrest and thighrest, Trendelenburg/Anti-trendelenburg, side-rail controllers lock out function.
12. One-key position of central control panel: cardiac chair/ fowler position/ CPR position/ examination position/ trendelenburg position.
13. Emergency stop function: The bed can be stopped at all times and positions for one button.
14. Bed Exit Alarm function.
15. Manual CPR set (backrest segment): Adjust the backrest segment 0° - 75°.
16. Backrest angle indicator
17. Rechargeable battery back-up: Up to 72 hours of standby time in normal use and capable of 50 cycles in case of power failure.
18. Four roller bumpers.
19. Central brake and steering system.
20. Holders in each corner for infusion stand.
21. Eight drainage bag holders.
22. Waterproof ventilative mattress.
23. Waterproof Grade IPX4.
Features:
1. The bed frame is made of high-quality carbon steel and painting is electrostatic spraying.
2. Completely transparent platform for x-ray examination.
3. Backrest x-ray examination tray.
4. Five functions(electrically):
Height adjustment(510mm-910mm)
Angle of backrest's inclination 0° - 75°
Angle of thigh-rest's inclination 0° - 45°
Trendelenburg position: 17°
Anti-trendelenburg position: 17°
5. Shank-rest board can be adjusted by gas spring: 40°
6. Auto contour function: Allows back-board and thigh-board to be adjusted simultaneously.
7. Dual-Regress function: The total regress distance is bigger than 200mm, which can prevent the formation of pressure ulcers and avoid the wound spilt.
8. Removable head-board and foot-board (ABS).
9. ABS Separate side rails.
10. Four built-in side rail controllers for patient: Height adjustment, angle adjustments of backrest and thigh-rest, nursing bells.
11. Touch screen for caregiver Height adjustment, angle adjustments of backrest and thighrest, Trendelenburg/Anti-trendelenburg, side-rail controllers lock out function.
12. One-key position of central control panel: cardiac chair/ fowler position/ CPR position/ examination position/ trendelenburg position.
13. Emergency stop function: The bed can be stopped at all times and positions for one button.
14. Bed Exit Alarm function.
15. Manual CPR set (backrest segment): Adjust the backrest segment 0° - 75°.
16. Backrest angle indicator
17. Rechargeable battery back-up: Up to 72 hours of standby time in normal use and capable of 50 cycles in case of power failure.
18. Four roller bumpers.
19. Central brake and steering system.
20. Holders in each corner for infusion stand.
21. Eight drainage bag holders.
22. Waterproof ventilative mattress.
23. Waterproof Grade IPX4.
| DC Linear Actuators | 2 |
| Lifting Columns | 2 |
| Safety supporting load (include the mattress and the accessories) | 200kg |
| Overall Length | 2300mm |
| Overall Length with extended platform | 2500mm |
| Overall Width | 1080mm |
| Mattress Size | 2100mm × 840mm × 80mm |
| Height Adjustment | 510mm-910mm |
| Angle of back rest segment inclination | 0 ° - 75 ° |
| Angle of thigh rest segment inclination | 0 ° - 45 ° |
| Angle of Shank rest segment inclination | 0 ° - 40 ° |
| Trendelenburg/Anti-trendelenburg | 17 ° |
| Backrest segment regress distance | 120mm |
| Thigh-rest segment regress distance | 90mm |
| Backrest x-ray cassette holder | 420mm × 650mm |
| Diameter of Castors | 150mm |
| Voltage | 220~230V, 50Hz~60Hz Standard |
| (110~127V, 50Hz~60Hz Option) | |
| Alternating Pressure Mattress | 1 |
| Touch screen | 1 |
| IV pole | 1 |
| Prod Model: | THR-IC-05 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: | 2300*1080*510-910 mm |
| Dual-Regress Function: | available |
| Certificate: | CE and ISO |
| Warranty: | one year |
| Motors: | LINAK |
| CPR Function: | available |
| Emergency Stop Function: | available |
| Roller Bumps: | available |
| Drainage Bag Holders: | available |
| Material: | Metal |
| Type Of Hospital Bed: | Electric Bed |
| Folded: | Unfolded |
| Using Ambient: | Hospital |
| Numbers Of Function: | Five-function |
| Certification: | CE |
