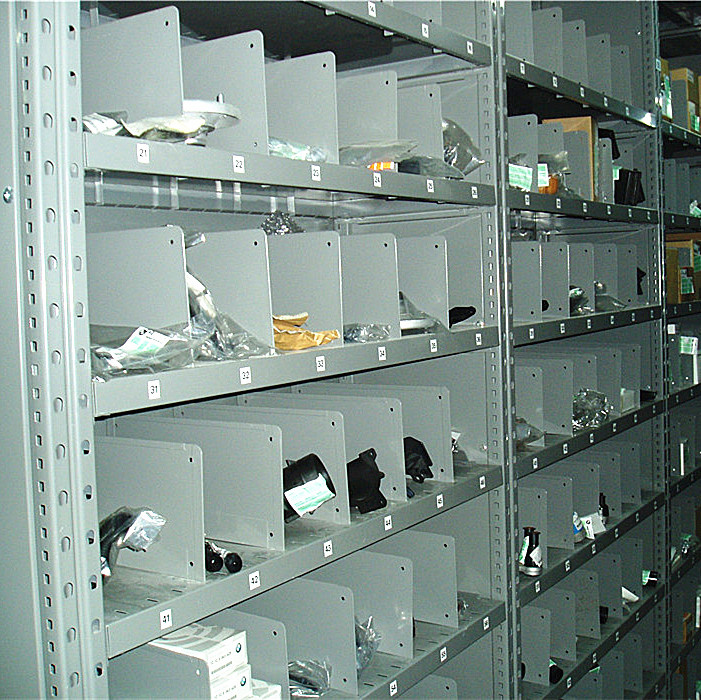

Industrial Storage Light Duty Metal Shelf
| Price: | US $ 1080-1188/Ton |
|---|---|
| Min Order: | 10/Ton |
| Pay Type: | L/C,T/T |
1. Product Description:
The light duty boltless shelving is suitable for the storage of manual hand pick small items, containers and transport containers. The shelving can be arranged in single run or double back-to-back, walkway width is approximately 900-1100mm(W). Each level of light duty shelves can take the load from 50kg-200kg. it is widely used in warehouses, distribution center, parts store and production line. It is easily adjusted without using special tool.
2. Basic components
Upright:
The upright is around 55-60mm width, which has the similar structure with pallet rack frames. Horizontal and diagonal braces are fitted to the lower and upper part to ensure frame rigidity. Bolted base plates are fitted to each frame, dependent on designed capacity.
Steel shelves
Cold rolled steel sheets are used to make the steel shelves. Normally the material thickness can be 0.8mm-1.0mm for SPCC. Underneath the shelves, reinforced bars are spot welded to offer more loading capacity. The shelves can be connectoed to the upright via adaptors/hooks.
The finish of all painted parts is an Epoxy-powder coating polymerized at 180 °C.
The standard colors are RAL 5015 (=blue) and RAL 7035 (=light gray). Shleves can also be galvanized finishing. Special colors are available on request.
3. The main components are uprights and shelves. The standard specifications are as follows:
1. Foot plate
2. Upright
3. Shelve adaptor
4. Shelves
5. Side mesh
6. Top shelve
7. Back mesh
Recomended Standard size for Light shelving:
4. Advantages and Key benefits·
Complies with international norms and regulations
· Wide range of basic components for storage of all pallet sizes and weights.
· Many standard accessories to meet every storage need you can imagine
· Computer aided design ensuring the best solution for every application, including static calculations
· Rigid and stable construction
· High quality of finish
· Easy and quick installation
· Mass volume production to offer very cost effective products
5. Factory Production:
6. RFQ documents: Before you send us your Requirement For Quotation, please prepare the following information:
Warehouse layout CAD drawings if available.
Carton box size, width, depth and height.
Loading weight per box.
Clear height of the warehouse
Required line items to be stored.
Your intra logistic flow within the warehouse.
mateail handling equipment informaiton such as picking trolley, mobile ladders, etc.
The light duty boltless shelving is suitable for the storage of manual hand pick small items, containers and transport containers. The shelving can be arranged in single run or double back-to-back, walkway width is approximately 900-1100mm(W). Each level of light duty shelves can take the load from 50kg-200kg. it is widely used in warehouses, distribution center, parts store and production line. It is easily adjusted without using special tool.
2. Basic components
Upright:
The upright is around 55-60mm width, which has the similar structure with pallet rack frames. Horizontal and diagonal braces are fitted to the lower and upper part to ensure frame rigidity. Bolted base plates are fitted to each frame, dependent on designed capacity.
Steel shelves
Cold rolled steel sheets are used to make the steel shelves. Normally the material thickness can be 0.8mm-1.0mm for SPCC. Underneath the shelves, reinforced bars are spot welded to offer more loading capacity. The shelves can be connectoed to the upright via adaptors/hooks.
The finish of all painted parts is an Epoxy-powder coating polymerized at 180 °C.
The standard colors are RAL 5015 (=blue) and RAL 7035 (=light gray). Shleves can also be galvanized finishing. Special colors are available on request.
3. The main components are uprights and shelves. The standard specifications are as follows:
1. Foot plate
2. Upright
3. Shelve adaptor
4. Shelves
5. Side mesh
6. Top shelve
7. Back mesh
Recomended Standard size for Light shelving:
| Frame Height (mm) | Shelf Clear Width (mm) | Frame Depth (mm) |
| 1800 | 1000 1300 | 400 500 600 800 1000 |
| 2000 | ||
| 2200 | ||
| 2400 | ||
| 2500 |
4. Advantages and Key benefits·
Complies with international norms and regulations
· Wide range of basic components for storage of all pallet sizes and weights.
· Many standard accessories to meet every storage need you can imagine
· Computer aided design ensuring the best solution for every application, including static calculations
· Rigid and stable construction
· High quality of finish
· Easy and quick installation
· Mass volume production to offer very cost effective products
5. Factory Production:
6. RFQ documents: Before you send us your Requirement For Quotation, please prepare the following information:
Warehouse layout CAD drawings if available.
Carton box size, width, depth and height.
Loading weight per box.
Clear height of the warehouse
Required line items to be stored.
Your intra logistic flow within the warehouse.
mateail handling equipment informaiton such as picking trolley, mobile ladders, etc.
| Prod Model: | LS 60 |
|---|---|
| Material: | Steel |
| Structure: | Shelf |
| Mobility: | Adjustable |
| Height: | 0-5m |
| Closed: | Semi-closed |
| Development: | Conventional |
| Serviceability: | Common Use |
| Weight: | 0-150kg |
