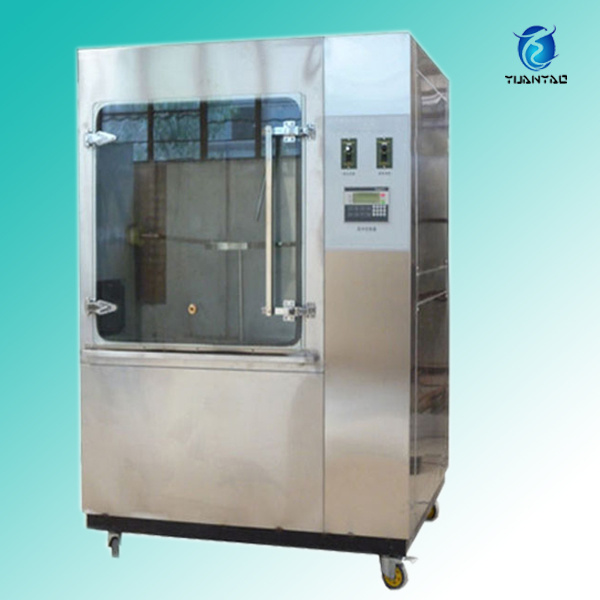

Ipx1 to Ipx4 Box Rain Spray Test Cabinet for IEC60529
| Price: | US $ 4000-23000/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
Ipx1 to Ipx4 Box Rain Spray Test Cabinet for IEC60529
Rain spray test cabinet mainly applies to communications products, auto parts (such as automotive rear-view mirror, car audio, automotive electronics, automotive lighting, car lights, motorcycle lamps, motorcycle mirrors), outdoor lighting and signaling devices.
Package ang Delivery
Package: Strong wooden cases, meet the international standard.
Delivery details: In 15-20 working days.
Features
1. Digital setting, operating easy, maintenance quickly.
2. This chamber is designed to test water-proofing properly of automobile and electronic parts.
3. Adopt large viewing glass can let operator see the specimen clearly.
| Model | YSRT-1728-A | YSRT-1728-E(IEC-529)(CNS14165) | ||||
| Internal Dim.W×H×D(mm) | 1200×1200×1200 | 1200×1200×1200 | ||||
| External Dim.W×H×D(mm) | 1750×1850×1300 | 1750×1850×1300 | ||||
| Water Temp. | Normal | Normal | ||||
| Spray Type | Total Water Flow(L/min) | R1 | 1.8 | IP×1 | With in 1~1.5mm/min(In drip box) | |
| R2 | 3.2 | IP×2 | With in 3~3.5mm/min(In drip box) | |||
| S1 | 24.5 | IP×3 | angle±600,R:400mm,1.1L/min | |||
| S2 | 39.2 | IP×4 | angle±1800,R:400mm,1.8L/min | |||
| Pressure of spray nozzle(kgf/cm*2) | R1 | 0.1 | 1.Flow rate of the water=0.07L/min 2.1P×3,Radius:400mm,16Number or open holes=16,total water flow:1:1L/min. 3.1P×4,Radius:400mm,25Number or open holes=25,total water flow:1:8L/min. *Radius:200mm,R400mm. (For 1P×3,1P×4 only) | |||
| R2 | 0.3 | |||||
| S1 | 1 | |||||
| S2 | 3 | |||||
| (RPM)Test Specimen Frame | 17RMP | 1RPM | ||||
| Spray Nozzle Rotation Speed | 23RPM | Promote the pipe on both sides of the vertical line of 30 ° each time back and forth about four seconds to promote Swing 60 ° from vertical for 4 seconds at one time Promote the pipe on both sides of the vertical line of 180 ° for about 12 seconds to promote one round Swing 180 ° from vertical for 12 seconds at one time | ||||
| Material | Interior | SUS#304 | ||||
| Exterior | ||||||
| Other Components | Chamber lamp.Wiper casters with Adjusters | Chamber lamp.Wiper,casters with Adjusters | ||||
| Power Source(K.W.) | AC 1Ψ 220V 60/50Hz 4KW | |||||
Except rain spray test chamber, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:
1) Temperature/ humidity test series: Temperature humidity test chamber, Walk in environmental room, Thermal shock test chamber, High altitude low pressure simulation test chamber
2) Aging test series: Hot air oven, Vacuum drying oven, Air ventilation aging test chamber, Steam aging test chamber, Ozone resistance test chamber, Burn in test equipment
3) Weather simulation tes series: Rain spray test chamber, dust test chamber, Xenon lamp aging test chamber, UV test chamer
4) Mechanical test series: High frequency vibration test machine, drop test machine , Glue dispensing machine etc.
If you are interested in the items, please contact me soon.
| Prod Model: | YSRT-1728 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Internal Size(mm): | 1200*1200*1200 |
| Test Specimen Frame: | 17rpm |
| Flow Rate Of The Weter: | 0.07L/Min |
| Material: | SUS#304 |
| Water Temp.: | Normal |
| Warranty: | 12 Months |
| IP Class: | Ipx1~Ipx8 |
| Other Components: | Chamber Lamp.Wiper, Casters with Adjusters |
| Application: | Auto Testing Machine |
| Service: | Customization |
| Type: | Material Testing Machine |
| Weight: | 100-500Kg |
| Power Source: | AC220V |
| Maxcapacity: | N/a |
| Load Way: | N |
| Loading Method: | N/a |
| Control: | Controller |
| Oil Cylinder Position: | N/a |
