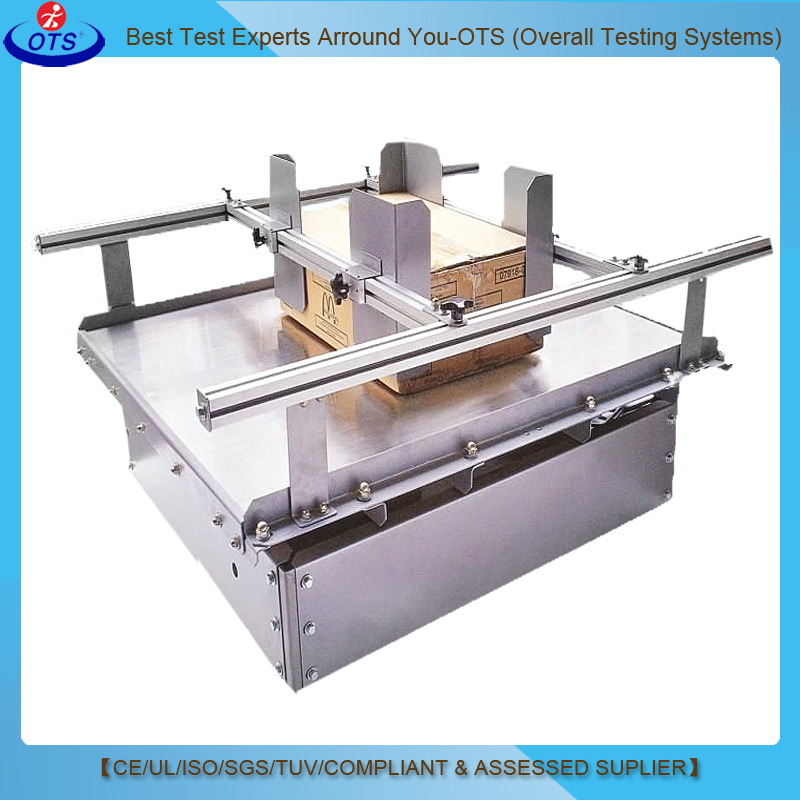

ISO Automatic Package Transport Simulation Vibration Testing Table
| Price: | US $ 1000-6000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
ISO Automatic Package Transport Simulation Vibration Testing Table
Model: XB-OTS-208A
Introductions:
This product is for a variety of packaging materials, PC boards, electrical products .
as well as the simulated transport vibration test of the packaged products, to assess the degree of vibration-resistance.... simulate the transport process Caused damage because of the vibration force, the test results can be used as the reference of the design packaging.
Features:
1. Low price, the price is only 10% of similar products in the United States;
2. Digital instrument display vibration frequency;
3. Synchronous mute belt drive;
4. The specimen is clamped with rail, easy to operate, safe;
5. The base of the machine adopts heavy-duty trench with damping pad, easy installation, smooth operation, no need to install the foot screw;
6. DC motor speed, smooth operation, strong load capacity;
7. Rotary vibration (commonly known as racing), in line with European and American transport standards;
Design standards: EN71 ANSI, UL, ASTM ISTA
Analog Transport Vibration Test Bench Test Standard Requirements for Equipment:
1. ISTA test standard is the American Transportation Association standard
2. ASTM test standards are American Materials Association standards
Two standard requirements for simulated transport vibration are:
1. Amplitude is 25.4mm (1 inch, fixed)
2. Frequency 1.5-5Hz (or 100-300 r / min adjustable)
3. The test basis is: T = 14200 / CPM (based on the total number of vibration is 14200 times)
ISTA / ASTM standards related test methods table:
Technical Parameters:
Packing & Shipping
1.Strong standard wood case, inner plastic films wrapped for Transportation Vibration Testing Machine
2. Usually we delivery the equipment by air,by sea or by express. it depends on customer
Our Services:
We are here to help you.Services available:
Replacement manuals
Consumables and replacement parts
On-site maintenance and repair
Warranty support
Over-the-phone service support and advice
If you have an OTS chamber , we will do our best to help you in whatever way we can.
Manuals:PDF files of manuals for current models are available free.Please contact us to request a copy.Older and printed copies at additional charge.
Service repair:We prefer you contact us direct at the factory with any problems you may be experiencing.We help diagnose the problem, arrange for any needed parts, and schedule a technician to do the repairs.Rarely can a local contractor get all that done for you as quickly as we can.We also guarantee the work .
Our Company
OTS (Overall Testing System)
Was established in 1978, with 35 years' history
With 30,000 square meter salable production base and 120 employees
Is one of the leading companies solely dedicated to manufacture of
Environmental Simulation Test Chambers ,Physical Testing Equipment .
(such as constant temperature and humidity chambers, environmental chambers, climatic test chambers, rain and dust test chambers,thermal shock test chambers,fast change rate chambers, salt spray chamber,UV test chambers,walk in test chambers and other special customized test chambers ;Tensile testing machine, vibration test machine ,carton compression testing machines, bursting strength testing machine etc.) ..
OTS has the equipment and expertise, with own R&D and consultant team, to meet and exceed your testing requirement.With offices in unrivaled quality advantage, dynamic management team with superb manufacturing process,also the quality with the world norms:ISO , ASTM, DIN, EN, GB, BS, JIS, ANSI, UL,CE, TAPPI, AATCC, IEC, VDE...
FAQ:
Q1 :Can you customize the product?
A:Yes, we can customize any products according to requirements.Hot selling lab electronic temperature humidity cabinet/Environmental climate test chamber also can be customized.
Q2 :How to choose the most suitable products?
A:Our professional team will give you the best suggestion,just be patiently to tell us the information about the parameters your required.
Q3 :Can you arrange installations and commissioning in our lab?
A:Firstly, for standard chamber we had 3-5 days commissioning before shipping , you just need link power in your lab, then can start to operate
Secondly;We had detailed operation manual with chamber , any problems you can find and solve in it
Thirdly, some of customized chambers we should to install and teach your team to operate .
If you want to know more information...
Please leave a message below and click " SEND "
Thanks for your time and attention~Thank you!
Model: XB-OTS-208A
Introductions:
This product is for a variety of packaging materials, PC boards, electrical products .
as well as the simulated transport vibration test of the packaged products, to assess the degree of vibration-resistance.... simulate the transport process Caused damage because of the vibration force, the test results can be used as the reference of the design packaging.
Features:
1. Low price, the price is only 10% of similar products in the United States;
2. Digital instrument display vibration frequency;
3. Synchronous mute belt drive;
4. The specimen is clamped with rail, easy to operate, safe;
5. The base of the machine adopts heavy-duty trench with damping pad, easy installation, smooth operation, no need to install the foot screw;
6. DC motor speed, smooth operation, strong load capacity;
7. Rotary vibration (commonly known as racing), in line with European and American transport standards;
Design standards: EN71 ANSI, UL, ASTM ISTA
Analog Transport Vibration Test Bench Test Standard Requirements for Equipment:
1. ISTA test standard is the American Transportation Association standard
2. ASTM test standards are American Materials Association standards
Two standard requirements for simulated transport vibration are:
1. Amplitude is 25.4mm (1 inch, fixed)
2. Frequency 1.5-5Hz (or 100-300 r / min adjustable)
3. The test basis is: T = 14200 / CPM (based on the total number of vibration is 14200 times)
ISTA / ASTM standards related test methods table:
| Test Speed (CPM) | Corresponding frequency (Hz) | testing time (M) |
| 150 | 2.5 | 95 |
| 180 | 3.0 | 79 |
| 210 | 3.5 | 66 |
| 240 | 4.0 | 60 |
| 270 | 4.5 | 53 |
| 300 | 5.0 | 48 |
Technical Parameters:
| Frequency range | 60~300RPM cycle/min (Adjustable) |
| Vibration mode | Rotary vibration (Vertical and horizontal) |
| Amplitude range | 25.4mm(1 inch) meet ISTA/EN71 |
| Max .Load | 60KG |
| Accuracy Grade | 0.5 |
| Simulation speed | 25 ~ 40km / h |
| Working Table size(L*W)(mm) | 1000*1200 mm |
| Digital speed | Accuracy is not greater than ± 3 rev / min |
| Work time setting range | 0~999H99M |
| Speed display accuracy | 1RPM cycle/min |
| Motor Power | 1HP |
| Max.current | 5A |
| Power | 1 phase 220V 50Hz/60Hz |
| Overall dimensions | 1255*1070*660 mm |
| Machine weight | 125kg |
| Environmental conditions | temperature: 5 ~ 40 ºC, relative humidity ≤ 85% |
| Speed control mode | DC speed control or AC frequency control |
| *** Standard: EN71,ANSI,UL,ASTM ISTA | |
Packing & Shipping
1.Strong standard wood case, inner plastic films wrapped for Transportation Vibration Testing Machine
2. Usually we delivery the equipment by air,by sea or by express. it depends on customer
Our Services:
We are here to help you.Services available:
Replacement manuals
Consumables and replacement parts
On-site maintenance and repair
Warranty support
Over-the-phone service support and advice
If you have an OTS chamber , we will do our best to help you in whatever way we can.
Manuals:PDF files of manuals for current models are available free.Please contact us to request a copy.Older and printed copies at additional charge.
Service repair:We prefer you contact us direct at the factory with any problems you may be experiencing.We help diagnose the problem, arrange for any needed parts, and schedule a technician to do the repairs.Rarely can a local contractor get all that done for you as quickly as we can.We also guarantee the work .
Our Company
OTS (Overall Testing System)
Was established in 1978, with 35 years' history
With 30,000 square meter salable production base and 120 employees
Is one of the leading companies solely dedicated to manufacture of
Environmental Simulation Test Chambers ,Physical Testing Equipment .
(such as constant temperature and humidity chambers, environmental chambers, climatic test chambers, rain and dust test chambers,thermal shock test chambers,fast change rate chambers, salt spray chamber,UV test chambers,walk in test chambers and other special customized test chambers ;Tensile testing machine, vibration test machine ,carton compression testing machines, bursting strength testing machine etc.) ..
OTS has the equipment and expertise, with own R&D and consultant team, to meet and exceed your testing requirement.With offices in unrivaled quality advantage, dynamic management team with superb manufacturing process,also the quality with the world norms:ISO , ASTM, DIN, EN, GB, BS, JIS, ANSI, UL,CE, TAPPI, AATCC, IEC, VDE...
FAQ:
Q1 :Can you customize the product?
A:Yes, we can customize any products according to requirements.Hot selling lab electronic temperature humidity cabinet/Environmental climate test chamber also can be customized.
Q2 :How to choose the most suitable products?
A:Our professional team will give you the best suggestion,just be patiently to tell us the information about the parameters your required.
Q3 :Can you arrange installations and commissioning in our lab?
A:Firstly, for standard chamber we had 3-5 days commissioning before shipping , you just need link power in your lab, then can start to operate
Secondly;We had detailed operation manual with chamber , any problems you can find and solve in it
Thirdly, some of customized chambers we should to install and teach your team to operate .
If you want to know more information...
Please leave a message below and click " SEND "
Thanks for your time and attention~Thank you!
| Prod Model: | XB-OTS-208A |
|---|---|
| Time Setting: | 0-999hours |
| Rotation Speed: | 150-300rpm |
| Controller: | Microcomputer |
| Warranty: | 12 Month |
| Type: | Vibration Testing Machine |
