Large Capacity Low Price Gold Separation Shaking Table Price
| Price: | US $ 1300-1600/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
Large Capacity Low Price Gold separation Shaking Table Price
Product Description

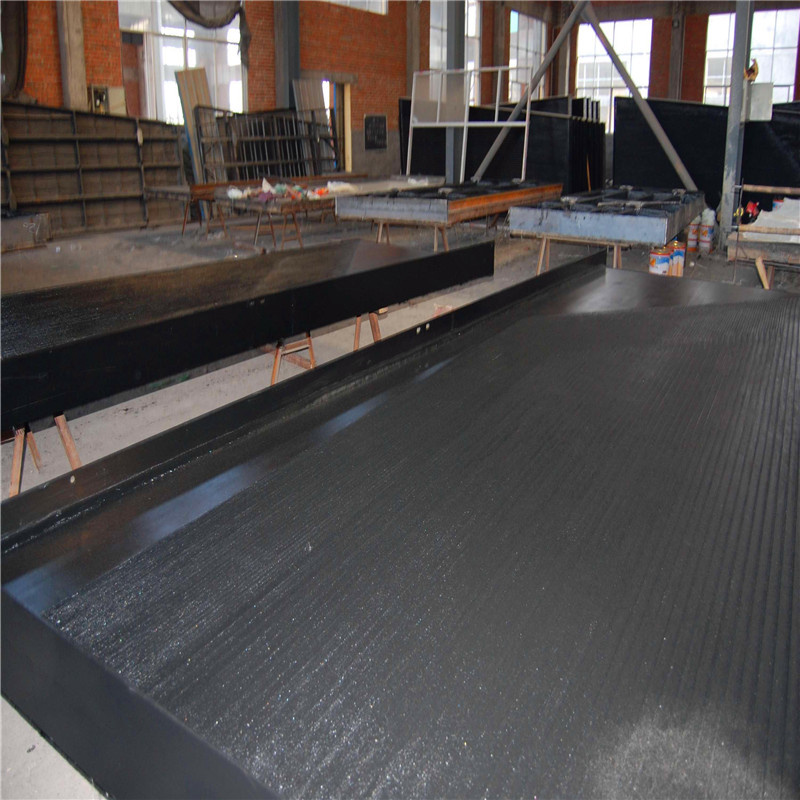

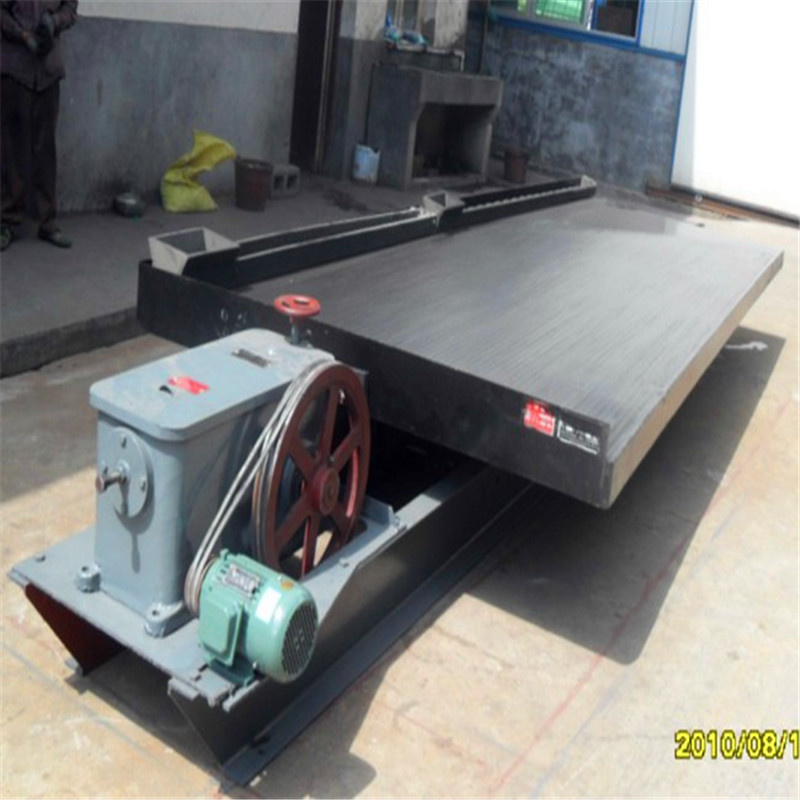

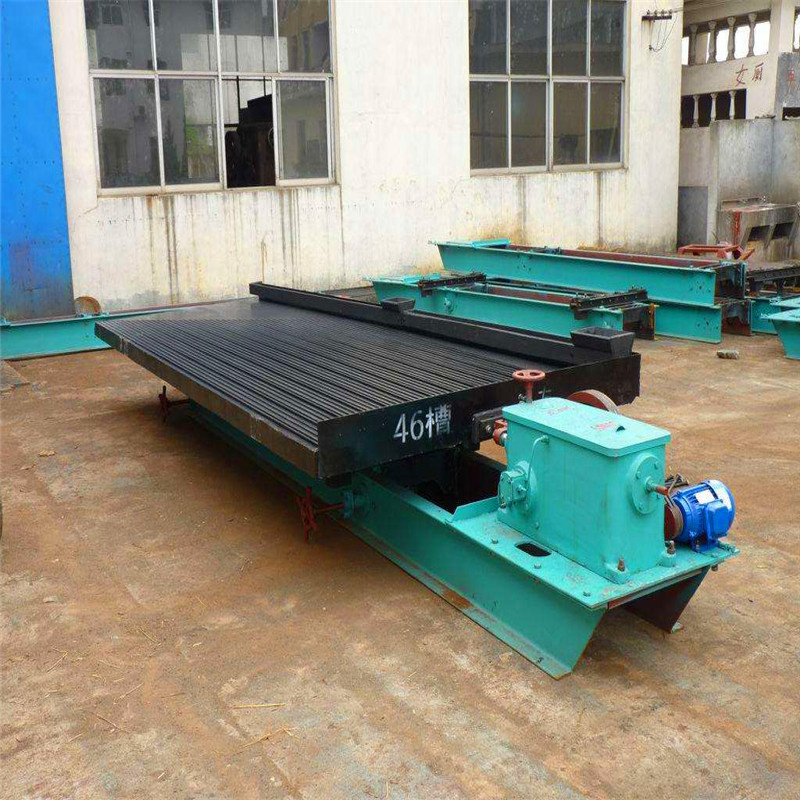

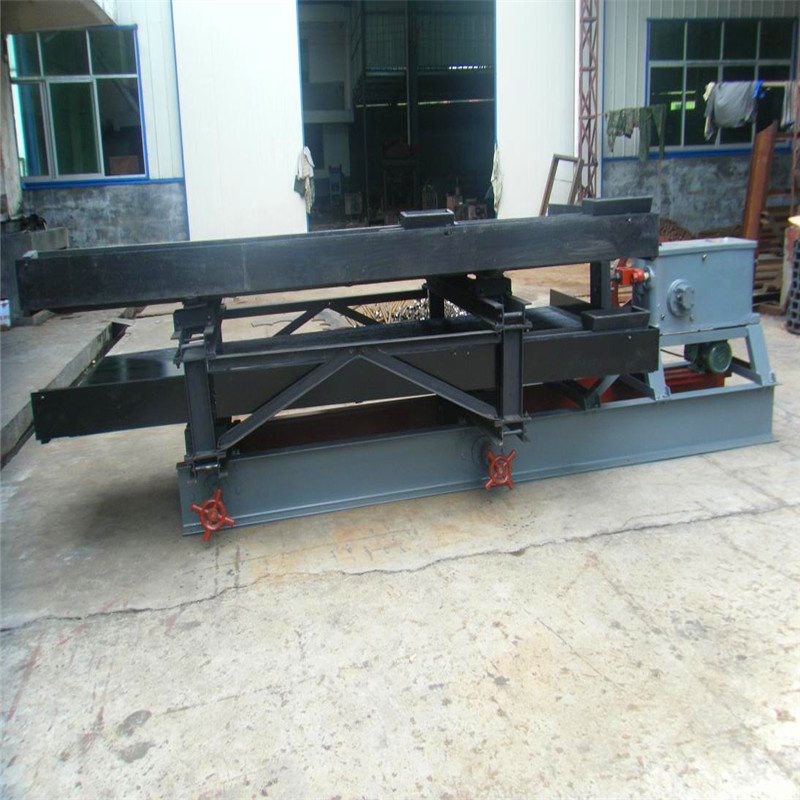

6-S Gold Shaking table, sometimes also known as wet tables, consist of a vibrating riffled deck mounted on some type of support. A motor, usually mounted separately off to the side, drives a small arm that shakes the table along its length. The riffles are usually not more than half an inch high and cover only about half the table surface. Varied riffle designs are available for specific types of applications. Shaking tables are very efficient in recovering heavy minerals from minus 100 microns (150 mesh) down to 5 microns in size. Heavy minerals of a size greater than 150 mesh are better run through a jig.
Advantages and Characteristics
Ingenlous structure of inertial gearing, self balanced vertical force component. No vertical jump because no vertical vibrating force. It can be installed on the buliding floor, or on the bracket.
Lift type, minimal consumption of friction, reduce vibration and energy-saving, non-required bulky base, quick and flexible installation.
It adopts fiberglass deck with wear-resistant layer, wear-resistant, waterproof, anti-dry, anticorrosion, non-deformed, less maintenance, long service life.
The deck installed in an uniform frame Layer-by-layer, easy to install and unload, increase processing capacity per unit area. Replace different weight blocks can change the stroke of shaking table.
It adopts variable-frequence governor, easily change frequency of stroke to adapt different material with different particle size and features.
Main technical parameter:
| Model | Ls<6-s> |
| Table structure | Glass steel material, composite structure |
| Table specification | 1500-1850X4500mm |
| Sorting area | 7.5 m2 |
| Table direction | Left and right |
| Horizontal gradient | 0.5 degree |
| Stroke | 10-30mm |
| Stroke frequency | 240-360c/min |
| Feed size: Coarse sand 2-0.5mm; fine sand 0.5-0.074mm; slurry 0.074mm | |
CITICHL Heavy Industries CO., LTD. The former was CITIC Heavy Machinery Co., Ltd. It was used be subsidiary of CITIC heavy machinery co., ltd. The company was founded in 1981 and finished joint stock reform in 2005, which is located in Luoyang city, capital city of nine dynasties in ancient times.
With a garden-like industrial park and modern standard plant covering 80000 square meters, CITICHL possesses advanced equipments, technologies and detecting methods. After more than 30 years development, the company has developed into a collectivized one with product designing, manufacture, installation and technical services.
The products comprise all the equipments used in mining, ore dressing, hoisting, coal preparation, crushing and grinding, cement plant, metallurgic and steel rolling, environment protection, and also power generator, heavy-duty gear reducers and large-sized castings and forgings, etc.
CITICHL is national major industry and heavy machinery manufacturing base in the middle of china, we can supply the customers with important complete technical equipments in mining, non-ferrous metal, chemical industry, metallurgy, construction materials, environment protection, and power generating as well as other basic industries. The company can accept the packed engineering project. Our products are sold well to countries and regions in Asia, Africa, Europe, and Australia, and hold a large market share home and abroad.
FAQ
Q: How about the quality of your products?
A: Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before delivery.
Q: How about the price?
A: We are manufactory, and we can give you lower price than those trade companies. Besides, customers from Made in China can get a discount.
Q: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after-sale team to promptly and thoroughly solve your problems.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
| Prod Model: | Ls<6-s> |
|---|---|
| Name: | Shaking Table |
| Table Structure: | Glass Steel Material, Composite Structure |
| Table Specification: | 1500-1850X4500mm |
| Sorting Area: | 7.5 M2 |
| Table Direction: | Left and Right |
| Horizontal Gradient: | 0.5 Degree |
| Stroke: | 10-30mm |
| Stroke Frequency: | 240-360c/Min |
| Type: | Gravity Separator |
| Voltage: | 380V |
| Weight: | <1T |
| Certification: | ISO9001:2008 |
| Warranty: | 1 Year |
| Customized: | Non-Customized |
| Condition: | New |
| Material: | Fiber Glass Steel |
| Color: | as Requirement |
