| Prod Model: |
TZJD-1325L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Blue/Red/White/Yellow/Pink/Black, as Your Demands |
| Working Area: |
1300mm*2500mm |
| Guide Rail: |
Taiwan Hiwin Linear Guide Rail |
| Working Table: |
Honeycomb Type |
| Controller Card: |
DSP |
| Controller: |
Leetro6515 Card |
| Software: |
Lasercut |
| Interface: |
USB, PCI |
| Necessary: |
Auto Feeder, Roll Harness, Fabric Collector |
| Woring Voltage: |
AC110V/AC220V±10%, 50Hz/60Hz |
| Engraving Machine Type: |
Laser Engraving Machine |
| Usage: |
Plastic |
| Laser Type: |
CO2 |
| Control: |
CNC |
| Current: |
AC |
| Certification: |
FDA |
Product Description

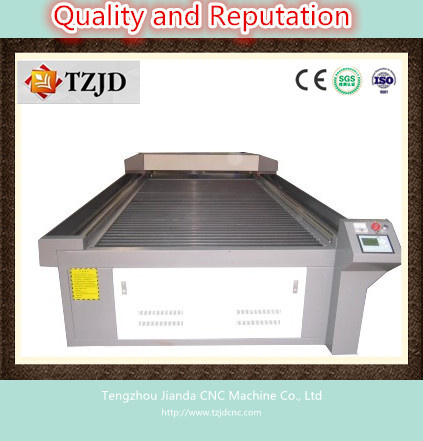

Laser Cutting Bed for Advertising Marble MDF ABS Acrylic TZJD-1325L
1. Taiwan HIWIN linear guide and precision gear, matched with the advanced DSP Controller, also within stepper/servo motor to ensure the working accuracy.
2. This work table was large enough to bear, extra times were all saved.
3. That working table were all stainless steel material, easily operate and never fray.
4. Continuous & rapid curve cutting function; Selecting shortest path function.
5. USB Interface, with mass storage device; Improve working-speed & working efficiency.
6. LaserCut software compatibility with AutoCAD/Coredraw/Cam/Photoshop/Taijima designing program, output designs directly.
Applicable industry:Label processing, Garment samping, Embroidery, advertising, decoration, arts and crafts, electronics, electric appliances, large format tailoring, mould industry, packing industry, etc.

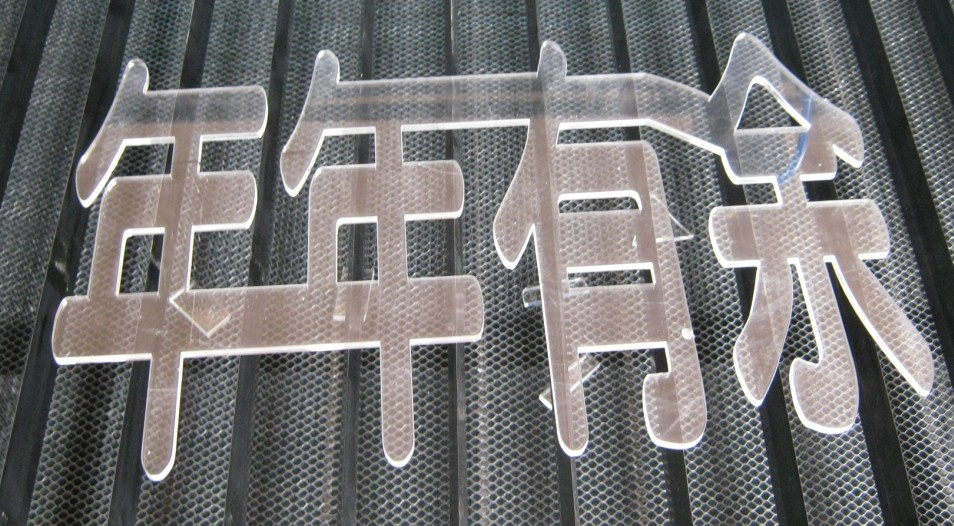

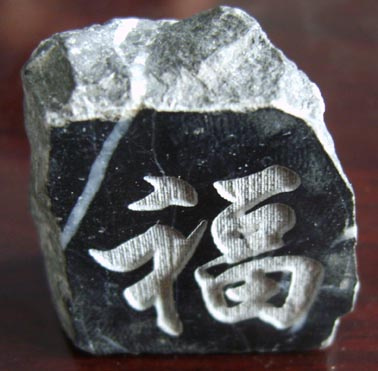

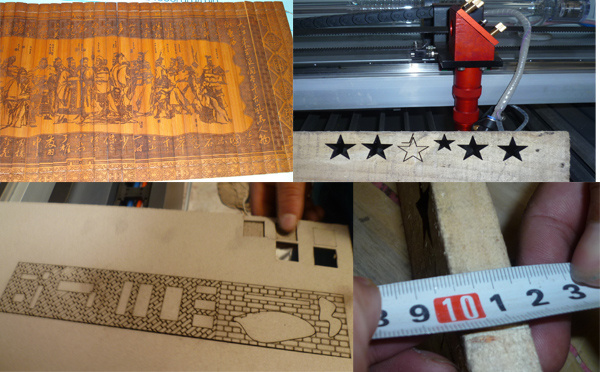

Applicable Materials:Acrylic, wood planks, label, fabric, paper ware, bamboo ware, double color board, paper, leather, shell, coconut shell, ox horn, resin animal grease, ABS board, lamp shade, embroidery, leather, synthetic leather, canvas, artificial leather, glass, marble, crystal, etc.
Laser Cuttng Bed for Advertising, Laser Cutting Bed, Laser Cutting machine, Laser Cutting Flat Bed. Laser Engraving Cutting machine, Laser Cutter.
| Model | TZJD-1325L |
| Working area | 1300mm*2500mm |
| Laser power | 80w/100w/130w/150w/180w |
| Laser type | CO2 Sealed laser tube , 10.6μ m, water-cooled |
| Cooling type | Water chiller |
| Engraving speed | 0-75000mm/min |
| Cutting speed | 0-50000mm/min |
| Total power | 2KW/H |
| Drive motors | Stepper/Servo(option) |
| Laser output control | 0-100% set by software |
| Min. engraving size | Chinese: 1.5mm*1.5mm, English letter: 1.0mm*1.0mm |
| Highest scanning precision | 4000DPI |
| Locating accuracy | ≤ +0.01mm |
| Controlling software | DSP control system |
| Operating software | LaserWork |
| Graphic format supported | DST PLT BMP DXF DWG AI LAS, etc |
| Compatible software | CORELDRAW, PHOTOSHOP, AUTOCAD, TAJIMA, etc. |
| Color separation | Yes |
| Drive system | High-precision 3-phase stepper motor |
| Auxiliary equipments | Exhaust fan and air exhaust pipe, red-dot position system, focus lens & reflection mirrors |
| Power supply | Ac110v/AC220V± 10%, 50HZ/60HZ |
| Working environment | Temperature: 0-45, Humidity 5-95%(No condensate water) |
| Working table | Honeycomb table/Knife bar |
| Interface | PCI USB |
| Machine available | rotary device, UP & DOWN system, auto-focus device, etc. |
Tengzhou Jianda CNC Machine Co., Ltd specialized in woodworking machine, advertising machine, marble/stone engraving machine, laser engraving cutting machine, metal mould machine, double heads engraving machine, cylinder engraving machine, etc.
The company was one of companies that can research & develop the advanced CNC Machines, which have laid the foundation in the domestic market. Our machines have already exported to USA, Canada, England, Australia, Russia, India and so on.
Tengzhou Jianda CNC Machine Co., Ltd Is the professional CNC router manufacturer. We adopt many computerized numerical patents. Our company is devoted in the research and development of engraving CAD/CAM technology and CNC technology and have obtained remarkable achievement in the design of precise engraving machine as well as artistic carving.
Today, TZJD CNC has developed to a large worldwide Manufacturing Group; And become an excellent leader of the world in this field. Our products have covered woodworking industry, advertising decoration, making label industry as well as crafts and gifts fields. We wishes to develop the double-win together with our customers. Welcome to your valuable advise.
Our products are famous for its low price, good quality and good after sales service. We are still try our best to produce innovative products to you.
