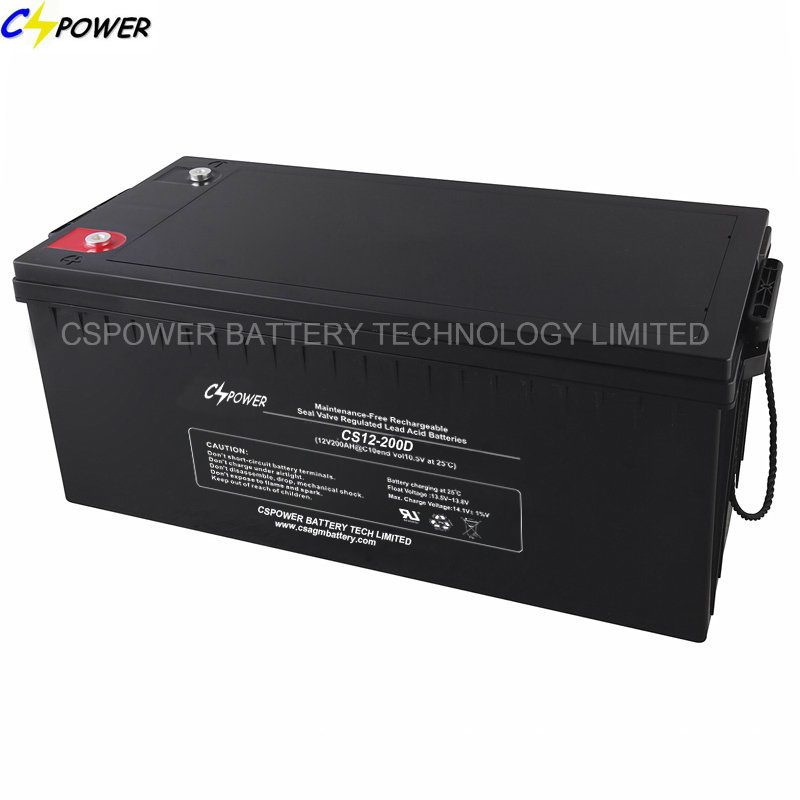

Lead Acid Battery for Solar Power System 12V200ah
| Price: | US $ 150-220/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
General Features
Absorbent Glass Mat (AGM) technology
For efficient gas recombination of up to
99% and freedom from electrolyte
Maintenance or water adding.
Not restricted for air transport-complies
With IATA/ICAO Special Provision A67.
UL-recognized component.
Can be mounted in any orientation.
Computer designed lead, calcium tin alloy
Grid for high power density.
Long service life, float or cyclic
Applications.
Maintenance-free operation.
Low self discharge.
Performance Characteristics
Nominal Voltage 12V
Number of cell 6
Design Life 12 years
Nominal Capacity 77oF(25oC)
10 hour rate (20.0A, 10.8V) 200Ah
5 hour rate (35.8A, 10.5V) 179Ah
1 hour rate (126A, 9.6V) 126Ah
Internal Resistance
Fully Charged battery 77oF(25oC) 3.5mOhms
Self-Discharge
3% of capacity declined per month at 20oC(average)
Operating Temperature Range
Discharge -20~60oC
Charge -10~60oC
Storage -20~60oC
Max. Discharge Current 77oF(25oC) 1000A(5s)
Short Circuit Current 3300A
Charge Methods: Constant Voltage Charge 77oF(25oC)
Cycle use 14.4-14.7V
Maximum charging current 60A
Temperature compensation -30mV/oC
Standby use 13.6-13.8V
Temperature compensation -20mV/oC
Characteristics
CSPOWER Deep Cycle series 12V Sealed free maintenance lead acid batteries up to 300Ah (D Type, "D"
Behind the model name stands for deep-cycle application) are designed to have a large amount of stored current discharged between charging sessions, with very heavy non-porous battery plates to withstand repeated major discharging and charging cycle(deep cycle). It uses a different chemistry for the plates active paste material, and a slightly stronger electrolyte than normal battery electrolyte, which allows for a much longer life in deep cycle applications.
Advanced Features:
1. Sealed and maintenance free operation
2. Non-Spillable construction design
3. Safety valve installation for explosion proof.
4. High quality and high reliability.
5. Exceptional deep discharge recovery performance.
6. Low self discharge characteristic.
7. Flexibility design for multiple install positions
8. The operating ambient temperature -40 to +65
9. Long life span 10-12 years
10. Using oxygen recombination technology: Maintenance-free
11. Pb-Ca-Sn alloy for plate grids: Less gassing and less self-discharging
12. High quality AGM separator: Extend cycle life and prevents micro short circuit
13. ABS material: Increases the strength of battery container. (Flame-retardant ABS is optional)
14. High purity raw material: Ensures low self discharge rate
15. Silver-coated copper terminals, brass insert terminals and lead terminals improve the electric conductivity Application
Engine starting, Communication equipment; Fire & security systems; Uninterruptible power supplies; Telecommunication systems; Electronic cash registers; Electronic test equipment; Processor based office machines; Control equipment; Electric powered bicycle and wheelchairs; Geophysical equipment; Marine equipment; Medical equipment; Portable cine & video lights; Solar powered systems; Television& video recorders; Vending machines; Alarm Systems, Computers; Power Tools; Emergency Lighting Systems; Toys; Geophysical Equipment; Vending Machines; Other standby or primary power supplies.
http://www.csagmbattery.com
AGM battery
Lead Acid Battery
Deep Cycle AGM Battery
Sealed Lead Acid Battery
Deep Cycle Battery
Absorbent Glass Mat (AGM) technology
For efficient gas recombination of up to
99% and freedom from electrolyte
Maintenance or water adding.
Not restricted for air transport-complies
With IATA/ICAO Special Provision A67.
UL-recognized component.
Can be mounted in any orientation.
Computer designed lead, calcium tin alloy
Grid for high power density.
Long service life, float or cyclic
Applications.
Maintenance-free operation.
Low self discharge.
Performance Characteristics
Nominal Voltage 12V
Number of cell 6
Design Life 12 years
Nominal Capacity 77oF(25oC)
10 hour rate (20.0A, 10.8V) 200Ah
5 hour rate (35.8A, 10.5V) 179Ah
1 hour rate (126A, 9.6V) 126Ah
Internal Resistance
Fully Charged battery 77oF(25oC) 3.5mOhms
Self-Discharge
3% of capacity declined per month at 20oC(average)
Operating Temperature Range
Discharge -20~60oC
Charge -10~60oC
Storage -20~60oC
Max. Discharge Current 77oF(25oC) 1000A(5s)
Short Circuit Current 3300A
Charge Methods: Constant Voltage Charge 77oF(25oC)
Cycle use 14.4-14.7V
Maximum charging current 60A
Temperature compensation -30mV/oC
Standby use 13.6-13.8V
Temperature compensation -20mV/oC
Characteristics
CSPOWER Deep Cycle series 12V Sealed free maintenance lead acid batteries up to 300Ah (D Type, "D"
Behind the model name stands for deep-cycle application) are designed to have a large amount of stored current discharged between charging sessions, with very heavy non-porous battery plates to withstand repeated major discharging and charging cycle(deep cycle). It uses a different chemistry for the plates active paste material, and a slightly stronger electrolyte than normal battery electrolyte, which allows for a much longer life in deep cycle applications.
Advanced Features:
1. Sealed and maintenance free operation
2. Non-Spillable construction design
3. Safety valve installation for explosion proof.
4. High quality and high reliability.
5. Exceptional deep discharge recovery performance.
6. Low self discharge characteristic.
7. Flexibility design for multiple install positions
8. The operating ambient temperature -40 to +65
9. Long life span 10-12 years
10. Using oxygen recombination technology: Maintenance-free
11. Pb-Ca-Sn alloy for plate grids: Less gassing and less self-discharging
12. High quality AGM separator: Extend cycle life and prevents micro short circuit
13. ABS material: Increases the strength of battery container. (Flame-retardant ABS is optional)
14. High purity raw material: Ensures low self discharge rate
15. Silver-coated copper terminals, brass insert terminals and lead terminals improve the electric conductivity Application
Engine starting, Communication equipment; Fire & security systems; Uninterruptible power supplies; Telecommunication systems; Electronic cash registers; Electronic test equipment; Processor based office machines; Control equipment; Electric powered bicycle and wheelchairs; Geophysical equipment; Marine equipment; Medical equipment; Portable cine & video lights; Solar powered systems; Television& video recorders; Vending machines; Alarm Systems, Computers; Power Tools; Emergency Lighting Systems; Toys; Geophysical Equipment; Vending Machines; Other standby or primary power supplies.
| Model NO. | Nominal Voltage (V) | Rated Capacity(AH) 20hrs/25 | Approx. Weight | Dimensions(mm) | Terminal Type | ||||||||
| kg | lbs | Length | Width | Height | Total Height | ||||||||
| mm | inch | mm | inch | mm | inch | mm | inch | ||||||
| CS12-1.2D | 12 | 1.2 | 0.55 | 1.21 | 98 | 3.86 | 45 | 1.77 | 52 | 2.05 | 59 | 2.32 | T0 |
| CS12-1.3D | 12 | 1.3 | 0.55 | 1.21 | 98 | 3.86 | 45 | 1.77 | 52 | 2.05 | 59 | 2.32 | T0 |
| CS12-1.9D | 12 | 1.9 | 0.87 | 1.91 | 178 | 7.01 | 35 | 1.38 | 60 | 2.36 | 66 | 2.60 | T0 |
| CS12-2.9D | 12 | 2.9 | 1.05 | 2.31 | 79 | 3.11 | 56 | 2.20 | 100 | 3.94 | 106 | 4.17 | T0 |
| CS12-2.3D | 12 | 2.3 | 0.90 | 1.98 | 178 | 7.01 | 34 | 1.34 | 60 | 2.36 | 66 | 2.60 | T0 |
| CS12-3.3D | 12 | 3.3 | 1.24 | 2.73 | 134 | 5.28 | 67 | 2.64 | 60 | 2.36 | 66 | 2.60 | T0 |
| CS12-3.5D | 12 | 3.5 | 1.28 | 2.82 | 134 | 5.28 | 67 | 2.64 | 60 | 2.36 | 66 | 2.60 | T0 |
| CS12-4D | 12 | 4 | 1.35 | 2.97 | 90 | 3.54 | 70 | 2.76 | 101 | 3.98 | 106 | 4.17 | T1 |
| CS12-4.5D | 12 | 4.5 | 1.53 | 3.37 | 90 | 3.54 | 70 | 2.76 | 101 | 3.98 | 106 | 4.17 | T1 |
| CS12-5D | 12 | 5 | 1.70 | 3.74 | 90 | 3.54 | 70 | 2.76 | 101 | 3.98 | 106 | 4.17 | T1 |
| CS12-5.5D | 12 | 5.5 | 1.86 | 4.09 | 151 | 5.94 | 65 | 2.56 | 94 | 3.70 | 100 | 3.94 | T1 |
| CS12-5D | 12 | 5 | 1.67 | 3.67 | 151 | 5.94 | 51 | 2.01 | 94 | 3.70 | 100 | 3.94 | T1 |
| CS12-6.5D | 12 | 6.5 | 2.00 | 4.4 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.94 | T1 |
| CS12-7D | 12 | 7 | 2.10 | 4.62 | 151 | 5.94 | 65 | 2.56 | 94 | 3.70 | 100 | 3.94 | T2 |
| CS12-7.2D | 12 | 7.2 | 2.20 | 4.84 | 151 | 5.94 | 65 | 2.56 | 94 | 3.70 | 100 | 3.94 | T2 |
| CS12-7.5D | 12 | 7.5 | 2.30 | 5.06 | 151 | 5.94 | 65 | 2.56 | 94 | 3.70 | 100 | 3.94 | T1 |
| CS12-8D | 12 | 8 | 2.35 | 5.17 | 151 | 5.94 | 65 | 2.56 | 94 | 3.70 | 100 | 3.94 | T1 |
| CS12-9D | 12 | 9 | 2.50 | 5.50 | 151 | 5.94 | 65 | 2.56 | 94 | 3.70 | 100 | 3.94 | T1 |
| CS12-10D | 12 | 10 | 3.10 | 6.82 | 151 | 5.94 | 98 | 3.86 | 94 | 3.70 | 100 | 3.94 | T2 |
| CS12-10D | 12 | 10 | 2.95 | 6.49 | 151 | 5.94 | 65 | 2.56 | 111 | 4.37 | 116 | 4.57 | T2 |
| CS12-12D | 12 | 12 | 3.35 | 7.37 | 151 | 5.94 | 98 | 3.86 | 94 | 3.70 | 100 | 3.94 | T2 |
| CS12-14D | 12 | 14 | 3.65 | 8.03 | 151 | 5.94 | 98 | 3.86 | 94 | 3.70 | 100 | 3.94 | T1 |
| CS12-15D | 12 | 15 | 4.80 | 10.56 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | T3 |
| CS12-17D | 12 | 17 | 5.00 | 11.00 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | T3 |
| CS12-18D | 12 | 18 | 5.00 | 11.00 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | T3 |
| CS12-20D | 12 | 20 | 5.50 | 12.10 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | T3 |
| CS12-24D | 12 | 24 | 7.60 | 16.72 | 175 | 6.89 | 166 | 6.54 | 125 | 4.92 | 125 | 4.92 | T4 |
| CS12-24D | 12 | 24 | 7.80 | 17.16 | 166 | 6.54 | 126 | 4.96 | 174 | 6.85 | 181 | 7.13 | T32 |
| CS12-26D | 12 | 26 | 8.10 | 17.82 | 175 | 6.89 | 166 | 6.54 | 125 | 4.92 | 125 | 4.92 | T4 |
| CS12-28D | 12 | 28 | 8.60 | 18.92 | 175 | 6.89 | 166 | 6.54 | 125 | 4.92 | 125 | 4.92 | T4 |
| CS12-28D | 12 | 28 | 9.00 | 19.80 | 166 | 6.54 | 126 | 4.96 | 174 | 6.85 | 181 | 7.13 | T4 |
| CS12-33D | 12 | 33 | 10.00 | 22.00 | 196 | 7.72 | 131 | 5.16 | 163 | 6.42 | 180 | 7.09 | T16 |
| CS12-35D | 12 | 35 | 10.20 | 22.44 | 196 | 7.72 | 131 | 5.16 | 163 | 6.42 | 180 | 7.09 | T16 |
| CS12-38D | 12 | 38 | 12.20 | 26.84 | 197 | 7.76 | 166 | 6.54 | 174 | 6.85 | 181 | 7.13 | T12 |
| CS12-40D | 12 | 40 | 13.0 | 28.7 | 197 | 7.73 | 166 | 6.54 | 174 | 6.85 | 181 | 7.13 | T12 |
| CS12-45D | 12 | 45 | 13.50 | 29.70 | 197 | 7.76 | 166 | 6.54 | 171 | 6.73 | 171 | 6.73 | T12 |
| CS12-50D | 12 | 50 | 16.20 | 35.64 | 230 | 9.06 | 138 | 5.43 | 211 | 8.31 | 224 | 8.82 | T12 |
| CS12-55D | 12 | 55 | 16.20 | 35.64 | 230 | 9.06 | 138 | 5.43 | 211 | 8.31 | 229 | 9.02 | T9/T16 |
| CS12-60D | 12 | 60 | 19.40 | 42.68 | 350 | 13.78 | 166 | 6.54 | 179 | 7.05 | 179 | 7.05 | T7 |
| CS12-65D | 12 | 65 | 20.50 | 45.10 | 350 | 13.78 | 166 | 6.54 | 179 | 7.05 | 179 | 7.05 | T9 |
| CS12-70D | 12 | 70 | 22.00 | 48.40 | 260 | 10.24 | 169 | 6.65 | 211 | 8.31 | 215 | 8.46 | T16 |
| CS12-80D | 12 | 80 | 23.40 | 51.48 | 260 | 10.24 | 169 | 6.65 | 211 | 8.31 | 215 | 8.46 | T14 |
| CS12-80D | 12 | 80 | 22.50 | 49.50 | 350 | 13.78 | 169 | 6.65 | 179 | 7.05 | 179 | 7.05 | T14 |
| CS12-90D | 12 | 90 | 27.00 | 59.40 | 307 | 12.09 | 169 | 6.65 | 211 | 8.31 | 215 | 8.46 | T16 |
| CS12-90D | 12 | 90 | 27.00 | 59.40 | 331 | 13.03 | 173 | 6.81 | 213 | 8.39 | 233 | 9.17 | T8 |
| CS12-100D | 12 | 100 | 29.80 | 65.56 | 331 | 13.03 | 173 | 6.81 | 213 | 8.39 | 233 | 9.17 | T10 |
| CS12-100P | 12 | 100 | 30.00 | 66.00 | 407 | 16.02 | 174 | 6.85 | 209 | 8.23 | 233 | 9.17 | T11 |
| CS12-110D | 12 | 110 | 31.10 | 68.42 | 331 | 13.03 | 173 | 6.81 | 213 | 8.39 | 233 | 9.17 | T10 |
| CS12-110P | 12 | 110 | 33.40 | 73.48 | 407 | 16.02 | 174 | 6.85 | 209 | 8.23 | 233 | 9.17 | T11 |
| CS12-120D | 12 | 120 | 36.50 | 80.30 | 407 | 16.02 | 174 | 6.85 | 209 | 8.23 | 233 | 9.17 | T11 |
| CS12-150D | 12 | 150 | 42.50 | 93.50 | 484 | 19.06 | 171 | 6.73 | 241 | 9.49 | 241 | 9.49 | T11 |
| CS12-160D | 12 | 160 | 49.00 | 107.80 | 494 | 19.45 | 204 | 8.03 | 208 | 8.19 | 232 | 9.13 | T18 |
| CS12-165D | 12 | 165 | 49.00 | 107.80 | 494 | 19.45 | 204 | 8.03 | 208 | 8.19 | 232 | 9.13 | T11 |
| CS12-180D | 12 | 180 | 56.50 | 124.30 | 522 | 20.55 | 240 | 9.45 | 216 | 8.50 | 240 | 9.45 | T11 |
| CS12-200D | 12 | 200 | 60.00 | 132.00 | 522 | 20.55 | 240 | 9.45 | 216 | 8.50 | 240 | 9.45 | T11 |
| CS12-230D | 12 | 230 | 64.00 | 140.80 | 522 | 20.55 | 240 | 9.45 | 216 | 8.50 | 240 | 9.45 | T9 |
| CS12-250D | 12 | 250 | 69.50 | 152.90 | 520 | 20.47 | 268 | 10.55 | 220 | 8.66 | 243 | 9.57 | T9 |
| CS12-250P | 12 | 250 | 68.00 | 149.60 | 522 | 20.55 | 240 | 9.45 | 216 | 8.50 | 240 | 9.45 | T11 |
| CS12-300D | 12 | 300 | 73.00 | 160.60 | 520 | 20.47 | 268 | 10.55 | 220 | 8.66 | 243 | 9.57 | T11 |
http://www.csagmbattery.com
AGM battery
Lead Acid Battery
Deep Cycle AGM Battery
Sealed Lead Acid Battery
Deep Cycle Battery
| Prod Model: | CS12-200D |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: | Dark |
| Apply: | UPS, Electric Power, Lighting, Soalr |
| Export Markets: | Global |
| Rate: | Low Discharge Rate |
| Warranty: | 3 Years |
| Expected Cycle Life: | 10~12 Years |
| Delivery Time: | 7 Days |
| Brand Name: | Cspower/OEM |
| Voltage: | 12V |
| Capacity: | 200ah |
| Type: | Lead-Acid Batteries |
| Usage: | Boat |
| Nominal Voltage: | 12V |
| Discharge Rate: | Low Discharge Rate |
| Shape: | Split-Shaped Battery |
| Rechargeable: | Chargeable |
