Ai Si Li (China) Test Equipment Co., Ltd. >> Linear Control Constant Temperature Humidity Stability Test Cabinet

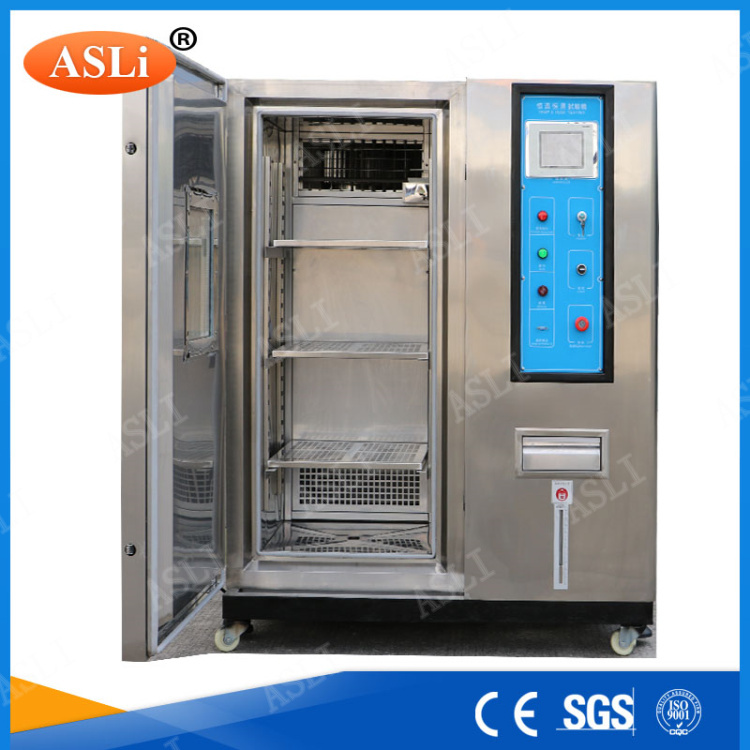

Linear Control Constant Temperature Humidity Stability Test Cabinet

Linear Control Constant Temperature Humidity Stability Test Cabinet
Price: US $ 5000-25000Set
Trade Terms: FOB,CFR,CIF
Min Order: 1Set
Pay Type: T/T,Western Union
Prod Model: TH-408-F
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Temperature Range: -70~+150 Degree C
Humidity Range: 20%~98%R.H.
Warranty: One Year
Power: AC220/380V
Leading Time: 30 Days
Indication Relolution Of Temperature: 0.1 C
Control Accuracy Of Temperature: +/- 0.5 C
External Dimension: W1200*H1950*D1350mm
Type: Environmental Simulated Testing Equipments

Product Description

Application:
Linear Control Constant Temperature Humidity Stability Test Cabinet is also called environment testing machine, used To test various Types of materials for their tolerances of heat, cold, dry, humidity.It is applied for quality Inspectionfor All types of electronic products, electric appliance, and products from communication, Instrument,Automobile, plastic, metal, food, chemical, building materials, medical and aerospace Industries.

Temperature Humidity Stability Test Cabinet Technical Parameters:
ModelTH-408(A~F)
Internal Dimension W*H*D (mm)600*850*800
Internal Dimension W*H*D (mm)1200*1950*1350
Temperature RangeLow Temperature(A:25degres Celsius B:0degres Celsius C:-20degres CelsiusD:-40degres Celsius E:-60degres Celsius F:-70degres Celsius)
High Temperature 150 degree Celsius
Humidity Range20%~98%R.H.(10%-98% R.H./ 5%-98% R.H, is optional, need Dehumidifier)
Indication relolution/
Distribution uniformity
Of temperature and humidity
0.1degres Celsius;0.1% R.H/±2.0degres Celsius;±3.0% R.H.
Control Accuracy of
Temperature and Humidity
±0.5degres Celsius;±2.5% R.H.
Temperature Rising/
Falling Velocity
Temperature rising appro*.0.1~3.0degres Celsius/min;
Temperature falling approx.0.1~1.5degres Celsius/min;
( Falling Min.1.5degres Celsius/min is optional)
Inner and Outer MaterialInterior material is SUS 304# stainless steel, exterior is stainless steel or see Cold-rolled steel with paint coated.
Insulation MaterialResistant to high temperature, high density, formate chlorine, ethyl acetum foam Insulation materials
Cooling SystemWind cooling or water cooling, (single segment compressor -40 degree Celsius,Double segment compressor -70degres Celsius)
Protection DevicesFuse-free switch, overloading protection switch for compressor, high and low
Voltage coolant protection switch, over-humidity and over-temperature protection Switch, fuses, fault warning system, water short storage warning protection
Optional AccessoriesInner door with operation hole, Recorder, Water Purifier, Dehumidifier
CompressorFrench Tecumseh Brand, Germany Bizer Brand
PowerAC220V 1pH 3 lines, 50/60Hz, AC380V 3pH 5 lines, 50/60Hz
Appro. Weight (Kg)320


Linear Control Constant Temperature Humidity Stability Test Cabinet Features:
1.Graceful appearance, circularly shaped body, surface treated with mist strips.Easy to operate, safe and Reliable.
2.Rectangular double-paned viewing window for viewing sample under test, with interior light
3.Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4.Water supply system that is externally connectable, convenient for refilling water into the humidifying pot And automatically recyclable.
5.French Tecumseh is used as compressor, with environment friendly refrigeration R23 or R404A
6.LCD display screen, capable of displaying the measured value as well as the set value and time.
7.The control unit has the functions of multiples segment program editing, with quick or ramp rates
Control of temperature and humidity.
8.Casters are provided for ease of mobility, with strong positioning screws.

Warranty: one year free warranty for whole set machine,lifelong time maintainance.

After-sale service: feedback within 8 hours after get the call or email.

Service:OEM service,Design service,Buyer lable service.

Any question or more Linear Control Constant Temperature Humidity Stability Test Cabinet information need, please do not hesitate to let us know, thank you.
Established in 1988, ASLi (China) Test Equipment Co., Ltd is specialized in manufacturing a variety of quality inspection instruments, testing equipments and other high-tech products which mainly include: Programmable constant Temperature & Humidity Test Chamber, High & Low Temperature Test Chamber, High & low Temperature Testers with Rapid Temperature Change, Walk-In humidity & temperature test chamber, Cool/Thermal shock test chamber, Salt spray chamber, aging tester, drying oven, xenon lights resistant to climate testing machine, UV resistant to climate testing machine, ozone aging test machine, sand and dust testing machine, tension tester, high and low temperature testing machine, servo carton compression tester, mechanical vibration tester and other quality testing instruments. Thanks to several decades of R&D efforts, the company has established itself as a leading provider of testing instruments of the industry, playing a crucial role in the research and development of high-quality and high-value products within the industry.

ASLi (China) Test Equipment Co., Ltd is authenticated by competent testing centers, including the National Measurement andTestingCenterand South China Center of Metrology. Famous for precision and reliability, these products have been extensively used within the industry, by research institutions, quality inspection agencies, and colleges and universities both at home and abroad, serving a worldwide customer base.

With unmatched quality advantage, a dynamic management team, professional customer services, superb manufacturing techniques and innovative research and development ideas, ASLi (China) Test Equipment Co., Ltd, supported by an international, standard and professional quality policy, is gradually becoming an international brand. Its products are manufactured in consistent with a number of world standards, IE, ISO, ASMT, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, CSA and CEN.
