Wuxi Hongba Mechanical Electrical Equipment Co., Ltd. >> Low Noise DC Linear Actuator for Dental Chair, Massage Bed, Beauty Bed

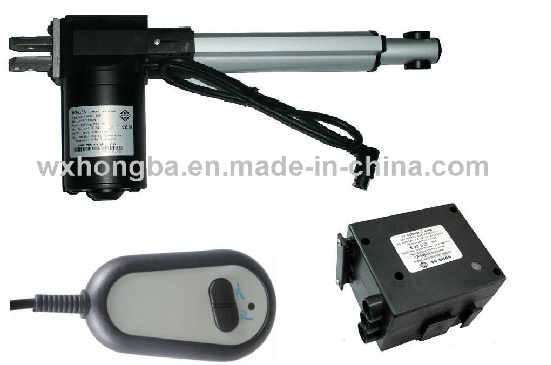

Low Noise DC Linear Actuator for Dental Chair, Massage Bed, Beauty Bed
| Price: | US $ 30/Piece |
|---|---|
| Trade Terms: | FOB,CFR,EXW |
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T,Paypal |
Dears Clients,
Linear actuators are customized and each model has his own temper.
Just leave your required parameters to us.
We will find a way to realize your design.
Good price and quality are always available.
Looking forward to your email.
Lena
Sales Rep.
Linear actuator ( hot sale )
HB-DJ801
12/24v dc gear motorIP43
load: 0-6000n5 to 40ºC
stroke: 25-800mmbuilt-in limit switch
speed: 4-25mm/soverload clutch
duty cycle: 10%aluminium body
( within 20min )
HB-DJ802
12-24v dc gear motorIP43
load: 800n, 1600n5 to 40ºC
stroke: 50-600mmbuilt-in limit switch
speed: 50-600mm/soverload clutch
duty cycle: 10%aluminium body
( within 20min )
HB-DJ806
12-36v dc gear motorIP65
load: 0-1200n-40 to 65ºC
stroke: 5-100mmbuilt-in limit switch
speed: 5-100mm/soverload clutch
duty cycle: 25%overheat protection
( within 24min )aluminium body
HB-DJ808
12-36v dc gear motorIP65
load: 0-7000n-40 to 65ºC
stroke: 50-600mmbuilt-in limit switch
speed: 5-35mm/soverload clutch
duty cycle: 25%overheat protection
( within 20min )steel body
HB-DJ805
12-36v dc gear motorIP66
load: 0-12000n-40 to 65ºC
stroke: 50-1000mmbuilt-in limit switch
speed: 6.5-60mm/soverload clutch
duty cycle: 20%overheat protection
( within 20min )steel body
======================= For high efficient communication ===================
Kindly contact me for accurate quot with the detailed parameters.
1- voltage (e.g 12v )
2- stroke (e.g. 100mm)
3- load (200N or 20kg)
4- other special requirement
It will be better if let me know your estimated quantity & application :)
===================== Looking forward to your inquiry =====================
HB-DJ801
Home Office Hospital application
Application
The application database is updated by our amazing customers every second.
Just let me know your story. You'll have our whole team to support your secret invention.
Parameters
Load
6000N max
We can customize the load capacity up to 6000N max. Smaller load brings lower price.
Stroke
800mm max
We can customize the stroke length up to 600mm max. Shorter stroke brings lower price.
Speed
25mm max
Speed and load is always a trade-off. A low force linear actuator will have greater speeds than a high force unit.
Noise
38db max
Quiet motion is necessay for home, office and hospital application.
There is positive or negative corelation between parameters of linear actuator.

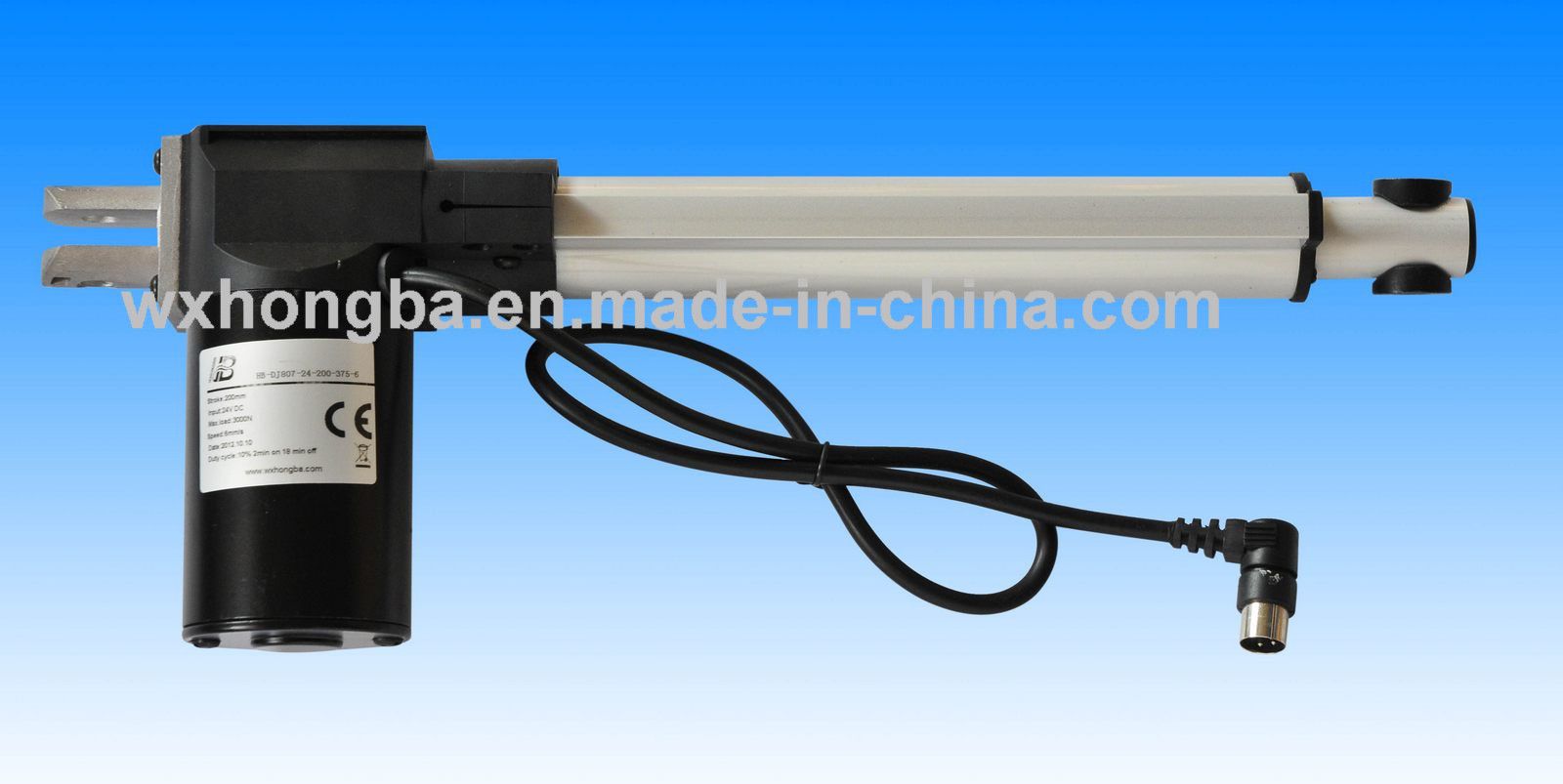

Photos
HB linear actuators have strong metal body to support longlife use.
Material
outer tube: aluminium alloy
sliding tube: aluminum alloy
motor housing: iron
Quality
You can enjoy two-year warrenty. Longterm business relationship will bring longer warranty.
Enquiry
Please provide below key info for us to quote you.
stroke, load, input voltage
rough description of your application
special requirements
please offer delivery address if freight cost is needed.
Contact
Lena Ju
Quotation will be available within 24h.
| Brand Name | HB |
| Model Number | HB-DJ801 |
| Features | Low noise |
| Input | 12v/24vDC |
| Max load | 6000N |
| Duty cycle | 10% |
| Speed | 4-15mm/s |
| Stroke | 50~600mm( optional) |

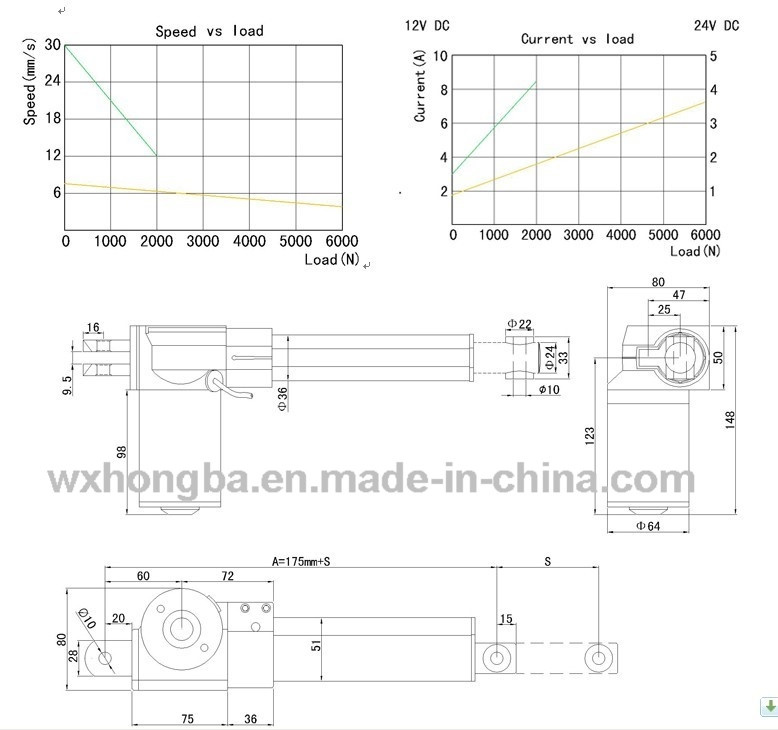

| Min installation Dimension | L=175mm+S |
| OperationTemperature | -26 to +65 certigrade |
| IP class | IP54 |
| Control Mode | Wired, Wireless |
| Limit switch | Inner |
| Certificate | CE, ISO9001 |
| Material | Aluminum |
| Covering color | Black |
| Place of Origin | Jiangsu, China |
| Applications | Medical Treatment, Furniture, Industry |
| Prod Model: | HB-DJ801 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: | Hb-DJ801 |
| Stroke: | 800mm |
| Load: | 6000n |
| Speed: | 25mm/S |
| Duty Cycle: | 10% |
| IP Grade: | IP43 |
| Retracted Length: | 175mm+Stroke |
| Limit Switch: | Built at Both Ends |
| Material: | Aluminium |
| Warranty: | One Year |
| Structure And Working Principle: | Brush |
| Operating Speed: | High Speed |
| Application: | Power Tools |
| Number Of Poles: | IP43 |
| Brand: | Hb |
| Type: | Electric Linear Actuator |
