Changzhou Longsheng Machinery Co., Ltd. >> Machine Make Plastic Stools 880t

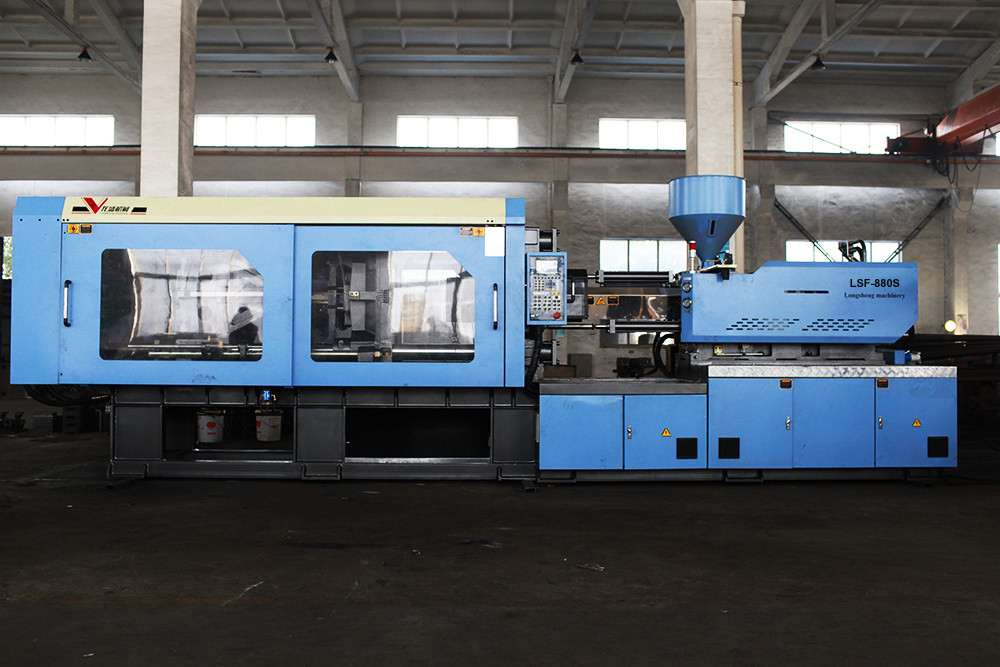

Machine Make Plastic Stools 880t
| Price: | US $ 96000/Set |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T |
Company Profile:
We are a Chinese professional PP Pallet makingmachine 880ton manufacturer & exporter, providing four types of injection machine with clamping force ranging from 600KN to 32000KN and injection weight from 68g to 40570g. With more than 20 years experience, we can produce low energy consumption and high efficient machine.
Advantages:
A)Energy saving: Save 30% to 60% compared to ordinary machine.
B) Easy operating: Parameters settings, system speed adjusting is simple digit function, operate on the control interface like on the ordinary machine.
C) High performance: High response (30ms-130ms), high stability, repetition.
D) Fast response: Energy saving, high precision and lower defectives and waste.
E) Spare parts: Come from Japan, Germany, Italy etc.
F) High precision: Correct the result to 2 decimal places.
G) Visual lubricating system: Protective machinery parts without abrasion and broken.
Important features:
A) Clamping system: Faster response, stable and high rigidity
B) Injection system: Accurate and flexible, lower rejection rate
C) Control system: Computer and simple operation, molding data memory system
D) Power system: Energy saving, high efficient and precise
E) Metal parts: The thickness of our frame, metal plate and wallboard are thicker than other company.
Service
A) Before sales service:
Our sales and technical team can provide the plastic mould design and relevant parameter suggestions to help them decide the most suitable machine.
B) During sales service:
We help customer to make the workshop display, such as electricity line and cooling water installation and provide free operating training.
C) After sales service:
Our engineers will help customer to install and debug the plastic molding machine. During the 1 year guarantee time, we offer all the damaged parts free of charge.
We are a Chinese professional PP Pallet makingmachine 880ton manufacturer & exporter, providing four types of injection machine with clamping force ranging from 600KN to 32000KN and injection weight from 68g to 40570g. With more than 20 years experience, we can produce low energy consumption and high efficient machine.
Advantages:
A)Energy saving: Save 30% to 60% compared to ordinary machine.
B) Easy operating: Parameters settings, system speed adjusting is simple digit function, operate on the control interface like on the ordinary machine.
C) High performance: High response (30ms-130ms), high stability, repetition.
D) Fast response: Energy saving, high precision and lower defectives and waste.
E) Spare parts: Come from Japan, Germany, Italy etc.
F) High precision: Correct the result to 2 decimal places.
G) Visual lubricating system: Protective machinery parts without abrasion and broken.
Important features:
A) Clamping system: Faster response, stable and high rigidity
B) Injection system: Accurate and flexible, lower rejection rate
C) Control system: Computer and simple operation, molding data memory system
D) Power system: Energy saving, high efficient and precise
E) Metal parts: The thickness of our frame, metal plate and wallboard are thicker than other company.
Service
A) Before sales service:
Our sales and technical team can provide the plastic mould design and relevant parameter suggestions to help them decide the most suitable machine.
B) During sales service:
We help customer to make the workshop display, such as electricity line and cooling water installation and provide free operating training.
C) After sales service:
Our engineers will help customer to install and debug the plastic molding machine. During the 1 year guarantee time, we offer all the damaged parts free of charge.
| item | unit | LSF880S | |||
| A | B | C | D | ||
| screw diameter | mm | 95 | 105 | 110 | 120 |
| screw L/D ratio | L/D | 24.3 | 22 | 21 | 19.2 |
| theoretical shot size | cm 3 | 3598 | 4396 | 4825 | 5742 |
| injection weight | g | 3275 | 4000 | 4390 | 5225 |
| Injection rate | g/s | 550 | 679 | 821 | 929 |
| Plasticizing capacity | g/s | 73 | 90.5 | 102.5 | 114 |
| Injection pressure | Mpa | 228 | 184 | 152 | 104 |
| Screw speed | rpm | 0-110 | |||
| Clamp force | KN | 8800 | |||
| Space between tie bars | mm | 1000*1000 | |||
| Toggle stroke | mm | 1000 | |||
| Max. mold height | mm | 1000 | |||
| Min. mold height | mm | 400 | |||
| Ejector stroke | mm | 325 | |||
| Ejector tonnage | KN | 200 | |||
| Ejector number | p | 21 | |||
| Max.pump pressure | Mpa | 16 | |||
| Pump motor power | KW | 37+45 | |||
| Heater power | KW | 58.6 | |||
| Machine dimension | m | 11.2*12.6*3.8 | |||
| Machine weight | t | 45 | |||
| Prod Model: | LSF880 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Clamp Force: | 8800kn |
| Sapce Between Tie Bars: | 1000*1000 |
| Toggle Stroke: | 1000 |
| Automation: | Automatic |
| Structure: | Horizontal |
| Computerized: | Computerized |
| Plastic Type: | Thermoplastic |
| Type: | Injection Moulding |
