Manual Glass Cutting Machine Glass Cutting Table
| Price: | US $ 4000-6000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |

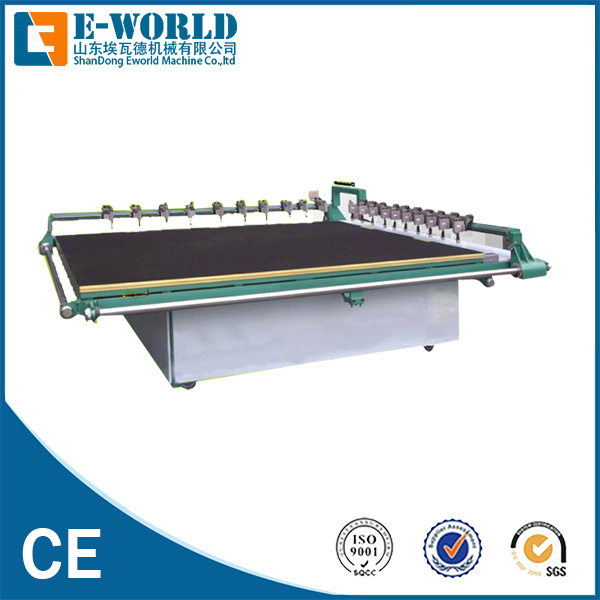

Manual Glass Cutting Machine 2620
This machine is suitable for mass cutting of squareness and rectangle sheet glass.Adjust the space of cutter rack according to the requirement of cutting precision,then push horizontal and vertical bridge to begin mass cutting.
Features:
Technical parameter:
Outline dimension: 3248*2720*820mm
Tabletop size: 2600*2000mm(L*W)
Glass sheet size: 2500*1900mm
Minimum cutting size: 20*20mm
Cutting glass thickness: 2-12mm
Cutting accuracy: parallelism: from -0.15 to +0.15
Catercorner from -0.20 to +0.20
Weight:700 KG

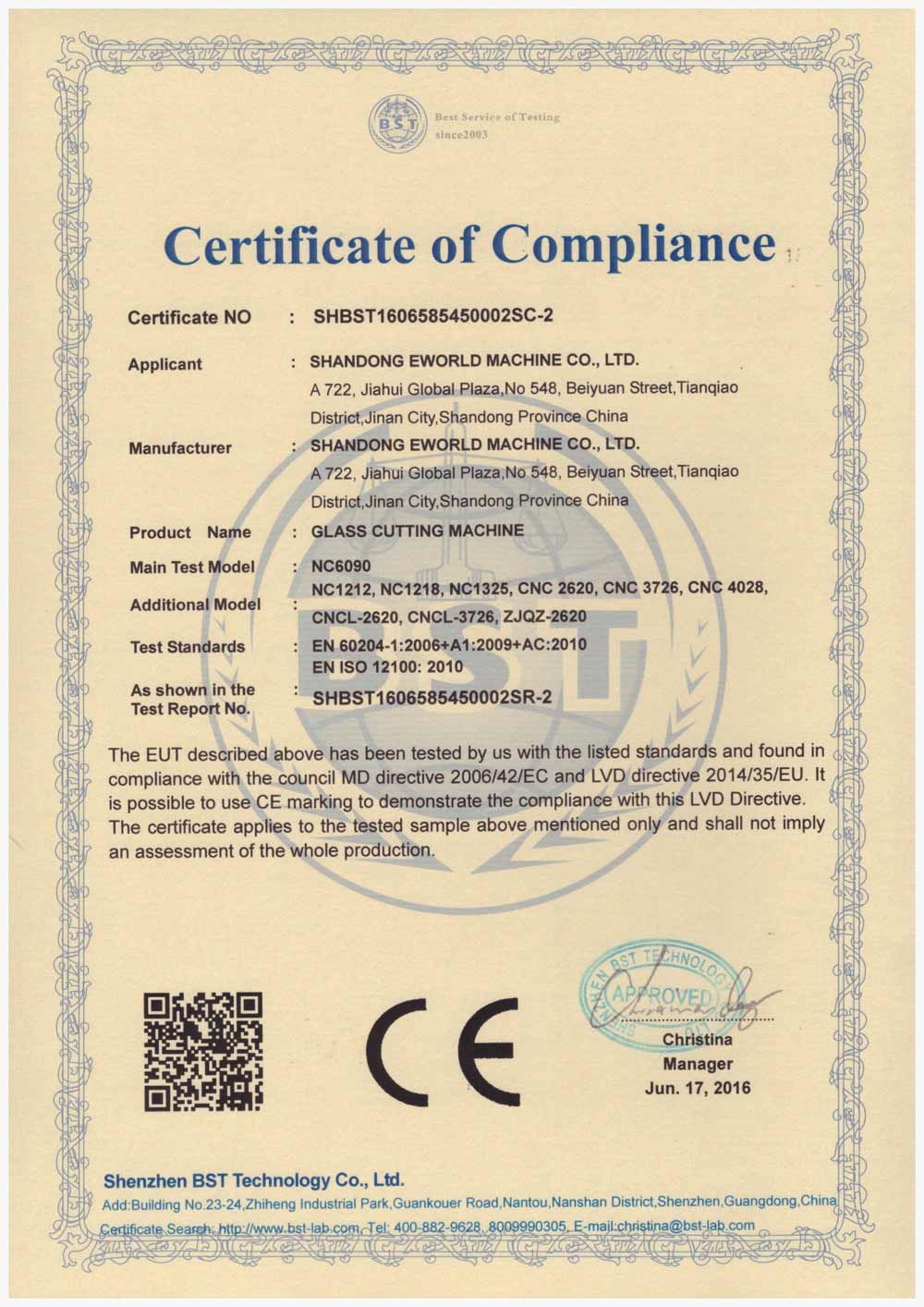

Certificate
Production process
This machine is suitable for mass cutting of squareness and rectangle sheet glass.Adjust the space of cutter rack according to the requirement of cutting precision,then push horizontal and vertical bridge to begin mass cutting.
Features:
- high efficiency and easy operation to cut with multi-cutting and cutting box can increase accordingly.

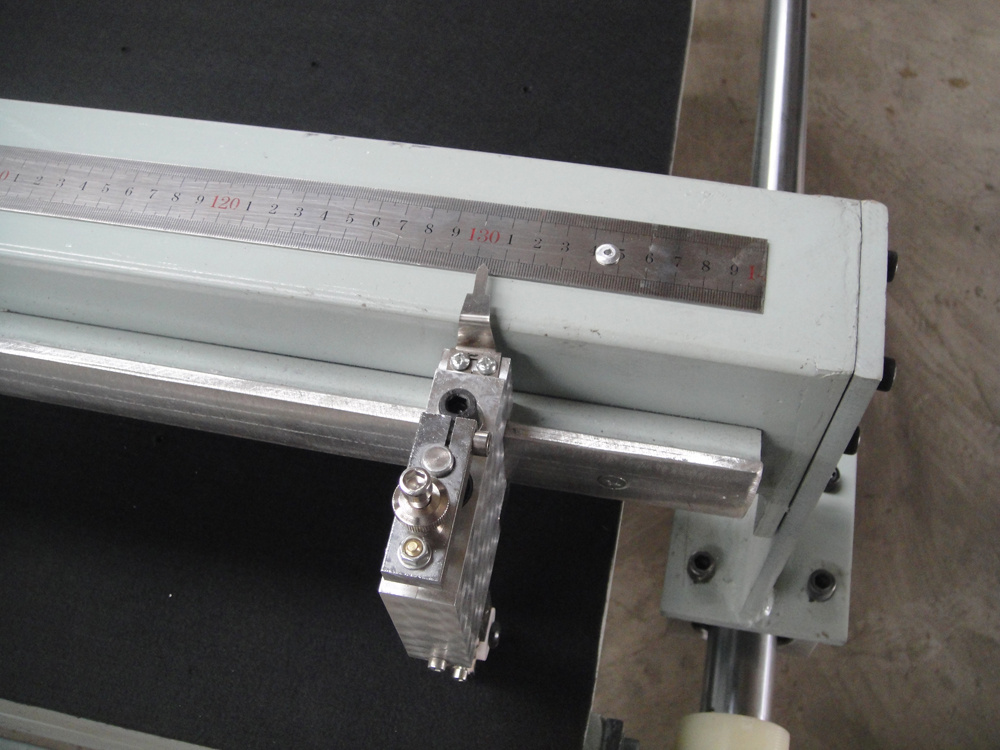

- Cutter holder with sel-lubricating, and easy to change the cutter wheel.
- high precision,long using life and attractive appearance.
Technical parameter:
Outline dimension: 3248*2720*820mm
Tabletop size: 2600*2000mm(L*W)
Glass sheet size: 2500*1900mm
Minimum cutting size: 20*20mm
Cutting glass thickness: 2-12mm
Cutting accuracy: parallelism: from -0.15 to +0.15
Catercorner from -0.20 to +0.20
Weight:700 KG
Certificate
Production process
| Prod Model: | JQZ 2620 |
|---|---|
| Type: | Glass Cutting Machine |
| Certification: | CE |
| Control System: | Manual |
| Glass Washing Machine Type: | Glass Cutting |
| Glass Edging Machine Type: | Glass Cutting |
| Grinding Head Number: | No |
