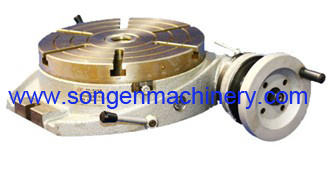

Manual Horizontal Rotary Tables
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1Set |
| Pay Type: | L/C,T/T |
1. These horizontal rotary tables are used for indexing, circular cutting, angular setting, boring, spot facing operations and similar work in conjunction with worktables on milling machines, boring machines, drilling machines etc.
2. On requests, a flange for connecting scroll chucks or indpendent 4-jaw chucks is specially supplied and packed independently;
3. As an optional accessories for these rotary table to extend performance range, a dividing plate accessory can be supplied and allows the operator to accurately divide the 360 deg rotation of the clamping surface into divisions of 2 through 66 and all numbers of divisions which are divisible by 2, 3 and 5 from 67-132.
Dimensions of the series of RT160A...1250A rotary tables:
Dimensions of RT1600A rotary table:
Dimensions of RT2000A rotary table:
2. On requests, a flange for connecting scroll chucks or indpendent 4-jaw chucks is specially supplied and packed independently;
3. As an optional accessories for these rotary table to extend performance range, a dividing plate accessory can be supplied and allows the operator to accurately divide the 360 deg rotation of the clamping surface into divisions of 2 through 66 and all numbers of divisions which are divisible by 2, 3 and 5 from 67-132.
| Specifications | RT160A | RT200A | RT250A | RT320A | RT400A | |
| Diameter of table, mm | 160 | 200 | 250 | 320 | 400 | |
| Morse taper of center hole | 2# | 3# | 4# | |||
| Diameter of center hole, mm | 25X6 | 30X6 | 40X10 | |||
| Width of T-slot, mm | 10 | 12 | 14 | |||
| Adjacent angle of table T-slot, Deg | 90 | 60 | ||||
| Width of positioning key, mm | 12 | 14 | 18 | |||
| Modules of worm gear | 1.5 | 1.75 | 2 | 2.5 | 3.5 | |
| Ratio of worm gear | 1:90 | |||||
| Graduation of table, Deg | 360 | |||||
| Rotating angle of table responding to one revolution of the worm, Deg | 4 (1 per graduation) | |||||
| Min. scale of vernier , Sec | 10 | |||||
| Indexing accuracy, Sec | 80 | 60 | ||||
| Max. load capacity, Kgf | 100 | 150 | 200 | 250 | 300 | |
| Net weight, Kgs | 16.5 | 22.5 | 33.5 | 65 | 125 | |
| Gross weight, Kgs | 21.5 | 31 | 44.5 | 76 | 145 | |
| Packing size(LXWXH), cm | 40X33X20 | 44X36X21 | 50X40X21 | 58X48X24 | 75X62X280 | |
| Specifications | RT500A | RT630A | RT800B | RT1000A | RT1250A |
| Diameter of table, mm | 500 | 630 | 800 | 1000 | 1250 |
| Morse taper of center hole | 5# | 6# | - | ||
| Diameter of center hole, mm | 50X12 | 75X14 | |||
| Width of T-slot, mm | 18 | 22 | |||
| Adjacent angle of T-slots, Deg | 45 | ||||
| Width of positioning key, mm | 18 | 22 | |||
| Modules of worm gear | 3.5 | 4.5 | 5.5 | 5 | |
| Ratio of worm gear | 1:120 | 1:180 | |||
| Graduation of the table, Deg | 360 | ||||
| Rotating angle of table responding to one revolution of the worm, Deg | 3 (1 Minute per graduation) | 2 | |||
| Min. scale of vernier , Sec | 10 | ||||
| Indexing accuracy, Sec | 60 | 30 | |||
| Max. load capacity, Kgf | 550 | 700 | 1250 | 2000 | 3000 |
| Net weight, Kgs | 215 | 345 | 845 | 1300 | 1900 |
| Gross weight, Kgs | 238 | 377 | 900 | 1400 | 2000 |
| Packing size(LXWXH), cm | 85X73X30 | 99X90X33 | 120X110X44 | 142X135X47 | 158X158X50 |
| Specifications | RT1600A | RT2000A | RT2500A |
| Diameter of table, mm | 1600 | 2000 | 2500 |
| Diameter of center hole, mm | 100 | 120 | 140 |
| Width of T-slot, mm | 22 | ||
| Angle between adjacent T-slots, Deg | 22.5 | ||
| Module of worm gear | 8 | ||
| Ratio of worm gear | 1:120 | 1:180 | |
| Graduation of the table, Deg | 360 | ||
| Rotating angle of table responding to one revolution of handwheel, Deg | 3 | 2 | |
| Min. graduation of vernier , Sec | 10 | ||
| Indexing accuracy, Sec | 60 | ||
| Max. load capacity, Kgf | 5500 | 8500 | 10000 |
| Net weight, Kgs | 4800 | 7000 | |
| Gross weight, Kgs | |||
| Packing size(LXWXH), cm | |||

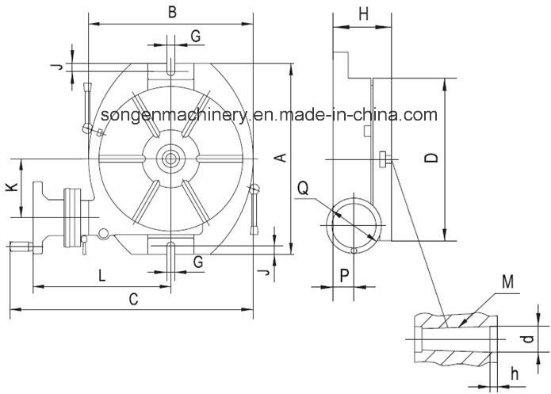

Dimensions of the series of RT160A...1250A rotary tables:
| RT160A | RT200A | RT250A | RT320A | RT400A | RT500A | RT630A | RT800B | RT1000A | RT1250A | |
| A | 260 | 290 | 330 | 410 | 530 | 640 | 820 | 980 | 1170 | 1400 |
| B | 196 | 236 | 286 | 360 | 450 | 560 | 700 | 890 | 1080 | 1300 |
| C | 332 | 369 | 422 | 493 | 612 | 752 | 898 | 1080 | 1295 | 1420 |
| D | Φ160 | Φ200 | Φ250 | Φ320 | Φ400 | Φ500 | Φ630 | Φ800 | Φ1000 | Φ1250 |
| G | 12 | 14 | 14 | 18 | 18 | 22 | 22 | 22 | - | 22 |
| H | 75 | 80 | 90 | 110 | 140 | 158.5 | 160 | 245 | 250 | 283 |
| J | 12 | 14 | 14 | 18 | 18 | 20 | 20 | 30 | - | 30 |
| K | 76 | 89.75 | 102.5 | 128.5 | 180 | 230 | 295 | 364 | 364 | 487.5 |
| L | 194 | 211 | 241 | 273 | 337 | 392 | 468 | 535 | 654 | 690 |
| M | MT #2 | MT #3 | MT #3 | MT #4 | MT #4 | MT #5 | MT #5 | MT #6 | MT #6 | - |
| P | 27 | 29.5 | 30.5 | 44 | 60 | 60 | 68 | 106 | 106 | 116 |
| Q | 125 | 125 | 125 | 125 | 160 | 160 | 220 | 250 | 250 | 250 |
| d | Φ25 | Φ30 | Φ30 | Φ40 | Φ40 | Φ50 | Φ50 | Φ75 | Φ75 | Φ75 |
| h | 6 | 6 | 6 | 10 | 10 | 12 | 12 | 14 | 14 | 14 |

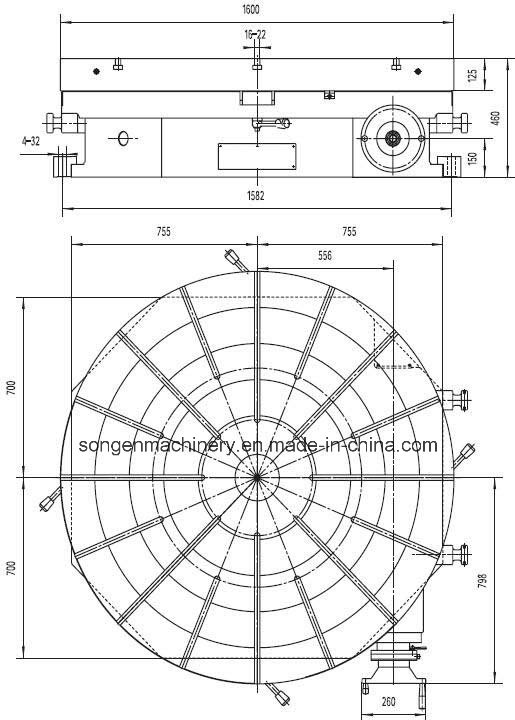

Dimensions of RT1600A rotary table:

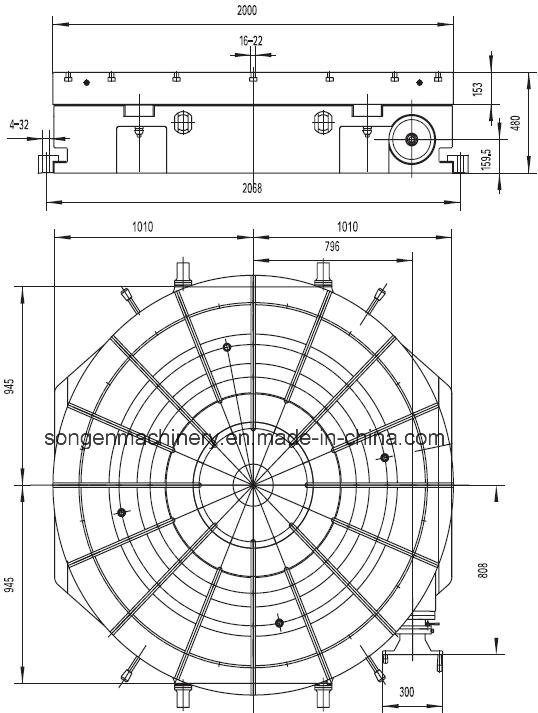

Dimensions of RT2000A rotary table:
| Prod Model: | Diameter 160-2500mm |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Top Table Diameters: | 160 - 2500 mm |
| Minimum Vernier Collar Graduation: | 10" Each Division |
| Table Circumference Graduation: | 360 Degrees |
| Logo Printing: | with Logo Printing |
| Size: | Middle |
| Customized: | Non-Customized |
