| Prod Model: |
MT2200(Intelligent model) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Length: |
2100±50mm |
| Width: |
555mm |
| Power: |
AC 220V 50Hz |
| Table Lifting Scope: |
200-450mm |
| Type: |
Medical Table |
| Material: |
Metal |
| Folded: |
Folded |
Product Description

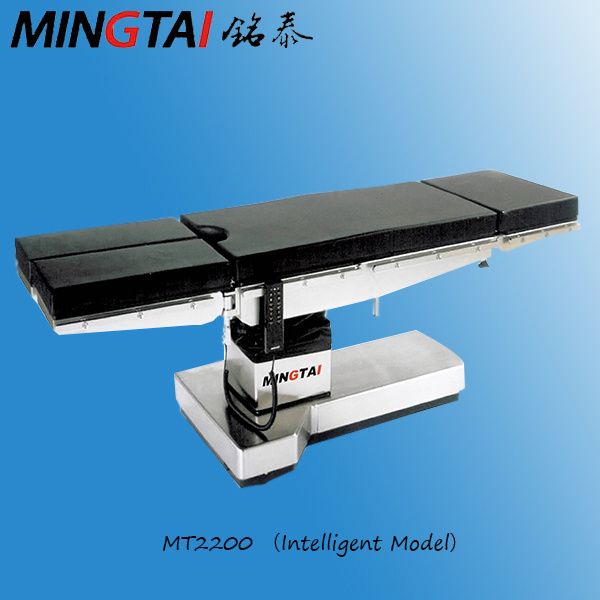

MT2200 Electrical hydraulic operating table ( Intelligent)
MT2200 electric operating table imported advanced foreign technology, it is a high grade multi-function operation table in China. The operating table is applicable to the orthopedic, thoracic and abdominal surgery, brain surgery, ENT, obstetrics and gynecology, urology, and other general surgical.
Configuration:
Electrical hydraulic system from Germany(optional)
Electrical hydraulic system from Taiwan (standard configuration)
SUS#304 stainless steel from Korea
High pré Cising straight slideway from Taiwan
Superior wide of operating table: 555mm
Double independent electric controlling pattern
Memory sponge mattress
Optional hanging orthopedics tractor
Feature:
1.
Full set of hydraulic control system with imported hydraulic components, enables it to achieve low noise, high security and reliability
2.
"T" shaped base design, providing an active space for medical staffs' feet, and reduce the fatigue of the long surgery
3.
Widen table width to fit the current clinical requirements. The table is divided into five activities: Head board, back board, built-in kidney elevator, hip board, leg board
4.
With bed movement adjustment automatically lock system, to improve the clinical safety
5.
Overall table is made of SUS304 stainless steel. Base and pillar cover also is made of 304 stainless steel, mattresses with low pressure, memory, fire-retardant features and can prevent pressure sores
6.
Leg panels can be replication, outreach and removable, convenient for adjusting and urinary surgery, kidney bridge does not affect the X-ray perspective, meanwhile convenient for the gallbladder and kidney surgery
7.
Translation function of the large size 550mm extra-wide bed design, through X-ray area large to facilitate small and medium-sized C-arm film
8.
Operation table base has fix or movement function, flexible movement and stable fix, different function accessories made by 304stainless steel can be provided for different surgery needed
9.
Built-in high-capacity battery, no external power supply when used to increase the operation safety
10.
With non-slip floor side rail safety design to prevent the attachment falling, in case of injury
11.
Can be upgraded to configure the same brand Hanging Orthopedics Tractor
12.
Machine design is in line with IEC60601-2-46, different accessories can be configured to suit the different needs of surgery
13.
Square lifting column is made by Germany, which has 4 times safety factor and 8 fasteners which can make it stable
14.
Optional mechanical brake and electric brake
15.
Three lifting column which has got national patent makes the table lifting height can achieve the Germany's high standard
16.
With a key reset function, to facilitate operate the operating table
