| Prod Model: |
Operating Table (Dt-12D Electric Hydraulic table) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Table Height: |
550mm~850mm |
| Length And Width: |
2100mm X 550mm |
| Reversed Trendelenburg: |
20o |
| Trendelenburg: |
20o |
| Left Inclining Angle: |
15o |
| Right Inclining Angel: |
15o |
| Upward Folding Angle Of Back Rest: |
75o |
| Downward Folding Angle Of Back Rest: |
15o |
| Upward Folding Angle Of Head Rest: |
35o |
| Downward Folding Angle Of Head Rest: |
90o |
| Material: |
Metal |
| Type Of Hospital Bed: |
Electric Bed |
| Folded: |
Unfolded |
| Using Ambient: |
Hospital |
| Certification: |
ISO13485 |
Product Description

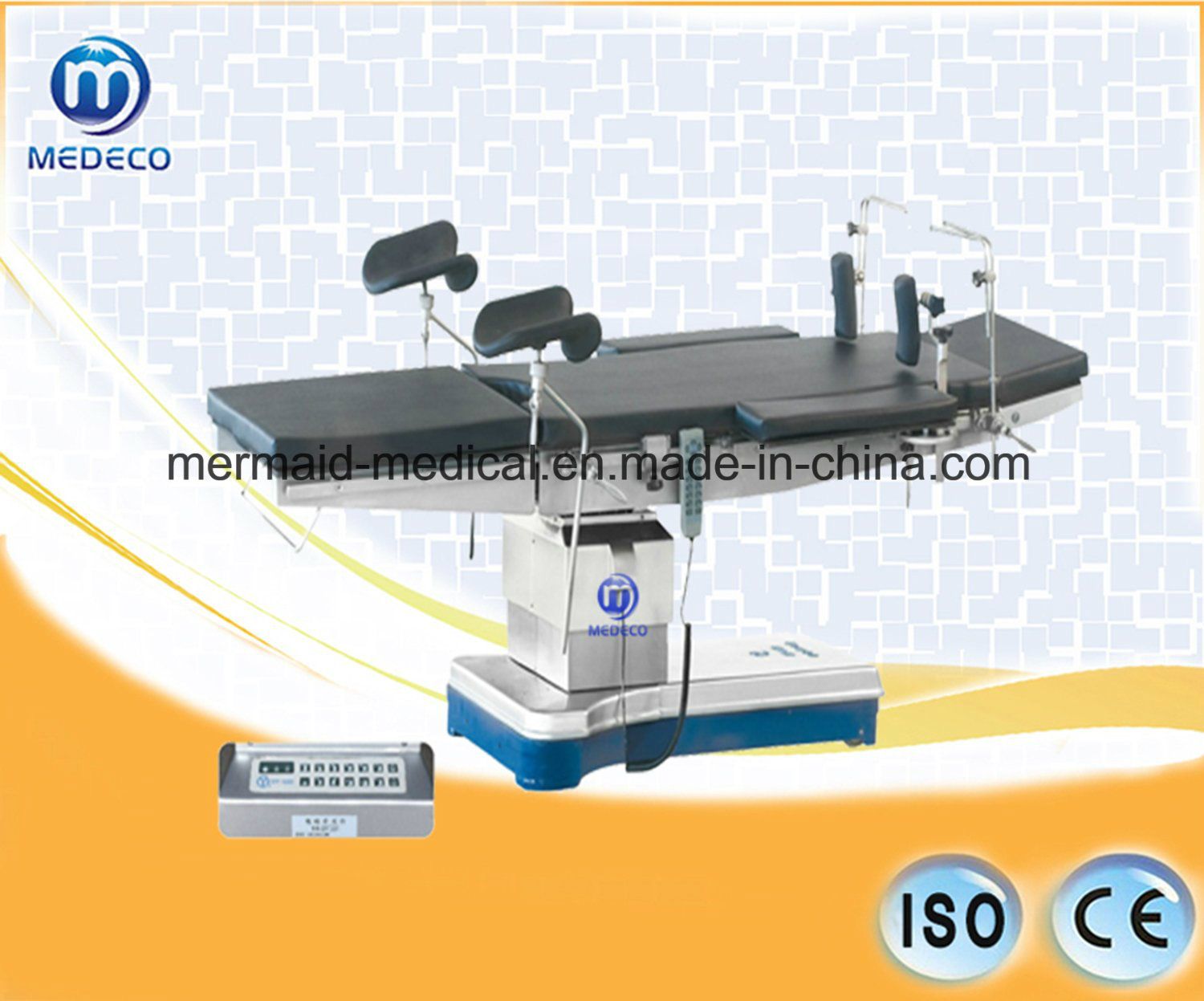

OPERATINGTABLE DT-12D ELECTRIC HYDRAULIC (CE APPROVED MEDICAL EQUIPMENT)
OPERATING TABLE DT-12DDESCRIPTION Medical equipment Electric hydraulic operating table constructed with five sections, suit for all kinds of surgeries .
Especially the head section and the leg section's adjustment is assisted by Germany imported gas spring system to make it more convenient and easily.
Medical equipment Electric hydraulic operating table equipped with keyboard and micro-control to drive oil hydraulic to control right position angle for tabletop control, safety lock and the controller for movements can be turned off automatically to prevent maloperation
Longitudinally moved minimum 300mm to leave more space of table to suit for C arm X-ray for the whole patient body.
Medical equipment Electric hydraulic operating table adjusted easily to the enough lower places (the lowest height 550mm) so that the doctor can sit to operate cerebral surgery ophthalmology.
Soft PVC, antistatic, latex free, radiolucent pads are also available in a new anti-decubitus material, which meets the safety standard, the surface is anti-bacteria, easily clean, according with disinfection needs.
The table base shell is made of aluminum alloy ,the pedestal and other main accessories entirely made in stainless steel, The surface is plated by anti-static cover for easy cleaning and preventing from scratching and collision, Nice sculpt supply enough impulsion resistance and stability ,easy to be clean and disinfect without dead angle leftover.
Electric hydraulic operating table equipped with shoulder-back composited bending button, which will be convenient for kidney and Gallbladder surgery. SPECIFICATION Table height: 550mm~850mm
Length and width: 2100mm x 550mm
Reversed Trendelenburg: 20º
Trendelenburg: 20º
Left inclining angle: 15º
Right inclining angel: 15º
Upward folding angle of back rest: 75º
Downward folding angle of back rest: 15º
Upward folding angle of head rest: 35º
Downward folding angle of head rest: 90º
Downward folding angle of leg rest: 90º
Horizontal Movement Range: ≥300mm
Standard Accessories 1. Pads
2. Leg bracket
3. Arm rest
4. shoulder rest
5. Body support
6. Anesthetic Screen
7. Body restraint strap
OPERATING TABLE DT-12D ELECTRIC HYDRAULIC (CE APPROVED MEDICAL EQUIPMENT)
