Huatong (FATO) Group Co., Ltd. >> Metal 9 Folded Floor Stand Cabinet (with inner door)

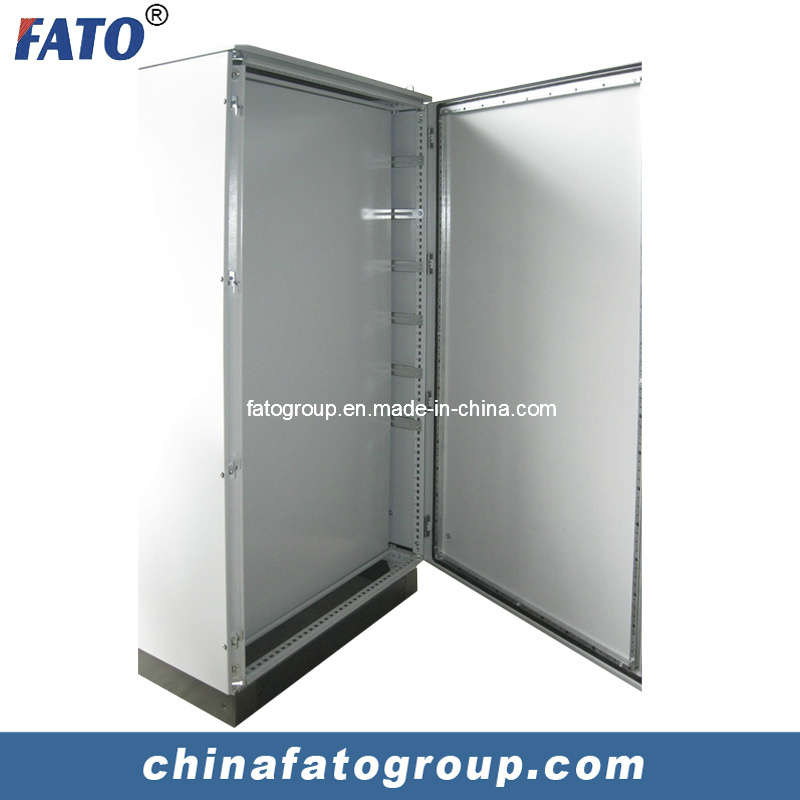

Metal 9 Folded Floor Stand Cabinet (with inner door)
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
Product Description:
Metal Floor Standing Cabinets comprise 9 folded profile structure, un-welded at the top and bottom of the frame, with removable screws in vertical profiles for strength and versatility with the cabinets. Thermosetting expoxy polyester powder coating in textured RAL 7032 or RAL7035
Components:
1. Profiles Components frame
2. Top Cover and Base
3. Back Door and Front Door
4. Mounted Plate
5. Side Panels
Door: With inner door or without inner door
Metal Floor Standing Cabinets comprise 9 folded profile structure, un-welded at the top and bottom of the frame, with removable screws in vertical profiles for strength and versatility with the cabinets. Thermosetting expoxy polyester powder coating in textured RAL 7032 or RAL7035
Components:
1. Profiles Components frame
2. Top Cover and Base
3. Back Door and Front Door
4. Mounted Plate
5. Side Panels
Door: With inner door or without inner door
| Dimension(mm) |
No. of Doors |
No. of Hinges |
||
| Height | Width | Depth | ||
| 1000 | 1000 | 300 | 2 | 4 |
| 1200 | 800 | 300 | 1 | 2 |
| 1200 | 1000 | 300 | 2 | 4 |
| 1200 | 1200 | 400 | 2 | 4 |
| 1400 | 800 | 400 | 1 | 3 |
| 1600 | 800 | 300 | 1 | 3 |
| 1600 | 800 | 400 | 1 | 3 |
| 1600 | 1000 | 300 | 2 | 6 |
| 1600 | 1000 | 400 | 2 | 6 |
| 1600 | 1200 | 300 | 2 | 6 |
| 1600 | 1200 | 400 | 2 | 6 |
| 1800 | 800 | 400 | 1 | 3 |
| 1800 | 1200 | 400 | 2 | 6 |
| 1800 | 1600 | 400 | 2 | 6 |
| 2000 | 800 | 400 | 1 | 3 |
| 2000 | 1000 | 400 | 2 | 6 |
| 2000 | 1200 | 400 | 2 | 6 |
| Prod Model: | MS |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
