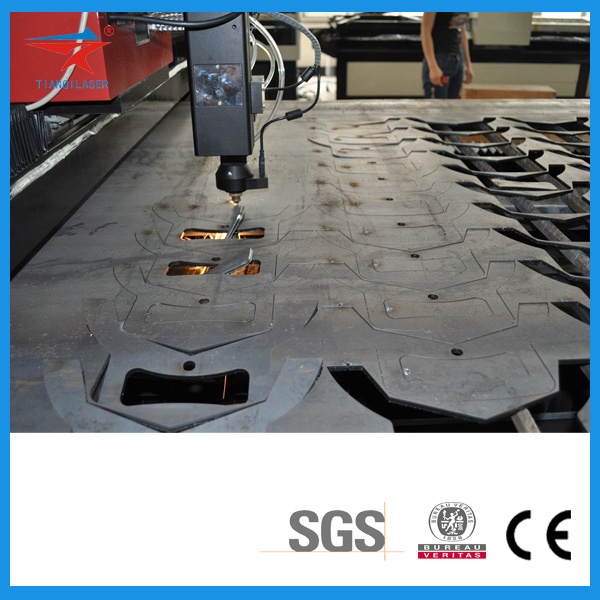

Metal Bookshelf Laser Cutting Machine (TQL-LCY620-3015)
| Price: | US $ 40000-80000/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
Machine Feature
Compared with NC Punch, YAG laser cutting machine have many advantages
(1) Any complicated structure which can be drawn on the computer also can be manufactured by CNC YAG laser cutting machine
(2) If the product image has been drawn on the computer, the product can be manufactured immediately without opening mould technology. It can be used to develop new products rapidly and reduce cost considerably
(3) Both plan cutting and surface trimming can be finished by automatic tracing system of YAG laser cutting machine
(4) Laser cutting machine can accomplish the complicated process which is hard to achieve by NC punch
(5) The machine can make high grade production with smooth surface, which is hard to obtained by NC punch
(6) Round pipe & Square pipe cutting can be finished by our YAG laser cutting machine, which can not be processed by CNC punching machine
(7) Molding body (less than 0.5 meters thick) which need the slot-hole processing can be easily achieved by YAG laser cutting machine, which can not be finished by CNC punching machine

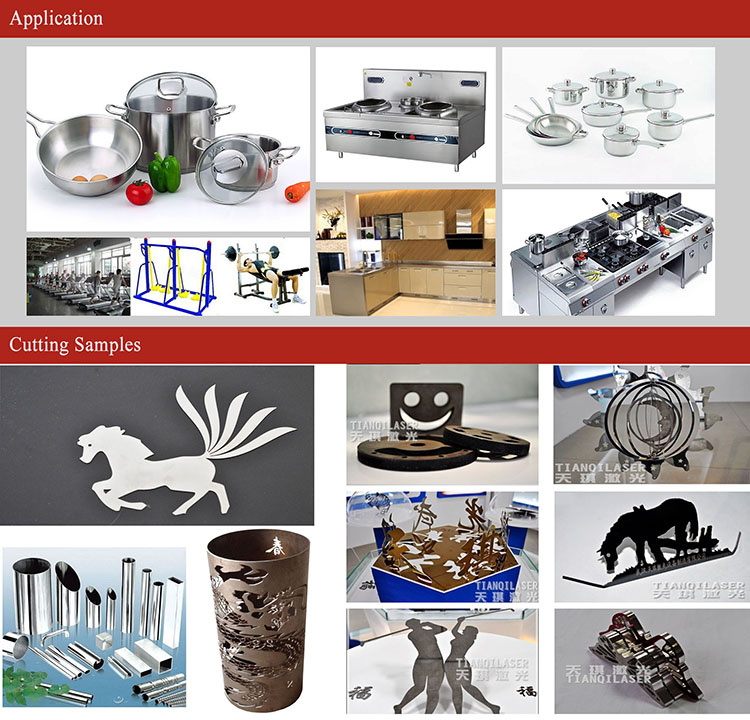

1. Application Industrial:
Kitchenware, Saw Blade, Mechanical Parts, Electrical Equipment Components, Electric Cabinet, Textile Machinery, Billboard, Automobile, Cooking Utensil, Hardware, Crafts, Spectacle Frame, Earrings And Rings, Advertising Words And Letters, Adornment, Subway Parts, Household Appliances, Electrical Appliance, Precision Components
Tools, Gifts and Crafts, Ultra-fine Contours, Filigree Structural Components, Gearing Components
Reamer, Mobile Phone Housing, Aviation
2. Applicable materials:
Stainless steel, carbon steel, mild steel, alloy steel, copper, brass, aluminum sheet, titanium sheet and pipe, especially good at processing various high hard and brittle alloy materials.
3. Equipment Feature and Technical Advantages
1) Steel plate cutting thickness: 0.1mm-10mm.
2) Any complicated structure which can be drawn on the computer can be manufactured by YAG Laser Cutting Machine.
3) If the product image has been drawn on the computer, the product can be manufactured immediately without opening mould technology. It can be used to develop new products rapidly and reduce cost.
4) Both 2D&3D cutting and surface trimming can be finished by automatic tracing system of YAG Laser Cutting Machine.
Technical parameters
| Model | TQL-LCY620-4115 | TQL-LCY620-3015 | TQL-LCY620-2513 |
| Laser power | 620W | 620W | 620W |
| Laser type | YAG | YAG | YAG |
| Laser wave | 1064nm | 1064nm | 1064nm |
| Processing scale | 4100mm X 1500mm | 3000mm X1500mm | 2500mm X 1300mm |
| X axis stroke | 4100mm | 3000mm | 2500mm |
| Y axis stroke | 1500mm | 1500mm | 1300mm |
| Laser line width | 0.25mm | 0.25mm | 0.25mm |
| Cutting thickness | 8mm | 8mm | 8mm |
| Location precision | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m |
| Re-location precision | ±0.02mm | ±0.02mm | ±0.02mm |
| Power demand | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Cooling way | Water cooling | Water cooling | Water cooling |
| Weight | 5T | 5T | 5T |
| Outline size | 6040*3530*1660 | 5000*2530*1660 | 4460*2300*1660 |

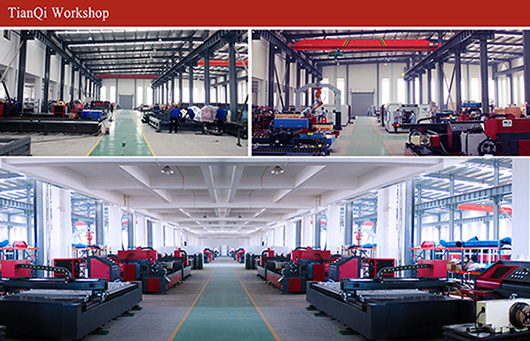

Company Shows
After-Sale Service

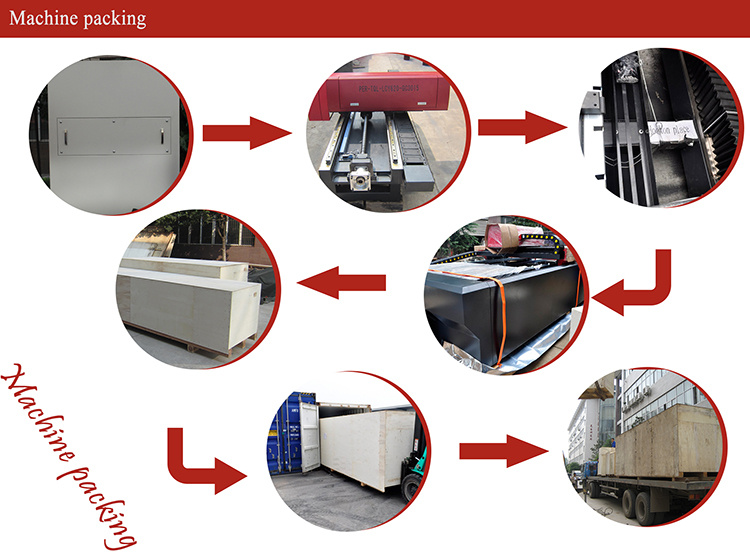

Packing and Shipping
| Prod Model: | TQL-LCY620-3015 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: | AC380V |
| Gas: | Oxygen |
| Control Mode: | Manual |
| Cutting Mode: | Laser |
| Type: | Metal |
| Laser Type: | YAG |
| Laser Power: | 620W |
| Export Markets: | Global |
| Processing Scale: | 3000mm X 1500mm |
