Guangdong Sunli Intelligent Logistics Equipment Co., Ltd. >> Metal Storage Decking Heavy Duty Shelf
Metal Storage Decking Heavy Duty Shelf
| Price: | US $ 77-80/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 10/Set |
| Pay Type: | L/C,T/T,D/P |

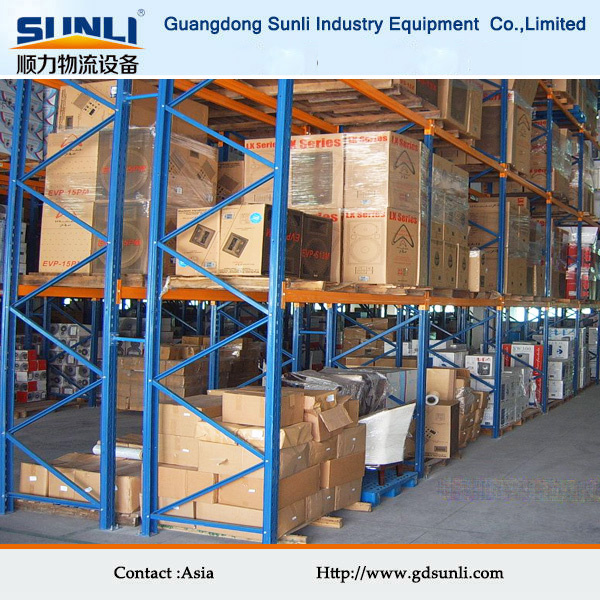

Metal Storage Decking Heavy Duty Shelf

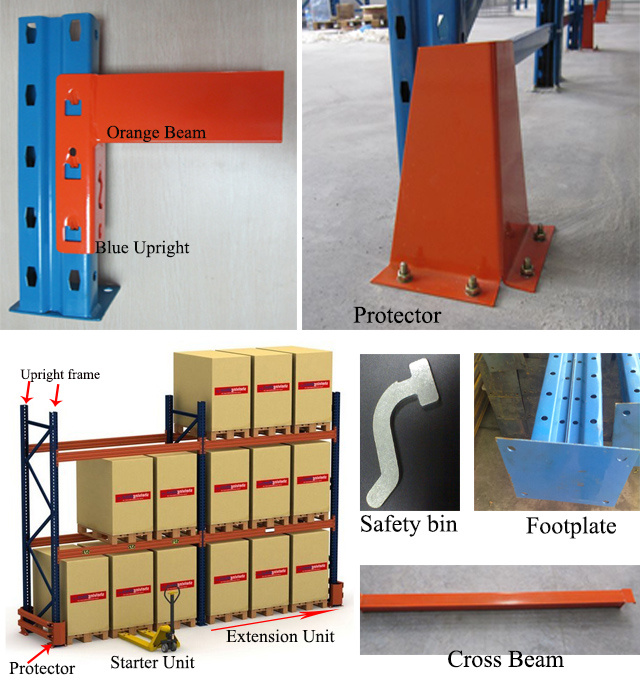

Basic sturcture of rack units:

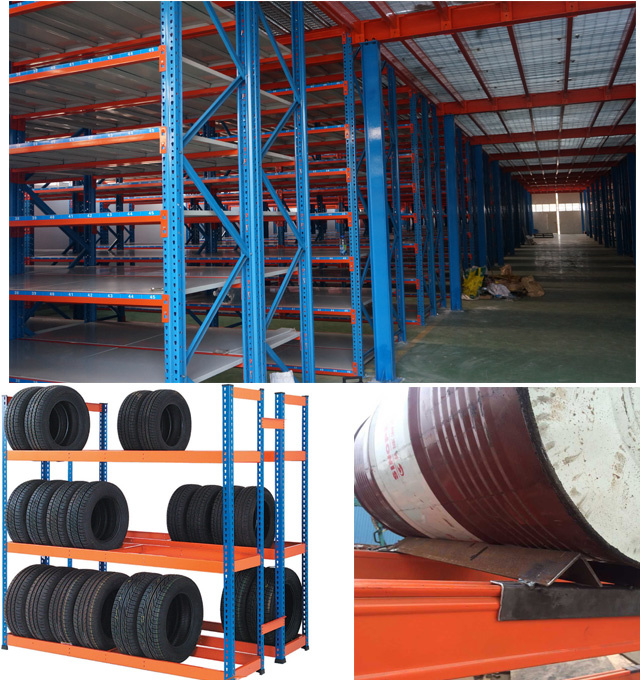

This style can be used in warehouse to store:

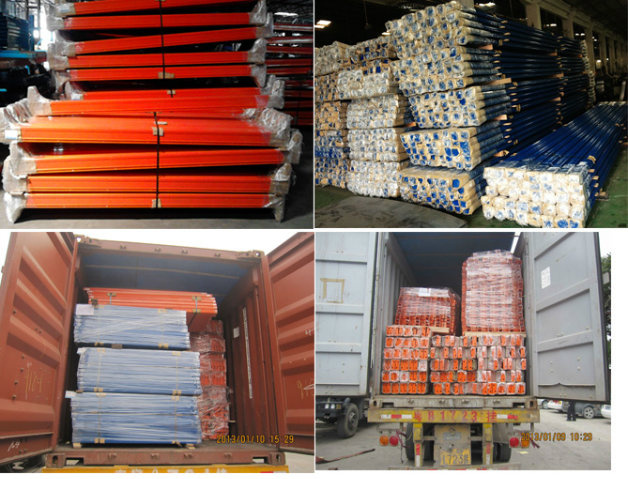

Package and delivery details:
Please inform us the listed questions in your inquiry for quick quotation:
A) The warehouse outline drawing
B) The size of shelf (length*width*height)
C) How many layers you want
D) The loading capacity of each layer
E) The RAL color you want
Pallet style rack and light duty style rack;:
| Material | Q235B steel cold roll forming |
| Loading | max 4000kg per layer |
| Size | 1, Length: 3600mm 2, Depth: 800-1200mm 3, Height: max 9000mm 4, Standard size: L2500mm*D1200mm*H6000mm |
| Section | 1, Beam: 80*45/90*45/100*45/110*45/100*50 2, Upright: 80*60/88*68/90*60/100*68/110*68 3, Thickness: 1.5-2.5mm |
| Features | 1, Most widely used storage rack, permits only one deep pallet load and back-to-back structure; 2, Make all pallets accessible from the aisle; 3, Rack loading are topped with cross beams or metal decking, MDF, 4, Fro all indsutry warehouse |
| Adjustable | 75mm per pitch |
| Storage style | First in- first out, first levels can be on the ground |
| Production time | within 21 days at most |
| Colour | Blue uright and orange beam; Others: yellow, grey |
Basic sturcture of rack units:
This style can be used in warehouse to store:
Package and delivery details:
Please inform us the listed questions in your inquiry for quick quotation:
A) The warehouse outline drawing
B) The size of shelf (length*width*height)
C) How many layers you want
D) The loading capacity of each layer
E) The RAL color you want
Pallet style rack and light duty style rack;:
| Products | Heavy Duty Pallet Racking | Medium/Light Duty Racking |
| Loading Capacity | 1000-5000KG/layer | 100-1000KG/layer |
| Specification | Main Racking: L2000*D1200*H4800mm*4layers (Designed by different demands) Beam: L1800~5000mm Layer board: 2.5~3mm Customized sizes and colours are welcomed | Main Racking: L1500*D1200*H3000mm*4layers (Designed by different demands) Beam: L1200~2500mm Layer board: 1.0~2.0mm Layers: steel panel/net or wood veneer Customized sizes and colours are welcomed |
| Prod Model: | SL-H023 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Fast Delivery: | Within 10 Days |
| Certifications: | CE/SGS/As4084/ISO9001 |
| Export: | More Than 10 Years |
| Surface: | Powder Coated or Galvanized |
| Feature: | Corrosion Protection |
| Style: | Heavy Duty Storage Rack |
| Item: | Heavy Duty Shelf |
| Material: | Steel and Reinforced Concrete |
| Structure: | Rack |
| Mobility: | Adjustable |
| Closed: | Closed |
| Development: | New Type |
| Serviceability: | Common Use |
| Height: | 0-8m |
| Weight: | 1000-5000kg/Layer |
The Rack Manufacturers&Designers, Guangdong Sunli Intelligent Logistics Equipment Co., Ltd are the national distributor of Industrial Steel Storage Racks and AS&RS system. We supply industrial rack solutions worldwide and in every major manufacturing and distribution sector. Sunli was formed in 2005.
Various products include Automatic storage system, pallet rack, carton flow, shelving, wire decking, safety&protection equipment, mobile carts, pallet, stackers and more.
As a turn-key solution, capabilitiesInclude warehousing design, consulting, in-house installation crews and new&unique solutions for closing, downsizing and new facilities. Stock items available.
What sets us apart from our competitors is the large inventory that we stock. We don't sell out of other dealer inventories. Instead, we carry rack stocks in Guangdong province - with hundreds/ thousands of beams, uprights and wire decksOn hand for immediate distribution.
Our team can design you a system for your project needs. We quote exactly what you need from our large in-stock inventory of teardrop,
New style, & many more beams and uprights. This allows us to meet your needs and ship your order when you need it.
Sunli motto "Value beyond expectations"
Various products include Automatic storage system, pallet rack, carton flow, shelving, wire decking, safety&protection equipment, mobile carts, pallet, stackers and more.
As a turn-key solution, capabilitiesInclude warehousing design, consulting, in-house installation crews and new&unique solutions for closing, downsizing and new facilities. Stock items available.
What sets us apart from our competitors is the large inventory that we stock. We don't sell out of other dealer inventories. Instead, we carry rack stocks in Guangdong province - with hundreds/ thousands of beams, uprights and wire decksOn hand for immediate distribution.
Our team can design you a system for your project needs. We quote exactly what you need from our large in-stock inventory of teardrop,
New style, & many more beams and uprights. This allows us to meet your needs and ship your order when you need it.
Sunli motto "Value beyond expectations"
