Categories
CITICHL HEAVY INDUSTRIES CO., LTD. >> Mineral Concentrator Fiber Glass Shaking Table Price

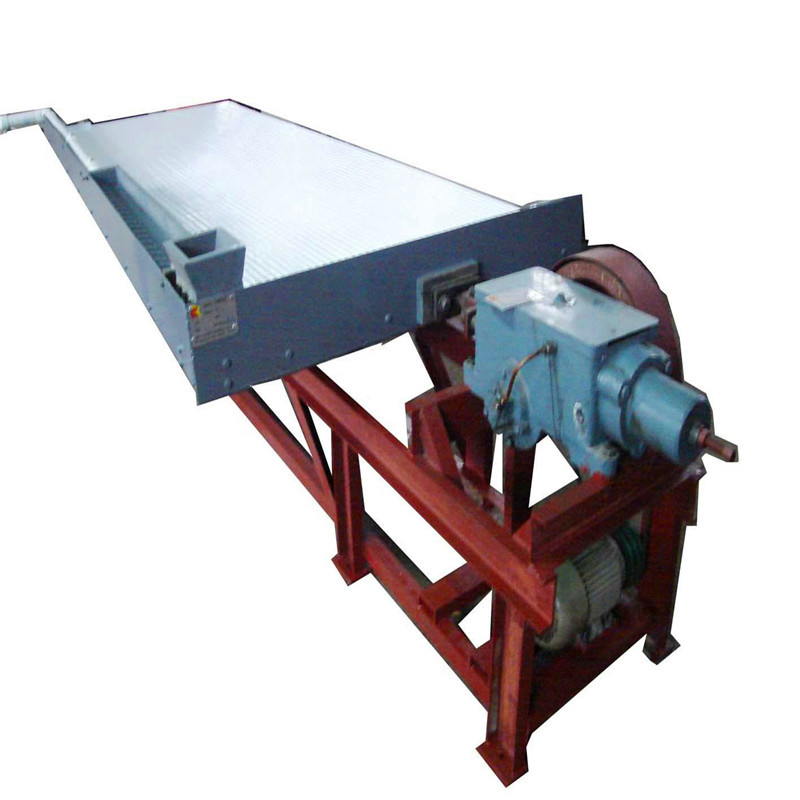

Mineral Concentrator Fiber Glass Shaking Table Price
| Price: | US $ 1300-1600/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
Mineral Concentrator Fiber Glass Shaking Table price
Introduction
Shaking table is applied in ore dressing of non-ferrous metals, ferrous metals, rare metals, such as tungsten, tin, iron, manganese, chrome, titanium, gold, niobium and bismuth, as well as different process of roughing, cleaning, and scavenging.
Working principle
6-S Gold Shaking table beneficiation process is conducted in a copy of the tilted table, ore grain group from the Angle of mesa feeder trough into, by lateral flushing water supply for the sink at the same time, under the influence of vibration wave, according to the proportion and granularity theory, and vertical movement and lateral movement. YanTai proportion and granularity of different ore grain along the movement direction of the respective trapezoidal shed, respectively from the concentrate and tailings discharge side of different position, the final is divided into concentrate, middlings and tailings.
Feathures
-Classification, Concentration, Recovery of Metals, Minerals from Placer or Alluvial Fields.
-Works as a Wash Plant, Gravity Separation Plant for small to medium size Dredging Operation.
-Classification, Pre-Concentration & Recovery of Primary (Hard Rock) deposits of Gold, Base Metals, Ferrous Metals, Diamonds and other Minerals.
Main technical parameter:
| Model | Ls<6-s> |
| Table structure | Glass steel material, composite structure |
| Table specification | 1500-1850X4500mm |
| Sorting area | 7.5 m2 |
| Table direction | Left and right |
| Horizontal gradient | 0.5 degree |
| Stroke | 10-30mm |
| Stroke frequency | 240-360c/min |
| Feed size: Coarse sand 2-0.5mm; fine sand 0.5-0.074mm; slurry 0.074mm | |
CITICHL Heavy Industries CO., LTD. The former was CITIC Heavy Machinery Co., Ltd. It was used be subsidiary of CITIC heavy machinery co., ltd. The company was founded in 1981 and finished joint stock reform in 2005, which is located in Luoyang city, capital city of nine dynasties in ancient times.
With a garden-like industrial park and modern standard plant covering 80000 square meters, CITICHL possesses advanced equipments, technologies and detecting methods. After more than 30 years development, the company has developed into a collectivized one with product designing, manufacture, installation and technical services.
The products comprise all the equipments used in mining, ore dressing, hoisting, coal preparation, crushing and grinding, cement plant, metallurgic and steel rolling, environment protection, and also power generator, heavy-duty gear reducers and large-sized castings and forgings, etc.
Guarantee and After-sales Service:
1-One years guarantee for main machine, excluding wearing parts
2-Experienced technicians and guidance are available
3-24 hours technical support by e-mail, by phone.
4-Use friendly English user manual
5-Engineers could be dispatched to the quarry site, if requested by customer.
| Prod Model: | Ls<6-s> |
|---|---|
| Name: | Shaking Table |
| Table Structure: | Glass Steel Material, Composite Structure |
| Table Specification: | 1500-1850X4500mm |
| Sorting Area: | 7.5 M2 |
| Table Direction: | Left and Right |
| Horizontal Gradient: | 0.5 Degree |
| Stroke: | 10-30mm |
| Stroke Frequency: | 240-360c/Min |
| Type: | Gravity Separator |
| Voltage: | 380V |
| Weight: | <1T |
| Certification: | CE |
| Warranty: | 1 Year |
| Customized: | Non-Customized |
| Condition: | New |
| Material: | Fiber Glass Steel |
| Color: | as Requirement |
