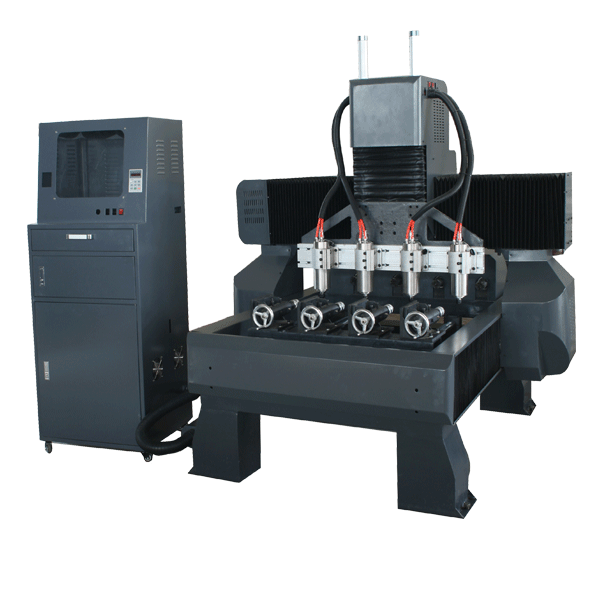

Mini Flat Engraving Machine, 4 Heads CNC Machine

Mini Flat Engraving Machine, 4 Heads CNC Machine
Price: US $ 8400-8500/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P
Prod Model: FCT-7090C&W-4S
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rotary Length: 800mm
Spindle Power: Water Cooling 1.5kw*4
Transmission: Xz Ball Screw, Y Gear Rack
Xyz Rails: Taiwan PMI
Spindle Layout: Horizontal
Feed Mode: Mechanical
Controlling Mode: CNC
Certification: ISO
Spindle Number: 4 Spindles

Product Description


Features:
1.It can engrave several materials at one time, which greatly increasing the working efficiency.
2.It can do not only rotary engraving but also flat engraving.
3.Movable working table with high engraving accuracy.
4.Inverter,reducer and spindle are one attached one which make the machine working more stablely and efficiently.
5.XYZ axis use anti-dust system, prevent dust during working, make sure the long lifaspan of square parts.
6.Professional CNC control system, can compatible with many kinds CAM software, such as TYPE3/ARTCAM/UG/PRO-E/MASTERCA.



Technical parameters:


Model

FCT-7090C&W-4S

Rotary diameter

230mm

Rotary length

800mm

Flat working size

700×900×200mm

Spindle power

Water cooling 1.5KW×4

Spindle rotate

6000~24000RPM

Tool diameter

3.175,4,6mm

Machine structure

Industry square tube structure

Transmission

XZ ball screw,Y gear rack

XYZ rails

PMI square rails

Dust-proof system

XYZ high quality dust cover

Mechanical accuracy

less than 0.03/300mm

Engraveing speed

8000mm/min

Data transmission

by pc connection directly or USB

Support format

G code or HPGL

Working voltage

AV220V/380V 50Hz

Net weight

600kg


Application:
Rotary engraving: Making relief on cylinder items, stair rail, handrail, desk or chair legs, tea-tray, the human body, avatar, buddha statue, etc.
Flat engraving: Antique reproduction furniture, Solid wood carving, arts and crafts carving, ornamental engraving, furniture-processing, instrument making, etc.

OurServices
1.Under normal usage, 1 year for the whole machine,lifelong technical support.
2.Free technical support for lifetime, including training at factory, door to door service, such as training/ installment/ adjustment / maintenance.
3.Door to door service, you just need to bear round-trip tickets and accommodation.
4.Free installation,testing,training before shipping.
5.Advice for the best solutions for your requirements.


FAQ
1.How about the payment?
 T/T in advance. We can accept 40% deposit before mass production , and balance paid to us before delivery date.
2.How long is thedelievery time?
 For standard machines, it would be 7 days; For non-standard machines and customized machines according to clients specific requirements, it would be 14~25 days.
3.How about shipment details?
 On the basis of FOB or CIF price, we will arrange shipment for you.Others will be arranged by yourself.



Contact us now:
Cindy
Cellphone:+8615715603006




Anhui Aikefa (Flycut) CNC Technology Co., Ltd. is a high-tech enterprise which researches, develops, sells and services of numerical control and photoelectric products. The company has independent license for export and import, bears "Innovate technology and create values for users" as its managing idea to design kinds of practical numerical and photoelectric products that can be easily operated.

Teamwork Suppliers: France Schneider, American GSI, Germany Rofin, Italy HSD, Italy Colombo, Taiwan PMI, Taiwan TBI, Taiwan Syntec, Japan Panasonic, Japan Yaskawa, etc.

Service concept: Innovation, technology, services

Innovation: Scientific and technological innovation as the basis for enterprise development, not only in technical innovation in products, markets, management, structure and concepts to innovation.

Technology: Continuously improve staff skills, enhance their technical content; Innovative business model to meet market and customer requirements.

Service: Professional engineers to provide you with software and training machines, regular visits to track your usage. QQ, Skype, WeChat, telephone, 24-hour online open.
