Shenzhen Consnant Technology Co., Ltd. >> Modular Design IP55 Outdoor Cabinet Good Rustproof Galvanized Steel Sheet

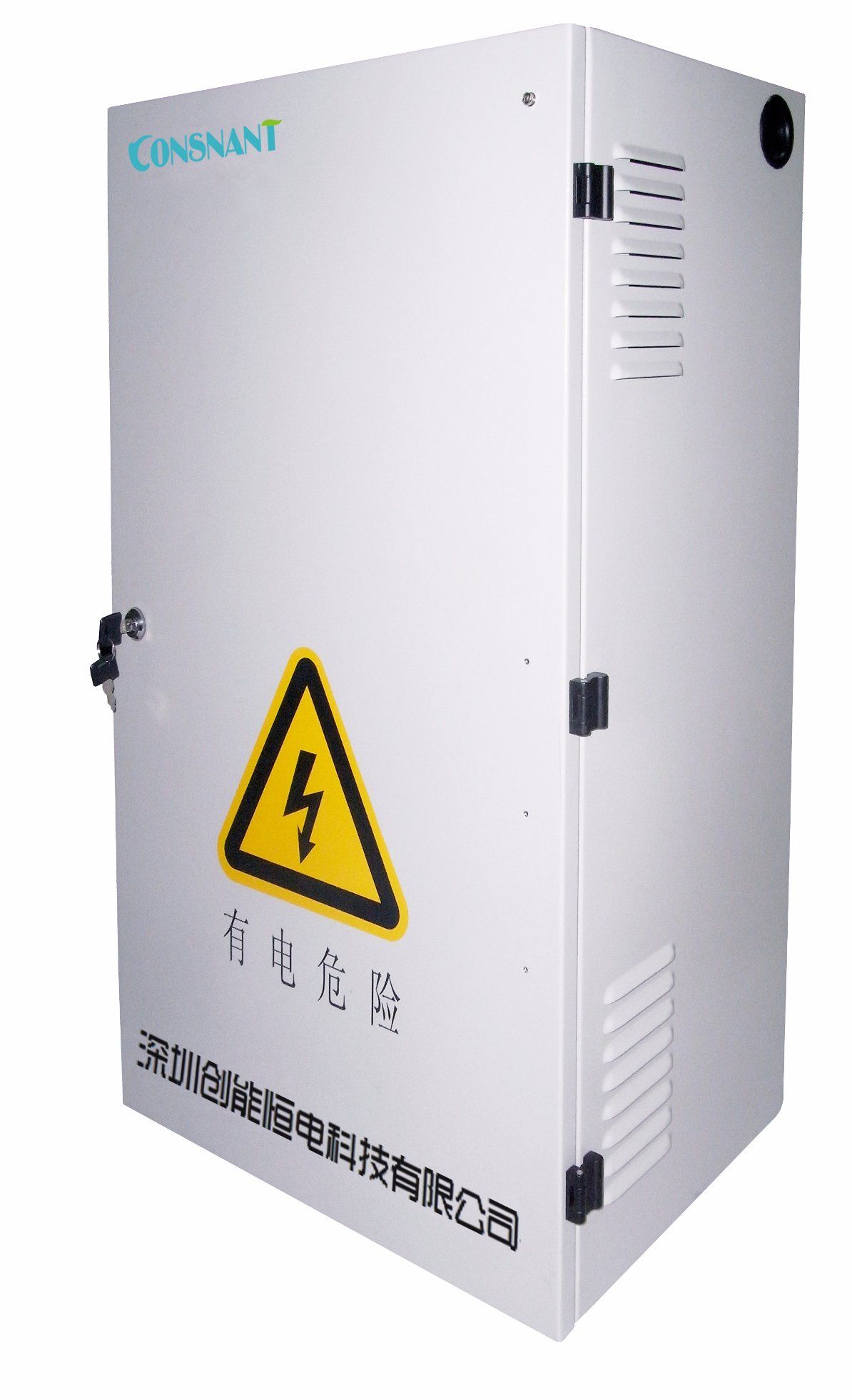

Modular Design IP55 Outdoor Cabinet Good Rustproof Galvanized Steel Sheet
| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 10/Piece |
| Pay Type: | T/T |
Modular Design IP55 Outdoor Cabinet With Good Rust-proof Capacity
Quick Details (Sample parameters for reerence):
| Flame Material: | Galvanized Steel Sheet | User Space: | 40U (Adjustable) |
|---|---|---|---|
| Delivery Form: | Fully Equiped | Wall Ply: | 45mm |
| Security: | Three Point Security Locks,European Standard | Protection Level: | 55 |
| Internal dimension(W*D*H) | 800mm*800mm*1800mm |
| External dimension(W*D*H) | 905mm*1080mm*2105mm |
| Floor area(W*D) | 905mm*905mm |
| Base height | 200mm |
Brief Introduction:
Two series outdoor cabinet:
- Functional cabinet that covers power cabinet, electronics cabinet and battery cabinet;
- 1U holding cabinet(outdoor macro site, RRU),2U holding cabinet, 3U holding cabinet
Advantages:
- Small volume, site can be obtained easily.
Single cabinet covers area < 1 square meter. The site is easy to obtain, so the cabinet can be applied to the top of the hill, roof, street and other scenes;
- Flexible housing and strong adaptability
Support the installation of main equipment, transmission equipment, power supply, battery and other equipment from different manufacturers and different installation methods.
- Subdivision temperature control, energy conservation and emission reduction
Fine sub-class temperature control save energy maximumly; cabinet with insulated sandwich panels weaken the impact of solar radiation on the cabinet temperature
- Modular design, convenient provision
Modular design support bulk shipment and site installation, and easy to expand
- Good rust-proof capacity, strong structure
Aluminum profile frame structure, outside panel adopts color steel panel with excellent performance of antiseptic, passing the salt spray test for 960H.
Specification:
| Item | Specification |
| Weight | 105KG( not including electronics and battery) |
| User space | 40U |
| Flame material | Galvanized steel sheet |
| Wall material | Color steel sandwich panel: color steel+polystyrene(polyurethane PU optional) |
| Wall thick | 45mm |
| Door lock | Three point security locks,European standard , |
| IP | IP55 |
| Cable laying arrangement. | 8*Φ50mm |
| Delivery form | Fully equiped |
| Operating temperature | -40ºC~+70ºC |
| Cabinet relative humidity | 5%~100% |
| Air Circulation & Heat exhaust arrangement | |
| Temperature control | PC300 |
| TCO2 power dissipation | 230W @L35/L35 |
| TCO2 refrigerating capacity | 400W @L35/L35 |
| Heater power consumption(optional) | 500W |
| Prod Model: | CNWC |
|---|---|
| Material: | Mainly CRC |
| Cabinet Roof: | Slanting Canopy Type |
| Cabinet Relative Humidity: | ≤95%, 25ºC |
| Operating Temperature: | 0~55ºC |
| Thermal Insulation: | 10mm Thick ,Non-Flammable Insulation Foam |
| Phase: | Depend on The Mechine |
| Type: | Depend on The Mechine |
| Protection: | IP55 |
| Application: | Outdoor Battery |
| Standby UPS: | Depend on The Mechine |
| Output Capacity: | Depend on The Mechine |
| Equipment Mode: | Depend on The Mechine |
| Brand: | Consnant |
