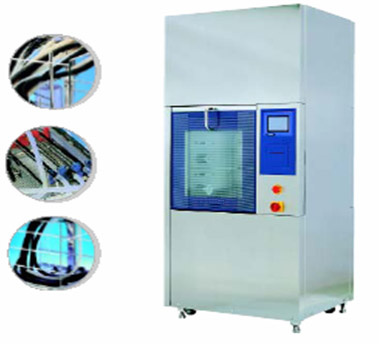

Motorized Door Automatic Washer Disinfector (EASY320-SGD)
| Price: | Negotiable |
|---|---|
| Trade Terms: | About 25 Days According to The Quantity |
| Min Order: | 1Unit |
| Pay Type: | T/T |
Motorized Door Automatic Washer Disinfector
1. Description
Newly developed, novelty structure, reliable performance and imported main parts, used for hospital disinfecting.
2. Structure & characters
A. Chamber
· Stainless steel with glass surfaces.
· Spot welding.
· Two jet arms in the chamber: Top and the bottom chamber, from which water is ejected to clean objects.
· Insulation material on both sides & top chamber
B. Airproof door:
· Two types: Single or double door.
· It can be opened downwards to a horizontal level as a flat roof for placing loading trolleys and frame on.
· Electronic locking device to prevent door open during the program. With the double door model, if necessary, the unclean area and the cleaned area can be separated from each other.
· The two doors on double-door model can be interlocked each other, the back door is closed while the front door is opened, or vice versa. So that the unclean area is separated from the clean area.
· Viewing window & illuminating lamp for operator to observe.
C. Pipeline system:
· Automatic water entry into the cabin can be realized with the equipped electro-magnetic valves imported from abroad.
· With the squirm valve lotion enters the cabin automatically and the quantity can be controlled by the preset figure in the program.
· Circulation pump of a large runoff can make the jet arms eject water turning round to clean objects effectively, and the insides of tubes and bottles can also be cleaned.
· The electrical heating tube can be controlled automatically during various stages according to the settings in the program to heat the circulation water in the cabin to a required degree of temperature.
· The primary sterilization can be carried out when water in the cabin is heated to and kept at a temperature of 90º C.
· The water is drained out automatically after each cleaning in order to prevent the objects from recontamination.
· Drying system can dry the cleaned objects rapidly. In the meantime, the hot air to be exhausted, through the heat exchanger, transmit its heat to the cold air entering the cabin resulting in a thrifty of energy and prohibiting the humid-hot air exhausted from influencing the operational area.
D. Thread stainless steel decorating covers are imported from abroad.
E. Control system:
· CPU224 (PLC) of S7-220 from SIMENS is the major controller, very tiny, with mightiness function and convenient maintenance. Thermal-resistance module of high precision (of 0.1º C) from SIMENS is applied to convert the signal sent by the thermal resistance from analogue to digital. And TD200 displayer from SIMENS is equipped as the interface between the operator and the machine. Remote diagnostic function is optional.
· Data collector: A floater switch from German produced PVDF is used to scale the liquid level in the cabin; A Japan-made tiny pressure switch with digital display is used to measure the entering liquid level and the pressure at the inlet for dry air.
· Executive section: AC contactor and heat protector from SNAD, France control power supply to electrical heating tube for water, and that for air and circulation water pump, and also to facilitate the electronic lock for controlling the opening and closure of the door. Advanced squirm pump from Germany is to control the certain amount of lotion into the cabin.
F. Two loading trolleys
They are standardized configuration, one is for apparatus and the other is for canula. They are all made of stainless steel. The trolley for apparatus with a large capacity is for loading surgical instruments such as scissors, nippers, etc. And also for loading basins, trays and bowls in surgery. The trolley for loading canula is for narcosis canula and other kinds of pipes.
Major technical parameters:
The major configuration:
1. Description
Newly developed, novelty structure, reliable performance and imported main parts, used for hospital disinfecting.
2. Structure & characters
A. Chamber
· Stainless steel with glass surfaces.
· Spot welding.
· Two jet arms in the chamber: Top and the bottom chamber, from which water is ejected to clean objects.
· Insulation material on both sides & top chamber
B. Airproof door:
· Two types: Single or double door.
· It can be opened downwards to a horizontal level as a flat roof for placing loading trolleys and frame on.
· Electronic locking device to prevent door open during the program. With the double door model, if necessary, the unclean area and the cleaned area can be separated from each other.
· The two doors on double-door model can be interlocked each other, the back door is closed while the front door is opened, or vice versa. So that the unclean area is separated from the clean area.
· Viewing window & illuminating lamp for operator to observe.
C. Pipeline system:
· Automatic water entry into the cabin can be realized with the equipped electro-magnetic valves imported from abroad.
· With the squirm valve lotion enters the cabin automatically and the quantity can be controlled by the preset figure in the program.
· Circulation pump of a large runoff can make the jet arms eject water turning round to clean objects effectively, and the insides of tubes and bottles can also be cleaned.
· The electrical heating tube can be controlled automatically during various stages according to the settings in the program to heat the circulation water in the cabin to a required degree of temperature.
· The primary sterilization can be carried out when water in the cabin is heated to and kept at a temperature of 90º C.
· The water is drained out automatically after each cleaning in order to prevent the objects from recontamination.
· Drying system can dry the cleaned objects rapidly. In the meantime, the hot air to be exhausted, through the heat exchanger, transmit its heat to the cold air entering the cabin resulting in a thrifty of energy and prohibiting the humid-hot air exhausted from influencing the operational area.
D. Thread stainless steel decorating covers are imported from abroad.
E. Control system:
· CPU224 (PLC) of S7-220 from SIMENS is the major controller, very tiny, with mightiness function and convenient maintenance. Thermal-resistance module of high precision (of 0.1º C) from SIMENS is applied to convert the signal sent by the thermal resistance from analogue to digital. And TD200 displayer from SIMENS is equipped as the interface between the operator and the machine. Remote diagnostic function is optional.
· Data collector: A floater switch from German produced PVDF is used to scale the liquid level in the cabin; A Japan-made tiny pressure switch with digital display is used to measure the entering liquid level and the pressure at the inlet for dry air.
· Executive section: AC contactor and heat protector from SNAD, France control power supply to electrical heating tube for water, and that for air and circulation water pump, and also to facilitate the electronic lock for controlling the opening and closure of the door. Advanced squirm pump from Germany is to control the certain amount of lotion into the cabin.
F. Two loading trolleys
They are standardized configuration, one is for apparatus and the other is for canula. They are all made of stainless steel. The trolley for apparatus with a large capacity is for loading surgical instruments such as scissors, nippers, etc. And also for loading basins, trays and bowls in surgery. The trolley for loading canula is for narcosis canula and other kinds of pipes.
Major technical parameters:
| Chamber size (W x H x D) | 577x805x740mm |
| External dimension (W x H x D) | 925x1890x750mm |
| Net weight | 300kg |
| Structure | Floor stand |
| Water consumption | 30L/cycle |
| Heating element power | 18KW (electrical heating) |
| Water outlet | 1.5" |
| Ventilation scoop | φ 89mm |
| Temperature of the hot water for treatment | 93º C |
| Operation Condition: (If no standard soften water as required, distilled water or deionized water is recommended) | |
| Water(intenerated)source pressure | 0.2MPa~0.5Mpa |
| Steam pressure | 0.30MPa~0.5Mpa |
| Water heating about 5.5/min(electrically) | 380VAC, 60Hz, 22.5KW |
| Water heating about 7º C/min (by steam) | 380VAC, 60Hz, 9KW |
| Environmental condition humidity | < 80% under a temperature of 31º C; < 90% under a temperature of 20º C |
| Environmental Temperature | 5~40º C |
| Power consumption for each part: | |
| Circulation pump | 1.8KW |
| Air heating element | 9x5/3KW |
| Dry fan | 1.0KW |
| Water heating element(electrical heating) | 3x6KW |
| Max working power | 21KW |
The major configuration:
| No | Name | Type | Manufacturer | Technical direction |
| 1 | Chamber | EASY320.01 | Our company | Advanced stainless steel with glass surface |
| 2 | Airproof door | EASY320.03 | Our company | Made of advanced stainless steel with glass surface, with a cover of thread stainless steel, equipped with an interlock |
| 3 | Squirm switch | KW15 | Made in china | Reliable and durable |
| 4 | Loading rack | EASY320.05 | Our company | With a structure of novelty, multi-function and advanced composition |
| 5 | Main controller | CPU224 | SIMENS | Capable of performing complicated calculation and control with its mightiness of function |
| 6 | Interface between operator and machine | TD200 | SIMENS | With LCD, touch button and convenient configuration function |
| 7 | Temperature module | EM231 | SIMENS | Stable and precise |
| 8 | Software for program development | STEP7 | SIMENS | Convenient for use with its mightiness of function |
| 9 | Circulation pump | PS series | Germany | Reliable, with large flux and low noise |
| 10 | Drainage pump | BE series | Germany | With stable performance and low noise |
| 11 | Steam electro-magnetic valve | Imported | Burkert, Germany | Reliable with high temperature resistance(only for steam heating equipment) |
| 12 | Squirm pump | Imported | Germany | Precise and stable |
| 13 | Heat exchanger | Made in china | With high efficiency of heat exchanging in large scale(only for equipment with drying device) | |
| 14 | Fan | MKM series | Import | With good performance and high efficiency(only for equipment with drying device) |
| 15 | Air filter | CHL0.3 | Made in china | With a high precision of 0.3μ m |
| 16 | Temperature transducer | Pt100 | Made in china | Made of stainless steel, first class precision with a measuring error ≤ 0.15º C. |
| 17 | Outer covers and accessories | EASY320.07 | Our company | Thread stainless steel for the covers and stainless steel for the accessories |
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
|---|---|
| Chamber Material: | Quality Stainless Steel With Glass Surfaces |
| Chamber Size(W X H X D): | 577x805x740mm |
| Door: | Motorized Single or Double Door |
| Insulation Material: | Yes |
| Control System: | Imported From Germany |
| Advanced Pipeline System: | Electro-Magnetic Valves Imported From Abroad |
| Viewing Window & Illuminating Lamp: | Yes |
| Cleaning Processes: | Automatically Supplied Enzyme Lotion |
| Lubrication For Apparatus: | Yes |
| Two Loading Trolleys: | Large Capacity One & Small Capacity One |
| Type: | Enzyme Lotion Washing & Dry Heating |
