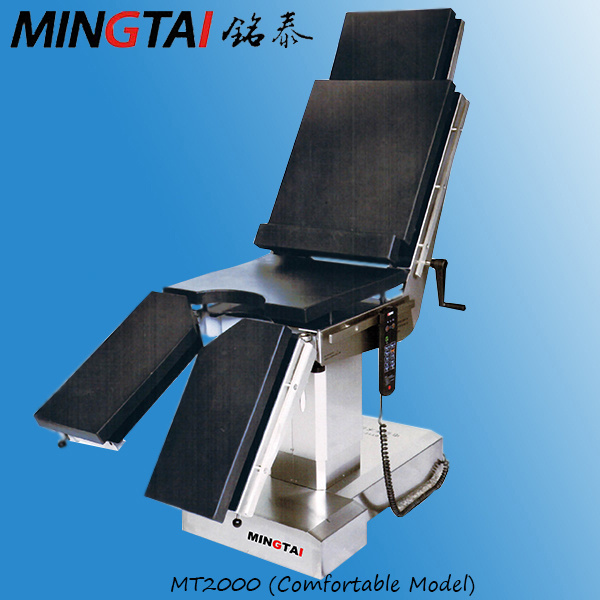

| Prod Model: |
MT2000 |
| Length: |
2000mm±50mm |
| Width: |
555mm |
| Forward And Backward Tilt: |
≥32° |
| Left/Right Tilt: |
≥22° |
| Head Board Up/Down: |
≥90° |
| Back Board Up: |
≥90° |
| Leg Board Down/ Evagination: |
≥90° |
| Waist Bridge Up: |
≥130mm (Optional Electric Kidney Bridge) |
| Type: |
Operating Table |
| Certification: |
ISO9001 |
| Kind: |
Multifunction |
Product Description
Technical parameters| Parameters | MT2000 |
| Length | 2000±50mm |
| Width | 500±20mm |
| Lowest and highest table height | (650-850) ± 50mm |
| Leg board down | ≥90° |
| Leg evagination | ≥90° |
| Back board up | ≥80° |
| Back board down | ≥35° |
| Power | AC 220V 50Hz |
| Input power | 500VA |
Feature:1.
Electric motor driving system:Imported the Danish LINAK brand motor, low noise, smooth table motion.Lifting and rising, forward and backward, left ward and rightward and the back plane are all controlled by system, manual head plate and leg plate, easy and convenient for operate
2.
6 electric motor, 2 of them rise the flanks back board.High performance charged battery can work ≥ 50 times to make sure the operation table can work without power source.The charged battery doesn't need maintenance;You can use it for long time.AC power source support power, guarantee the largest safety.
3.

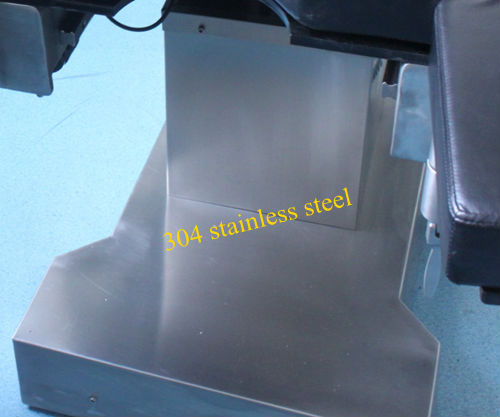

The whole bed is made of high quality SUS304# stainless steel, super thick≥ 4mm (not stainless steel cover).The whole surgery bed, cover and accessories are all made of high-quality nickel chromium alloy stainless steel, not rusting within 15 years, excellent sealing, polishing surface treatment, impact resistance, prevent scratch resistance, wear resistance, disinfection, easy to clean, fully meeting disinfection after operation
4.
Fairily "T" shape base design supple excellent shock resistance and stability, easy for clear and disinfection.5 sections board design:Head board, back board, built-in kidney elevator and leg board.
5.
Square lifting column is made by Germany, which has 4 times safety factor and 8 fasteners which can make it stable
6.
Leg board can be replication, outreach and removable, convenient for adjusting and urinary surgery.
7.

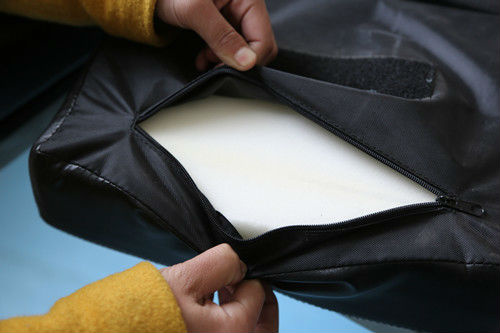

Mattress:The memory mattress, thickness is 70mm, effectively relieve patients pressure point, prevent postoperative bedsore occurred;Mattress material is conformed with the safety standard, the surface is antibacterial, easy to clean, meeting the operating room disinfection requirements.
8.
Computer control:Using microcomputer hand control adjusts the relative operation position.Picture printed on the button indicates the function, easy to understand and has long life
9.
With non-slip floor side rail safety design to prevent the attachment falling, in case of injury
10.
Operation table base has fix or movement function, flexible movement and stable fix, different function accessories can be provided for different surgery needed
MT2200 Details Show:
