Tengzhou Hoton Machinery Co., Ltd. >> Multi Purpose Bench Lathe Machine with CE Standard (BVB25-3)

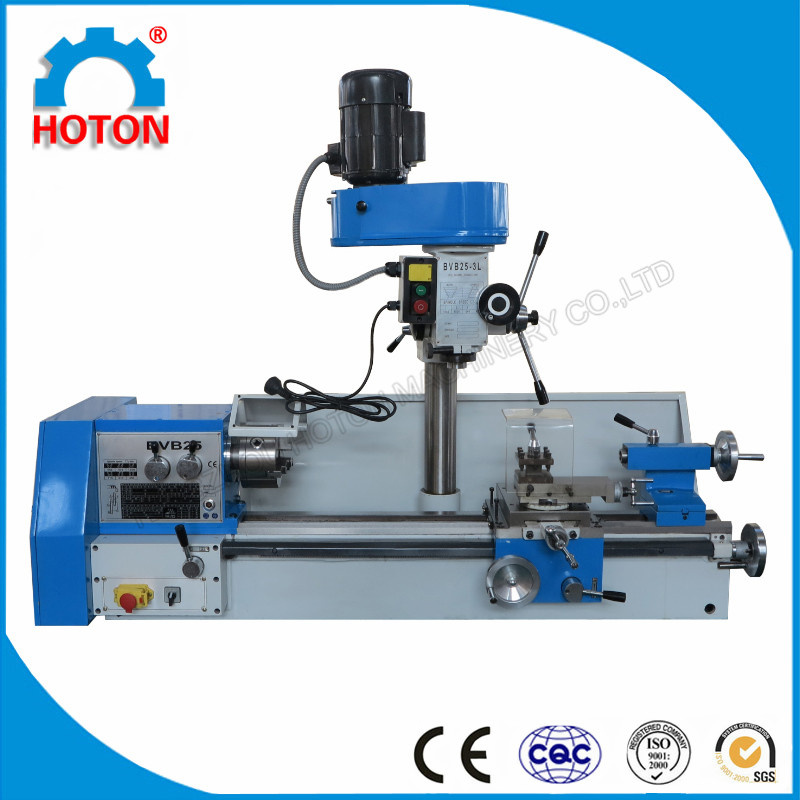

Multi Purpose Bench Lathe Machine with CE Standard (BVB25-3)
| Price: | US $ 900-1200/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |
Multi-purpose lathe mill drill machine:
V-way bed is precision ground.
Spindle is supported by precision tapered bearing.
Lathe headstock is constantly oiled during operating.
Belt driven mill head get quiet operation.
Mill head can be tilted ±90°.
Power longitudinal feed allows threading.
Adjustable gids for slideways.
Equipped with leadscrew cover and work table.
Change gears has large feed and threading ructions
Tailstock can be offset for turning tapers
Tolerance test certificate,test flow chart included.
Specification:
| Lathe | |
| Distance between centers | 450/700 mm(17-3/4"/27-1/2") |
| Swing over bed | 250 mm(10") |
| Taper of spindle bore | MT4 |
| Spindle bore | 27 mm(1") |
| Range of spindle speeds | 115-1620 rpm |
| Range of inch threads | 8-56 T.P.I |
| Range of metric threads | 0.2-3.5 mm |
| Travel of cross slide | 140 mm(5-1/2") |
| Taper of tailstock quill | MT3 |
| Motor | 750W |
| Mill & drill | |
| Taper of spindle bore | MT3 |
| Spindle stroke | 80 mm(3-1/8") |
| Step of spindle speeds | 4 steps |
| Range of spindle speeds | 400-1600 rpm |
| Head stroke | 240 mm(9-1/2") |
| Head tilt | ±90° |
| Motor | 550W |
| Packing size | 1510x670x920 mm |
| Net weight | 245 kg |
| STANDARD ACCESSORIES | OPTIONAL ACCESSORIES |
| Three-Jaw Chuck | Four-Jaw Chuck |
| V-belt | Follow Rest |
| Dead Centers | Steady Rest |
| Wrench | Face Plate |
| Spanner | Rolling Center |
| Change Gears | Stand |
| Wrench for tool post | Cutter |
| Splash Guard | |
| Chip Tray | |
| Back plate |
| Contact Us: |
| Andy Wang TENGZHOU HOTON MACHINERY CO.,LTD Tel:0086 632 5633796 MP:0086 13506328892 www.hotonmachinery.com |
| Company Profile: |
| Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008. |
| The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty models by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale. |
| Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers. Quality first,Constantly perfecting skills. |
| Prod Model: | BVB25-3 |
|---|---|
| Swing Over Bed: | 250mm |
| Spindle Taper: | MT4 |
| Spindle Speed: | 1620 Rpm |
| Power: | 750W |
| Spindle Bore: | 27mm |
| Type: | Horizontal Lathe |
| Power Source: | Electric |
| Controlling Mode: | Artificial |
| Automatic Grade: | Manual |
| Setting Mode: | Table |
| Precision: | Precision |
| Processing Accessory: | Processing Metal |
| Tool Holder: | 4 way tool post |
