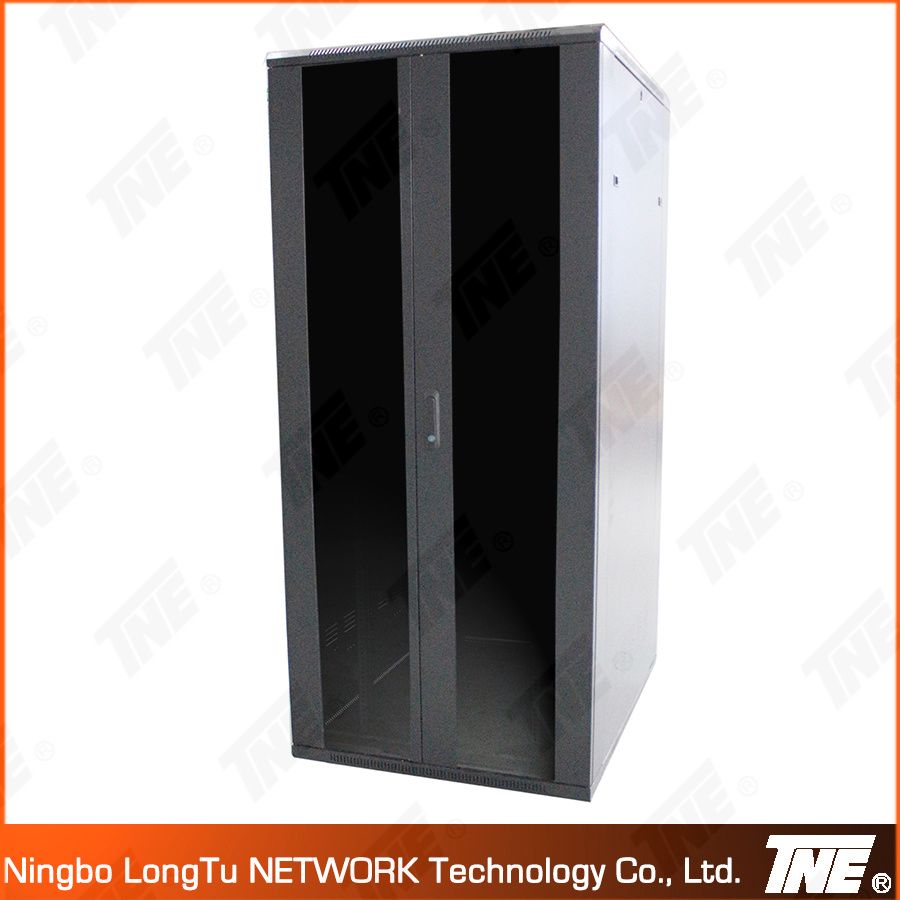

Network Cabinet/Server Rack/19'' Rack================Description===================

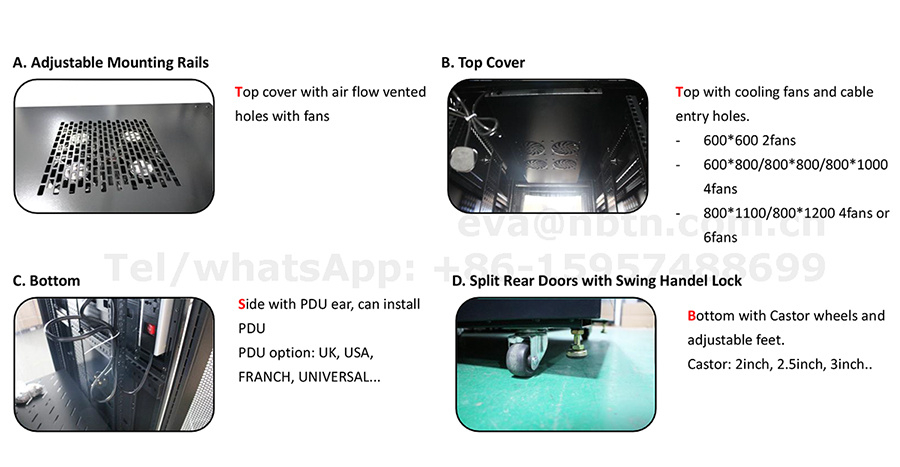

> Front Double/Bi-Fold Temper Glass Door
> Rear Solid Metal Door
> Two Side Door with Quick Open Latchs.
> Fans (600*600 2 fans, 600*800/600*1000/800*800/800*1000)
> Fixed Shelf (Optional 1~4pcs)
> Cable Tray(Optional)
> Vertical Cable Management (800mm width with 2pcs)
> 20sets cage nuts
=================Optional Accessory ===================
1, Fixed/cantilever shelf, sliding shelf, for 600mm, 800mm, 900mm, 1000mm depth cabinet
2, 19'' keyboard frame (350mm, 550mm, 650mm, 730mm)
3, 1U, 2U support board
4, Vertical Cable manager ( for 800mm Width Cabinet)
5, 19'' Power distribution unit(PDU)
6, 19'' Blanking plate 1U, 2U, 4U
7, Heavy duty castor, Heavy duty castor with braker
8, Optional lock for side panels
9, Earth Cable
And so on...
=============OPERATION CONDITIONS============
Operation environment:
- Office
- The cabinet is not intended for outdoor installations and for installations in environment that can influence negatively the functionality of the cabinet and the mounted devices (e.g. environment with danger of explosion or humid and wet surroundings).
Must be protected against:
- Mechanical damage
- Improper handling
- A different usage than the cabinet is intended for
Improper handling is especially:- Overloading (maximum recommended load exceeding)
- Device installation that can influence negatively operation and function of the cabinet or the installed equipment
- Change of the construction or design of the cabinet
INSTALLATION OF THE CABINET To ensure the maximum recommended load, it is necessary to distribute the load equally.
Place the cabinet on a flat floor and adjust any differences using the levelling feet.
To avoid dust penetration in the case where cables lead through some of the cable openings, it may be sealed with a blanking panel with a brush or secured by a plastic frame (both can be purchased from us).
ENVIRONMENTAL PROTECTION All parts are made of recyclable materials and after decommissioning the cabinet, it must be disposed of according to relevant regulations.
CERTIFICATE AND CONFORMITY This product is fully in accordance with CE & RoHS.
Size Form Model No. | Capacity(U) | Width(mm) | Depth(mm) | Height(mm) |
TN-002 | 18U | 600mm/800mm | 600mm/800mm/1000mm | 988mm |
TN-002 | 22U | 600mm/800mm | 600mm/800mm/1000mm | 1166mm |
TN-002 | 27U | 600mm/800mm | 600mm/800mm/1000mm | 1388mm |
TN-002 | 32U | 600mm/800mm | 600mm/800mm/1000mm | 1610mm |
TN-002 | 37U | 600mm/800mm | 600mm/800mm/1000mm | 1833mm |
TN-002 | 42U | 600mm/800mm | 600mm/800mm/1000mm | 2055mm |
TN-002 | 45U | 600mm/800mm | 600mm/800mm/1000mm | 2188mm |
TN-002 | 47U | 600mm/800mm | 600mm/800mm/1000mm | 2277mm |
========================FAQ============================
1) What is your Payment term?
---T/T, L/C, Western Union could be accepted.
2) What is your Trade term?
---EXW, FOB, CNF, CIF is also ok.
3) What is the Loading Port?
--- Ningbo or Shanghai port.
4) What is your MOQ?
---MOQ of most our products is 5pcs, different items will be different. We have indicated the MOQ for each item in the price list.
5) What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market, international safety standard certificate is also be provided.
Ningbo Longtu Network Technology Co., Ltd. ( Formly named Ningbo Taina Electronics Compay) own a Brand of "TNE" Mainly offer 19'' network cabinets, 19'' server racks, wall mount cabinet and customized Products, built for your specific requirement.
> Year 2003 TNE Founded
> Year 2006 TNE gains Export and Import Right
> Year 2010 TNE Moved the factory to Guanhaiwei East Industrial Zone, Ocupy 6066 Square Meter.
> Year 2014 TNE Changed the name from NINGBO TAINA ELECTRONICS COMPANY to NINGBO LONGTU NETWORK TECHNOLOGY Co., Ltd. Pure Producing Network Cabinet.
TNE have some stable partner From USA, UK, France, Austrial, Egypt, and So on.
TNE mainly Products as below:
Network cabinet
Server Rack
Wall Mount Cabinet
Open Frames
PDU...
TNE Machinery:
CNC Punching Machine: 4 sets
Laser Cutting Machine: 2 sets
Bending Machine: 11 sets
And other small Machines...
TNE owned Painting Line with Environment evaluation certificate
Welcome to contact with us to start the business in Year 2016! !
