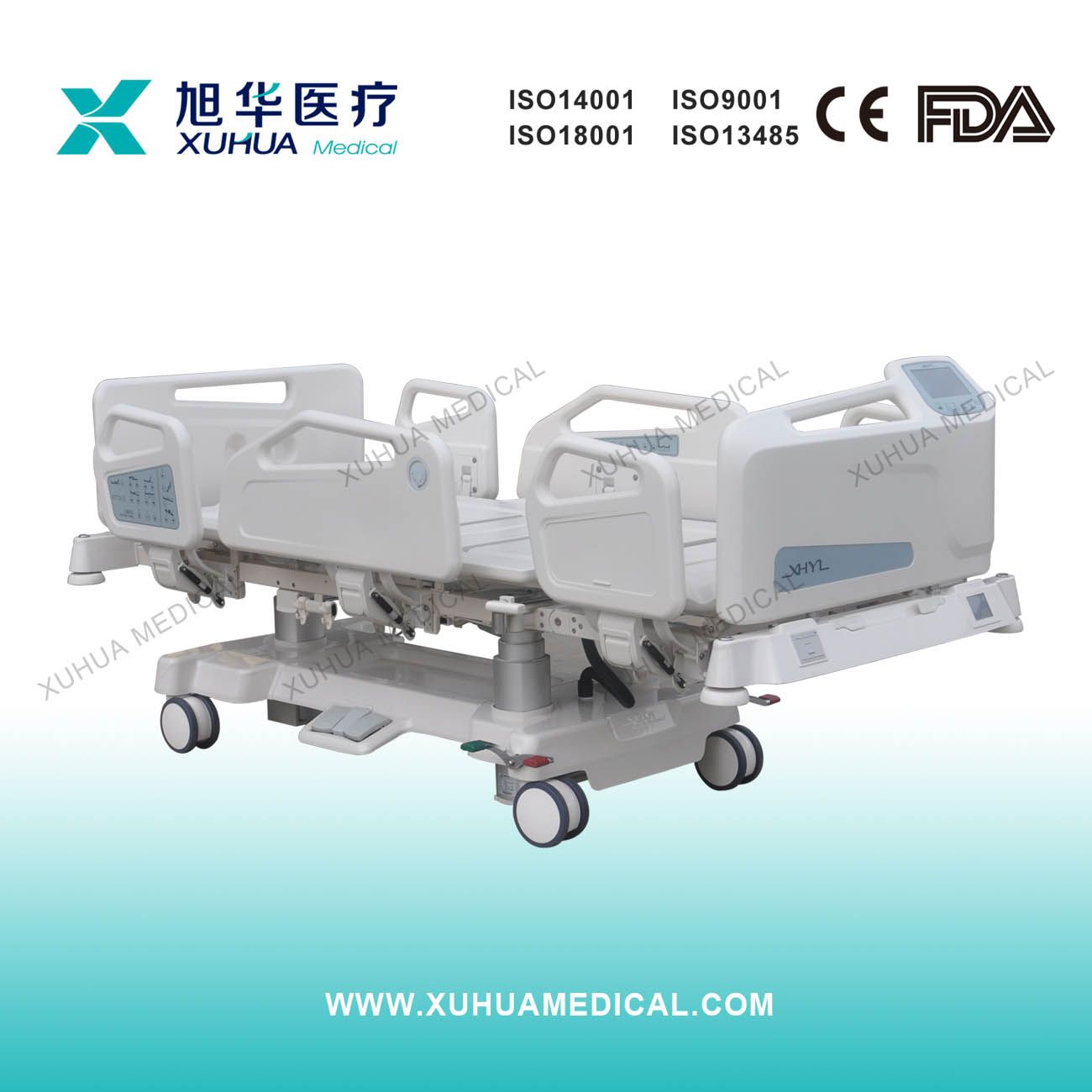

New Hospital Bed, Seven Functions Electric Patient ICU Bed (XHD-1)

Prod Model:	XHD-1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Business Type:	Manufacturer
OEM:	Available
Sample Order:	Available
Factory Location:	2 Hours Drive From Beijing
Warranty:	12 Months
Outstanding Features:	Customizable Designed Control System
Material:	Metal
Type Of Hospital Bed:	Electric Bed
Folded:	Unfolded
Using Ambient:	Hospital
Certification:	ISO9001
Numbers Of Function:	Seven Functions

Product Description

New Hospital Bed, Seven Functions Electric Patient ICU Bed
Model: XHD-1


I. Application range:
XHD-1 Multifunction Electric Hospital Bed is independently developed by Xuhua Medical, widely applicable to ICU ward and even deluxe VIP intensive care unit. Its multifunction and customizable design can be operated easily and safely.

II. Functions Introduction:
Size: L2350*W1100*H500-900mm
Functions:
1.Back section up/down  0-70°
2.Leg section up/down  0-40°
3.Auto contour function
4.Hi-low adjustment  500-900mm
5.Trendelenburg and reverse trendelenburg  12°
6.Bed right/ left tilting  20°
7.Bed exit alarm
8.Intelligent LED night light
9.Whole bed platform transparent to X-RAY.
10.One-button achieve the set trendelenburg position.
11.One-button cardiac chair position
12.One-button electric whole bed CPR quick release
13.Manual CPR handles on both sides of the bed for back section quick release.
14.In-bed scale
15.Extension foot section.
16.Backup battery

III. Standard Specifications:
1.PE material bed head and foot boards shaped by blow molding, with self-locking device
2.New type 6 pieces PE adjustable side rails, 4 pieces side rails with control buttons on both sides.
3.Side rails outer sides are installed with 4 angle indicators.
4.PE material bed lying platform, with good weighing ability, transparent to X-ray. All four sections can be detached for clean by different disinfectants.
5.C shape back section with raised edges can effectively avoid bedsores and prevent position down.
6.With 2 pieces electrically controlled bed exit assistant handles.
7.Xuhua Medical independently developed customerized electric control system, with a touch screen control system.
8.Adopt 3 pieces Taiwan Ti-MOTION electric column motors and 3 pieces linear actuators, which are of high performance, waterproof and noiseless.
9.Two sets Germany imported foot pedals adjust the bed right/left tilting electrically.
10.Mounted on four Germany imported TENTE casters with central braking system. Braking pedals are made of high quality aluminum alloy material, stable and easy to operate.
11.Bed accessories: Bumpers: 4 pcs
I.V pole sockets: 4 pcs
Drainage bag hooks: 4 pcs

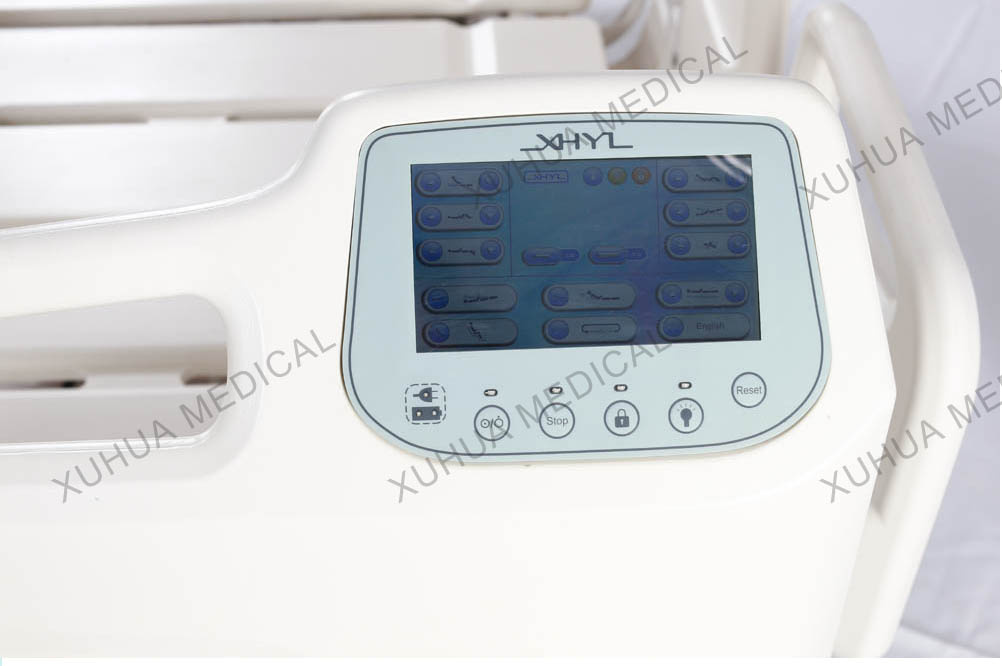

7"LCD touch screen for functions adjustment.




Electric assistant grab handle, which assist the weak patient get up from the bed.

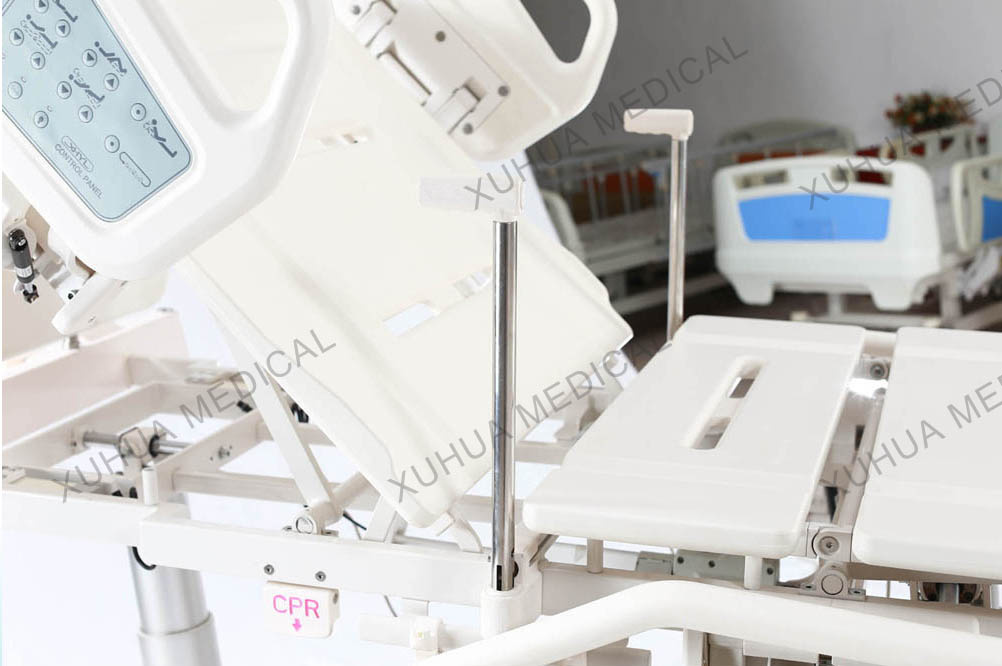

With manual CPR lever which can release the back section to flat position quickly.

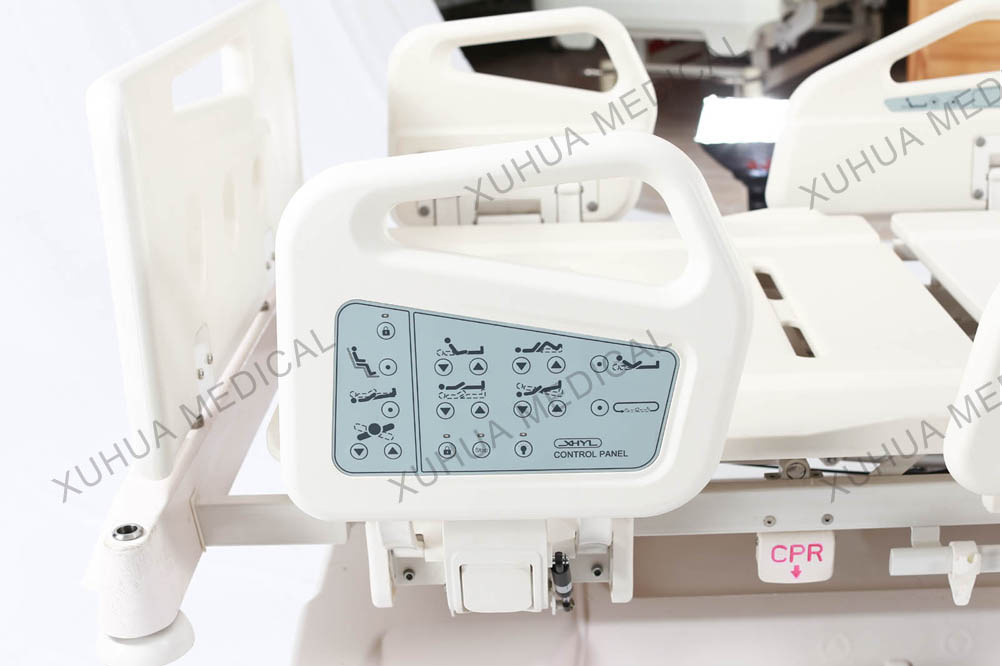

With touch control buttons on the side rails.



Trade Terms:
1) Price valid date: 3 months.
2) Payment term: 30% TT paid in advance, with 70% balance paid before shipment. Or L/C at sight.
3) Delivery time: 30 days after receive the deposit.
4) Package: standard export carton package or as customerized.


After sales service:
We respect and positively following your feedback after receive the goods.
We provide 12 Months warranty after goods arrive.
We respond your complain within 48hours.

Professional service:
We have well-organized working team, will reply all your inquiry and requirements timely and professionally.
We cooperate with customers for tender bidding and provide all the necessary documents.
With professional R&D department, all technical support are from our engineers team.
