P3.91 Outdoor Full Color LED Screen Cabinet
| Price: | US $ 256-524/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
R SERIES FEATURES:
. IP65 design: good for any outdoor event environment.
. Auto-calibration: avoid complicated calibration work, no need debugging after changing led modules.
. Easy and quick assembly: fast assembly and dismantle design to save labor force and time.

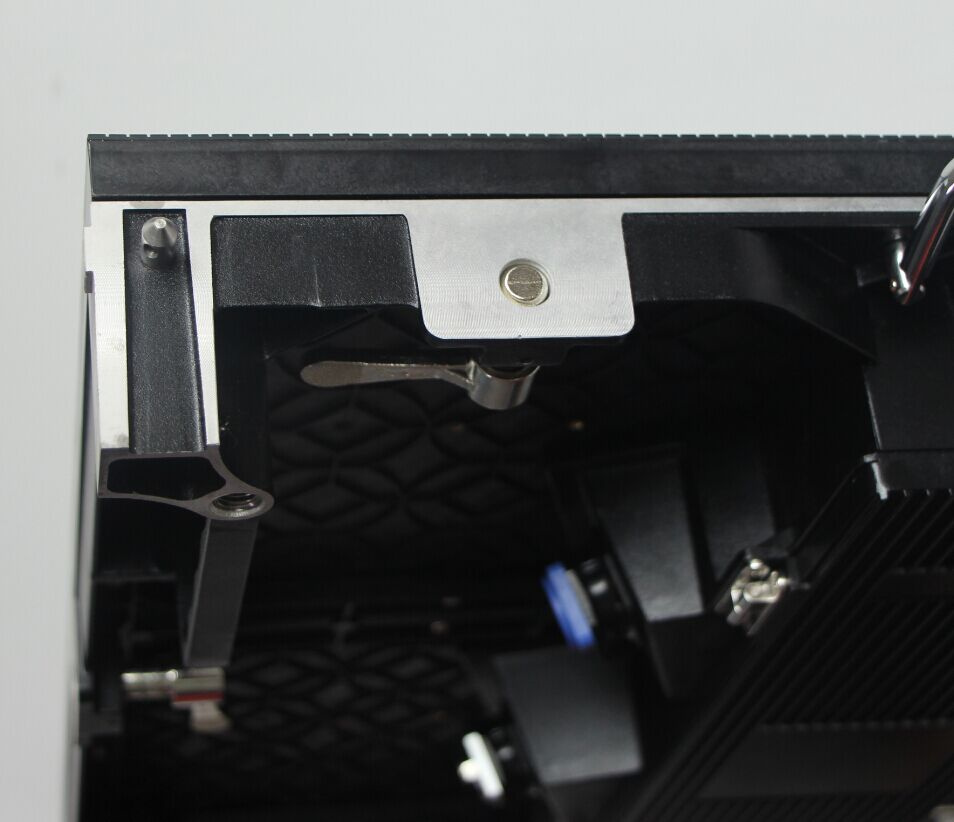

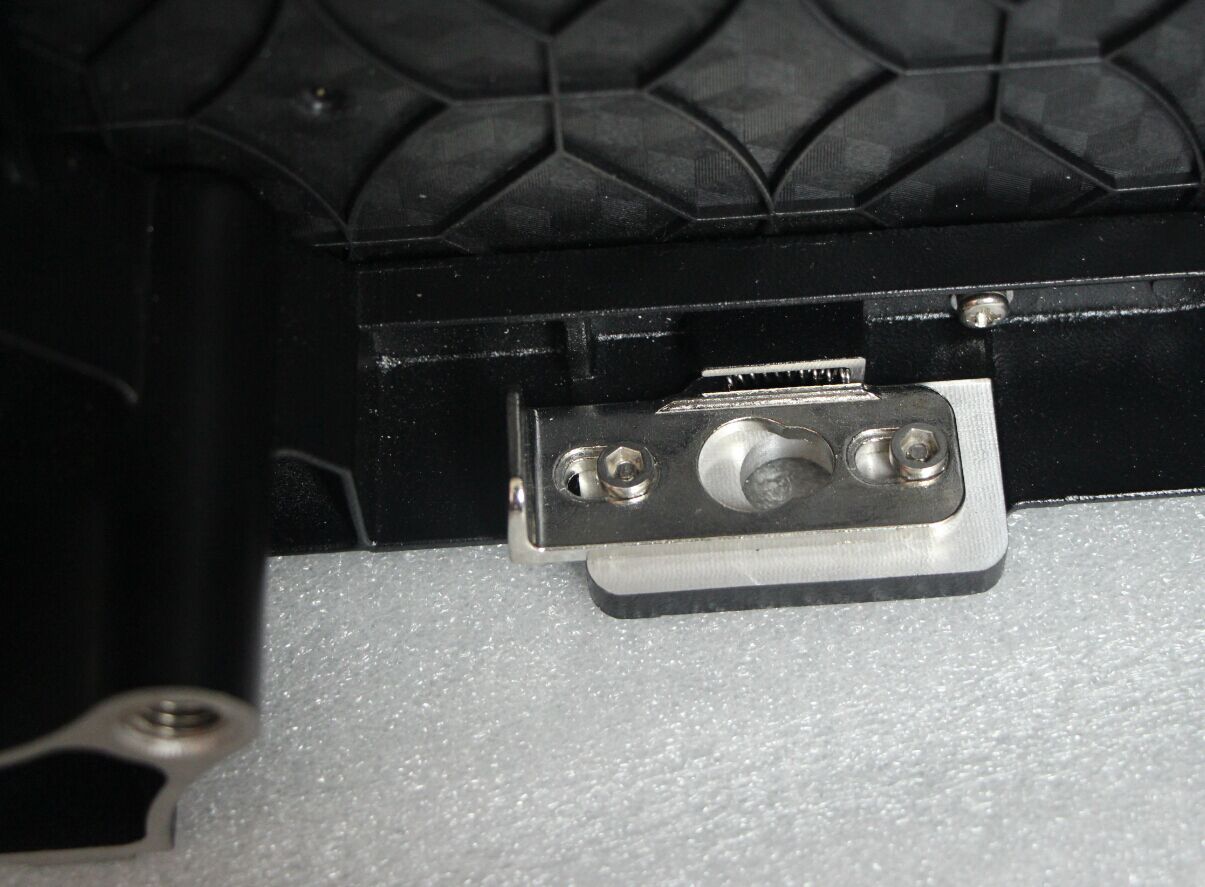

. Seamless assembly: stainless steel locks achieve micro-adjustment to make seamless screens.
. Cabinet anti-damage design : special protection design at the cabinet bottom to keep bottom line leds from broking.
PRODUCT SPECIFICATIONS:
PRODUCT PHOTOS:
Warranty:
1. For the LED display ,the guarantee period will be up to 2years.
2. During the guarantee period,for any problem,please send the broken parts to us for replacing by free.However,half of freight for replacing the broken parts will be borne by our customers.
Our Services:
1.Provide free technology support by phone or email.
2.Training for 2 persons for installation and maintance in factory for 3 days.
3. Shipment must be arranged within 3months after order placed,otherwise, factory will have the right to resell the screen without refunding the deposit, or there is warehouse safe-keeping fee of USD$100/day.
Other products:
Indoor fixed LED display: P2.5, P3, P4, P5, P6, P7.62, P10
Indoor rental LED display: P3, P4, P5, P6, P10, P3.91, P4.81, P6.25 ,
Outdoor fixed LED display: P4, P5, P6, P7.62, P8, P10
Outdoor rental LED display: P4, P5, P6, P8, P10, P6.667, P3.91, P4.81, P5.95, P6.25
Small pitch LED display: P1.667, P1.875, P1.904, P1.923, P2.0, P2.5
Front service maintenance LED screen: P10, P16, P20
Stadium perimeter LED screen: P8, P10, P16
. IP65 design: good for any outdoor event environment.
. Auto-calibration: avoid complicated calibration work, no need debugging after changing led modules.
. Easy and quick assembly: fast assembly and dismantle design to save labor force and time.
. Seamless assembly: stainless steel locks achieve micro-adjustment to make seamless screens.
. Cabinet anti-damage design : special protection design at the cabinet bottom to keep bottom line leds from broking.
PRODUCT SPECIFICATIONS:
| NO. | Parameter | Specification |
| 1 | Model | R3 |
| 2 | Pixel Pitch(mm) | 3.91 |
| 3 | LED | SMD1921 |
| 4 | Screen Resolution | 65536dots/sqm |
| 5 | Scan Method | 1/16 |
| 6 | Module size(mm) | 250*250 |
| 7 | Cabinet size(L*H*W mm) | 500x500x88 |
| 8 | Cabinet(Kg) | 7.8KG |
| 9 | Viewing angle | H:140°/ V:140° |
| 10 | Grey Scale | 14bit |
| 11 | Refresh rate(HZ) | ≥1920 |
| 12 | Brightness(nits) | ≥4500 |
| 13 | Working Voltage(V) | AC 100~240V |
| 14 | AVE. power consumption (W/sqm) | 230 |
| 15 | MAX. power consumption(W/sqm) | 560 |
| 16 | IP grade | F:IP65 / R:IP54 |
| 17 | Controller | Novastar |
| 18 | Maintenance | Rear service |
| 19 | Working humidity | 10~95%RH |
| 20 | Storage humidity | 10~95%RH |
| 21 | Working temperature | -30ºC~60ºC |
| 22 | Storage temperature | -40ºC~70ºC |
PRODUCT PHOTOS:
Warranty:
1. For the LED display ,the guarantee period will be up to 2years.
2. During the guarantee period,for any problem,please send the broken parts to us for replacing by free.However,half of freight for replacing the broken parts will be borne by our customers.
Our Services:
1.Provide free technology support by phone or email.
2.Training for 2 persons for installation and maintance in factory for 3 days.
3. Shipment must be arranged within 3months after order placed,otherwise, factory will have the right to resell the screen without refunding the deposit, or there is warehouse safe-keeping fee of USD$100/day.
Other products:
Indoor fixed LED display: P2.5, P3, P4, P5, P6, P7.62, P10
Indoor rental LED display: P3, P4, P5, P6, P10, P3.91, P4.81, P6.25 ,
Outdoor fixed LED display: P4, P5, P6, P7.62, P8, P10
Outdoor rental LED display: P4, P5, P6, P8, P10, P6.667, P3.91, P4.81, P5.95, P6.25
Small pitch LED display: P1.667, P1.875, P1.904, P1.923, P2.0, P2.5
Front service maintenance LED screen: P10, P16, P20
Stadium perimeter LED screen: P8, P10, P16
| Prod Model: | 3.91mm |
|---|---|
| Module Size: | 250X250mm |
| Module Resolution: | 64X64dots |
| Cabinet Size: | 500X500mm |
| Cabinet Resolution: | 128X128dots |
| Screen Brightness: | 4500nits |
| Refresh Rate: | 1920Hz |
| Protection Grade: | IP65 |
| Compliance: | Ce |
| Service: | Rear Service |
| Controller: | Nova/ Linsn |
| Tube Chip Color: | Full Color |
| IP Rating: | IP65 |
| Pixel Configuration: | 1R, 1G, 1B |
| Display Function: | Video Display |
| Scanning Mode: | 1/16 Scan |
| Display Type: | LED Video Display |
| Application: | Stage Performance |
| Certification: | CCC |
| Average Power Consumption: | 230 |
| Pixel Density: | 65536dots/Sqm |
