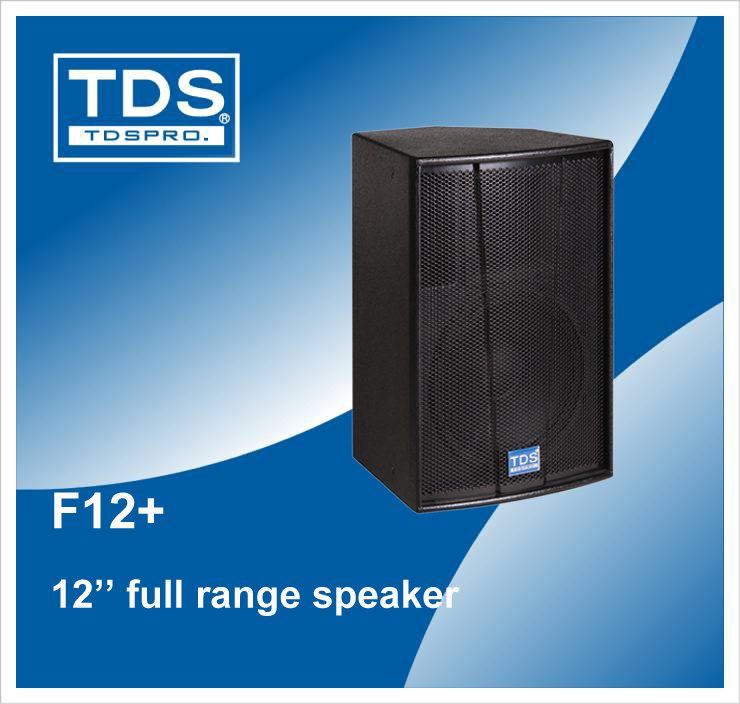

PA Speaker Cabinet (F12+)
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | others |
| Min Order: | 2/Piece |
| Pay Type: | T/T,Paypal,Western Union |
PA Speaker Cabinet F12 +
F12+ is a premium, utility concert speaker. F12+ use a high quality 12inch woofer perform very aggressive in bass, also an excellent compression driver with clearly HF sound. The 80° X 50° Horn provides smooth, even coverage whether used in the vertical or horizontal orientation.
The F12+ is very flexible in application. With its excellent performance, the F12+ can meet majority high-end sound reinforcement.
Features
12'' differential woofer for high-power capacity.
High quality comression driver with 44mm SUZUKI voice coil.
80° X 50° Coverage for smooth response on and off axis.
Flexible mounting options.
Tough black enclosure finish.
Applications
Speech reinforcement.
Liver performance stage monitoring.
High-performance satellite speaker for use with subwoofers
Dance club.
Why choose TDS products.
1. Raw material quality gurantee, ensure the products durability.
The speaker cabinet adopt 18mm birch plywood(except MP series). The woofer adopt UKM, 7DF paper cone. SUZUKI coil used in voice coil.
2. Delivery the products on time.
For normal speakers we can delivery out within 12 days. The line array system delivery out with in 18 days.
3. After-sale service commitment
When the products had the technical problems during usage, we will give timely answer.
We offer 1 year warranty for speaker and 2 years warranty for amplifiers. We will send the spare parts at the first time.
4. TDS PRO AUDIO FACTORY is a factory who willing to last 99 years old.
Now we have more than 80 customers in China and export to 20 countries. Our products export to Australia, Canada, Italy, Indonesia, India, Korea, Kuwait, Lebanon, Mexico, Malaysia, Myanmar, Mongolia, Spain, Singapore, South Africa , Senegal, Thailand, Uruguay, USA, Vietnam. We still have a long way to go in the next 91 years. We hope to go with you together in the future.
F12+ is a premium, utility concert speaker. F12+ use a high quality 12inch woofer perform very aggressive in bass, also an excellent compression driver with clearly HF sound. The 80° X 50° Horn provides smooth, even coverage whether used in the vertical or horizontal orientation.
The F12+ is very flexible in application. With its excellent performance, the F12+ can meet majority high-end sound reinforcement.
Features
12'' differential woofer for high-power capacity.
High quality comression driver with 44mm SUZUKI voice coil.
80° X 50° Coverage for smooth response on and off axis.
Flexible mounting options.
Tough black enclosure finish.
Applications
Speech reinforcement.
Liver performance stage monitoring.
High-performance satellite speaker for use with subwoofers
Dance club.
| System Type: | 12inch, 2-way speaker. |
| Frequency Response: | 65Hz -- 18kHz ± 3dB |
| Sensitivity (1W/1M): | 97 dB. |
| Impedance: | 8 ohm |
| Rated Power: | 300W (AES), 600W (PEAK). |
| Dispersion: | 80° (H) X 50° (V) |
| Drivers: | LF driver 12' ' transducer (65mm) voice coil |
| HF driver 1' ' exit (44mm) voice coil. | |
| Maximum SPL: | 129dB |
| Connectors: | 2 x Neutrik NL4. |
| Dimensions: | (W) 385mm x (H) 570mm x (D) 360mm |
| Weight: | 25kg |
1. Raw material quality gurantee, ensure the products durability.
The speaker cabinet adopt 18mm birch plywood(except MP series). The woofer adopt UKM, 7DF paper cone. SUZUKI coil used in voice coil.
2. Delivery the products on time.
For normal speakers we can delivery out within 12 days. The line array system delivery out with in 18 days.
3. After-sale service commitment
When the products had the technical problems during usage, we will give timely answer.
We offer 1 year warranty for speaker and 2 years warranty for amplifiers. We will send the spare parts at the first time.
4. TDS PRO AUDIO FACTORY is a factory who willing to last 99 years old.
Now we have more than 80 customers in China and export to 20 countries. Our products export to Australia, Canada, Italy, Indonesia, India, Korea, Kuwait, Lebanon, Mexico, Malaysia, Myanmar, Mongolia, Spain, Singapore, South Africa , Senegal, Thailand, Uruguay, USA, Vietnam. We still have a long way to go in the next 91 years. We hope to go with you together in the future.
| Prod Model: | F12+ |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| System Type: | 12inch, 2-Way Speaker |
| Frequency Response: | 65Hz -- 18kHz |
| Dispersion (Hxv): | 80 X 50 |
| Handling Power: | 300watts (RMS) / 600watts (Peak) |
| Noise: | <95dB |
| Application: | Commercial |
| Certification: | CCC |
| THD: | <0.03% |
Guangzhou TDS PRO Audio Factory specialize in developing & manufacture PRO audio products.
From the establishment of our factory we always focus our attention on developing PRO audio products.We trust a good product must need very careful process in developing and manufacture.Thanks to our senior engineers and the sophisticated staff, we can offer the products which customers need.At the same time, we use the technical way to guarantee the products quality.We use CAD for cabinet design work, CNC machine to make the speaker cabinet, DASS & LMS for testing of loudspeaker, crossover checking and phase checking equipment etc.All those work help us to keep the same product quality.
In all business, product is important.But the related service is more important.In order to offer ideal service, we have professional staff for products checking, transportation arranging and also we have engineers who can go abroad to do technical support and after sales service.Our philosophy is customer to be first.And we also trust better service will help both customer and us.Through good service we can keep long and steady relation with our customers.
Meet right sound, Meet right OEM partner, Meet right us!
