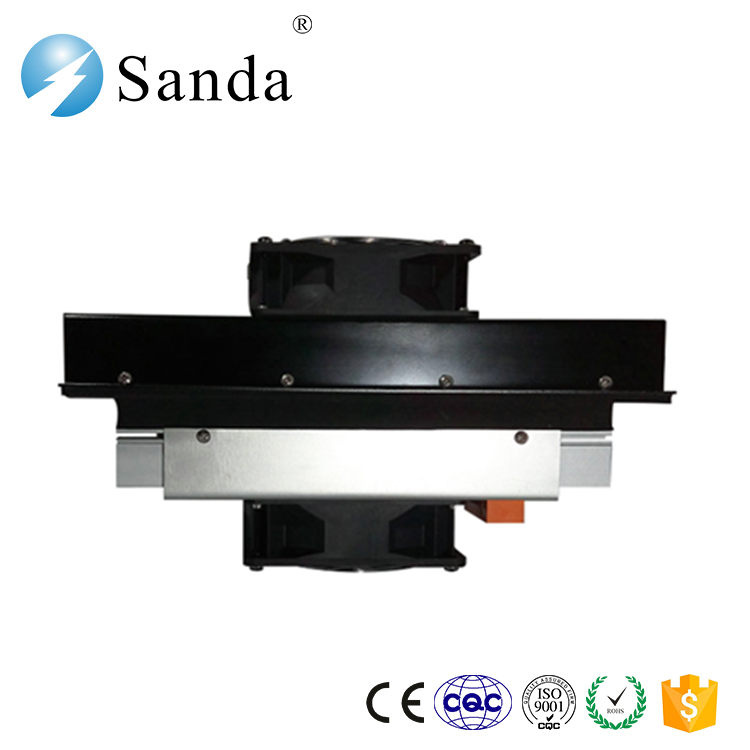

Peltier Cooling Units for Telecom Cabinet
| Price: | US $ 324.46-341.54/Piece |
|---|---|
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
Peltier cooling units for telecom cabinet.
Thermoelectric air conditioner operate by the Peltier effect (which also goes by the more general name thermoelectric effect). The device has two sides, and when DC current flows through the device, it brings heat from one side to the other, so that one side gets cooler while the other gets hotter. The "hot" side is attached to a heat sink so that it remains at ambient temperature, while the cool side goes below room temperature. In some applications, multiple coolers can be cascaded together for lower temperature.

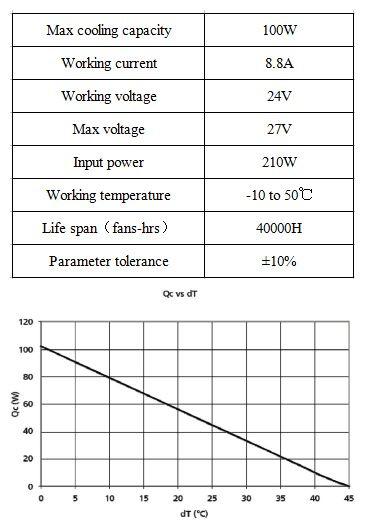

Technical data and performance curve

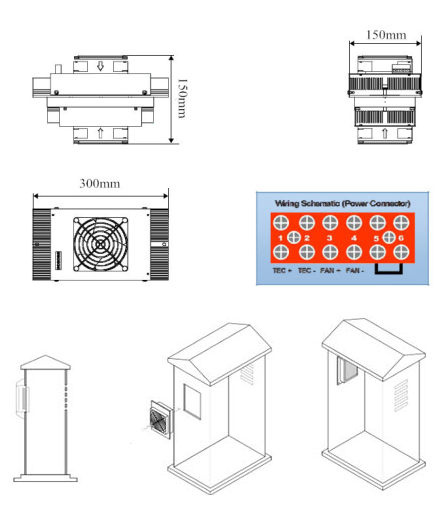

Drawing and Installation
1. The hot side of the thermoelectric cooler is mounted on the outside of the box
2. Use four M4 screws with flat washers to lock and fix the air cooler;
3. Products need to be installed vertically(Heat sink fin is vertical;
4. Avoid to external shock and damage.
Fan blades and heat sink need to be kept clean to reduce the risk of heatsink overheating and
cooling power decrease.
Application
Certifications
Company Information
Zhuzhou Sanda Electron Manufacturing Co.,Ltd is a modernized high-tech enterprise engages in the research, produce and supplier of intelligent instruments for electric power grid and switch cabinet.
We design,produce and sell:
1. Multi-function electric meter, multi-function network meter, multi-function harmonic meter, digital ammeter, digital voltmeter.
2.Switchgear intelligent operating devices, switch state indicator.
3.Cabinet air conditioners, thermoelectric cooling units, TEC air conditioners and dehumidifiers.
4.Temperature and humidity controller, dry-type transformer temperature and humidity controller,dry-type cooling fans.
Widely use in electricity facilities worldwide:
• Oil & chemical, mechanical
• Construction and are applicable for terminal body.
• High voltage switch cabinet, substation.
• Low voltage box
• Low-voltage AC power distributing cabinet
• Low voltage cabinet.
| Prod Model: | SD-100-24 |
|---|---|
| Max Cooling Capacity: | 100W |
| Working Voltage: | 24V |
| Max Working Voltage: | 27V |
| Max Current: | 8.8A |
| Input Power: | 210W |
| Working Temperature: | -10 to 50 Degrees Celsius |
| Parameter Tolerance: | Plus or Minus 10% |
| Lifespan Of The Fan: | 40000h |
| Weight: | 4.12kg |
| Dimension: | 300*150*150mm |
| Type: | Air-Cooled |
| Certification: | CCC |
| Condition: | New |
| Cooling Water: | No |
Zhuzhou Sanda Electronic Manufacturing Co., Ltd is a high-tech enterprises who engaged in electrical power systems and industrial automation products.
Our company integrates development, design, production, sales and service as one of the operating entity. Our main products include: Digital meters, multi-function meters, electrical quantity transducer, intelligent dehumidifier, integrated protection relay system, intelligent back-end monitoring system, intelligent control device for switch cabinet, temperature and humidity controller, electric heater, motor protector, over-voltage protection device and microcomputer with associated products and so on.
Products have been widely used in metallurgy, petrochemical, electric power, construction, machinery, power plants, water conservancy, transportation and other fields, and our products reach a high reputation from our customers. We have a group of experienced & professional technical engineering staffs, with a high starting point, high technology, by constantly absorbing the latest international technology and design concept, and actively learn to market demand, to establish a long-term strategic partnership with customers. The company has always pursued the "quality is life, credibility is the guarantee, the user is God, " provide with professional, fast, excellent, safety and after-sales service.
The company has the leading testing and calibration equipment and the establishment of a modern management system. Perfect technology, strict production process, to ensure product quality and safety. The company has passed ISO9001 quality management system certification, the product passed the National Relay Protection and automation equipment quality supervision and inspection center testing, and obtain a certificate. The company also received a number of product patents, "Hunan famous trademark", "love enterprise" and other honorary titles.
Service innovation, the pursuit of excellence" is the purpose of Sanda, we will as in the past to adhere to the "people-oriented, positive enterprising, harmonious development" concept of talent, to provide "safe, accurate, high-quality" product demand for power transmission field demand, and make the greatest contribution to China's intelligent power distribution products manufacturing industry.
Corporate culture:
Goal: The global leading brands of smart grid equipment suppliers!
Mission: To make electricity safer and more intelligent!
Values: Employee happiness, customer appreciation, dedication to the community!
Five executive power: Absolute obedience, the courage to take responsibility, no excuse, act immediately, to create excellence.
Spirit: Integrity, tolerance, respect, pursuit, transcendence, innovation
Motto: To be as good as gold, to be perfect.
Product concept: Safety, accuracy, high quality.
Criteria: Strict implementation, strive for perfection.
Declaration: We are honest and trustworthy, harmonious and development; Diligence, sharing success; We forge ahead, to achieve the ideal; We are closely united, create brilliant; Our ability and customer satisfaction to achieve self value; We use a sincere attitude and effective action to return society.

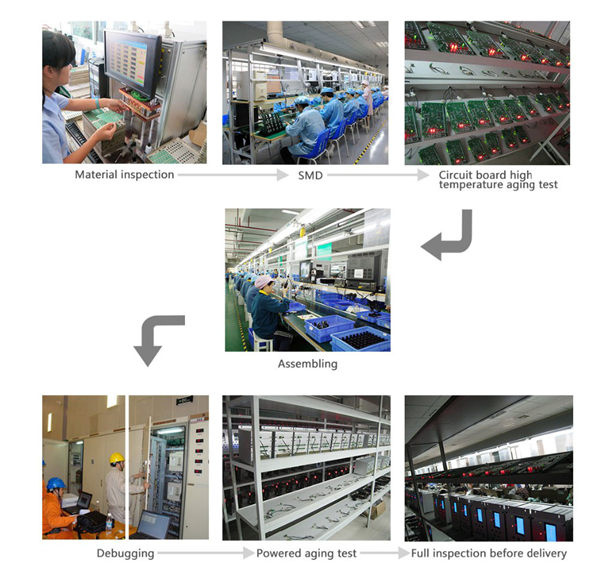

Process quality
