Shenzhen Starwire Lighting Co., Limited >> Pk103-E1X DC12V 3W Under Cabinet LED Light
Pk103-E1X DC12V 3W Under Cabinet LED Light
| Price: | US $ 6.5-8/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Paypal,Western Union |
Product: PK103-C1X DC12V 3W under cabinet led light
Specification
| Brand&Model | Starwire SW-PK103-E1X |
| Material | high quality aluminum alloy |
| Light source | 1W Edison |
| Power | 3W |
| Input Voltage | AC/DC 12-24V |
| Current | 300-320mA |
| CCT | 3000K/4000K/6000K |
| Beam Angel | 55º |
| Luminous Efficiency | >80 |
| CRI(RA) | >80 |
| IP Rate | IP20 |
| Working Temperature | -10 ~ 50ºC |
Luminous Flux(lm) | 202lm/3000K |
| Luminous Flux(lm) | 220lm/4000K |
| Luminous Flux(lm) | 252lm/6000K |
| Luminous Maintenance | 70% in 30000hours, no flickering |
| Installation | surface |
| Dimension | Φ69.5*H15.8mm |
| Warranty | 3 years |
| Application | cabinet light, led cabinet llight |
Features:
- Original 3*1W Edison chip, CE & ROHS (approvalled by TUV Rheinland), SAA.
- 3W led cabinet light, high lumen 202-252lm, CCT 3000-6000K.
- 55º beam angle, excellent light, comfortable to eyes, no halation, no flicker, no strobe.
- High CRI more than 80, approximate to the nature light. Seeing is believing.
- Universal input voltage DC 12V, support OEM & ODM service, suitable to most countries.
- Low decay with 70% lunimous maintenance over 30,000 hours, and 30% over 50,000 hours.
- Environmental friendly, no RF interference, no UV or IR radiation, no noise.
- Easy recessed installation. Fix it on the board with with 2 screw spikes directly.
- Stairwire 3 years warranty. We like to be your trustable and friendly cooperator.
Pictures

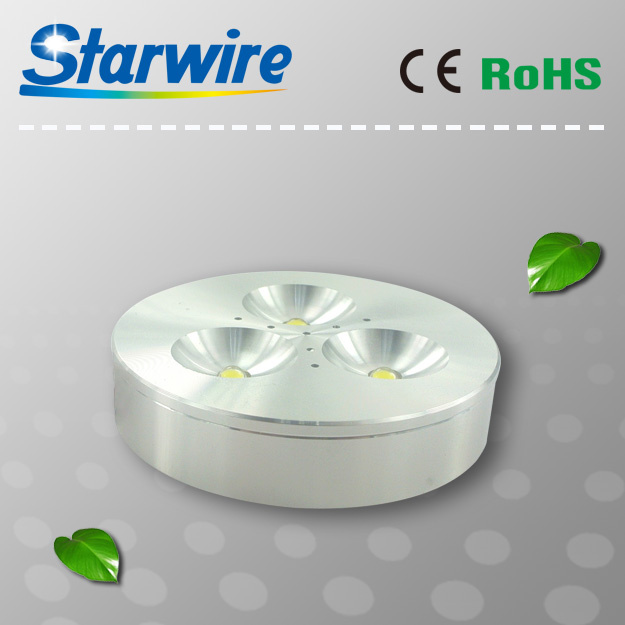

PK103-C1X DC12V 3W under cabinet led light

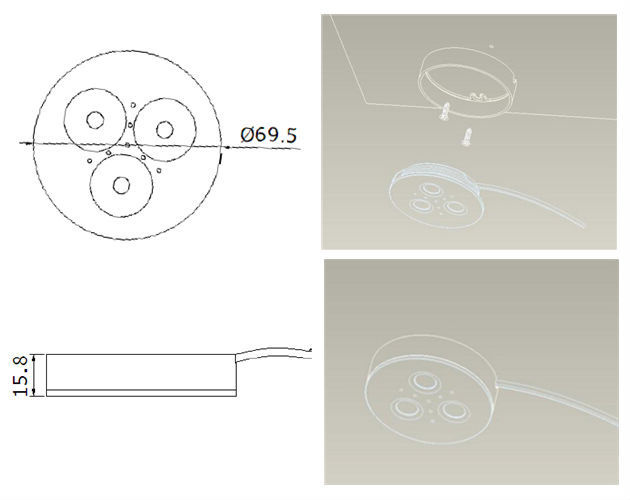

Installation
1. Cut off all powers, and fix the outer case on the board with 2 screw spikes.
2. Push the light into the outer case, connect to the power and complete.

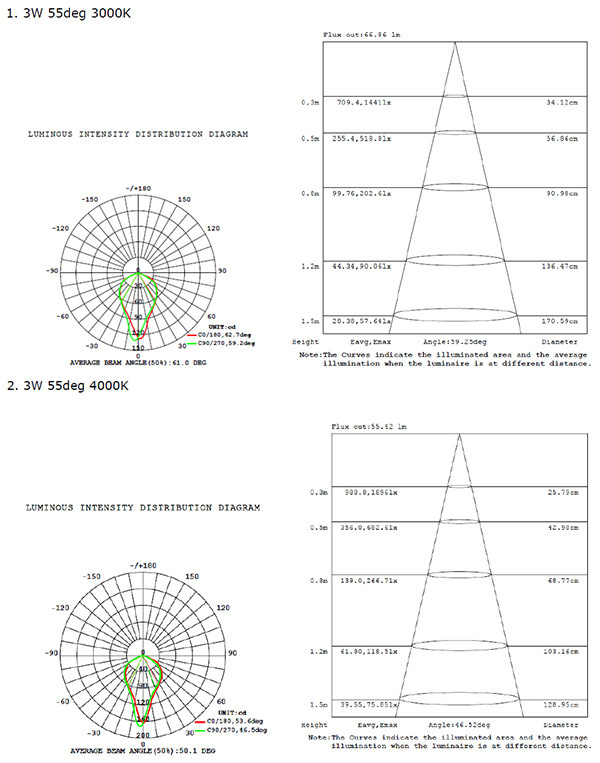

Luminous Intensity Distribution Diagram
PK103-C1X DC12V 3W under cabinet led light
| Average Ilumination(lx) | 0.3m | 0.5m | 0.8m |
| 3000K | 709lx | 205lx | 99lx |
| 4000K | 988lx | 356lx | 139lx |
| 5000K | 954lx | 343lx | 134lx |
Application
PK103-C1X DC12V 3W under cabinet led light, is widely used in close accent lighting, such as Show case, Shelf, Under counter, Display case, Bookcase, Wardrobe, Wine cabinet, Kitchen cabinet, etc.
Trade terms
1.Payment term: T/T 30% deposit after order confirmed, 70% the balance after goods ready before shipping, L/C at sight can be accepted.
2. Lead time: normally 7-15 working days after deposit received.
3. Samples: Can be ready in 3-5 working days once payment received.
4. Shipping port: Shenzhen, Mainland China.
5. Discounts are offered based on order quantities.
Our services
1. Your inquiry on our products or prices will be replied within 12hours.
2. Well-trained and experienced staffs to answer all your queries in fluent English.
3. We can design base on your customized lighting with your logo.
4. Reasonable price with high quality will be offered.
5. Protection of your sales area, design ideas and all your private information.
Cautions
1.Switch off the power before replacing light.
2.Power supply should be adapted to the correct voltage before installation.
3.Should be installed and maintained by professionals.
4.Keep away from direct sunshine and high temperature.
About us
Shenzhen Starwire Lighting Co.,Limited is professional manufacturer of LED products, such as LED Strip Light and LED downlight. Our annual turnover is 10 million US dollars. Now we have 3600 square meter factory, 6 production lines, and over 100 workers.
Quality is our princeple! Welcome to contact us if you have interest! We will follow up and come back to you ASAP in 12 hours.
| Prod Model: | SW-PK103-E1X |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product: | 3W LED Cabinet Light |
| Feature: | LED Downlight |
| Current: | 300-320mA |
| CRI: | >80 |
| LED Source: | Edison |
| Luminous: | 202-252lm |
| Beam Angle: | 55 Deg |
| Dimension: | D69.5*H15.8mm |
| Color: | Silver or Customed |
| Warranty: | 3 Years |
| Emitting Color: | White |
| Certification: | CE |
| Input Voltage: | 12v |
| Installation Mode: | Wall Mounted |
| Switch Type: | Knob switch |
| Shade Direction: | Down |
| IP Rating: | IP20 |
| Power: | 3W |
| Color Temperature: | Ww/Nw/Cw |
| LED Chips Brand: | CREE |
| Shade Type: | None |
