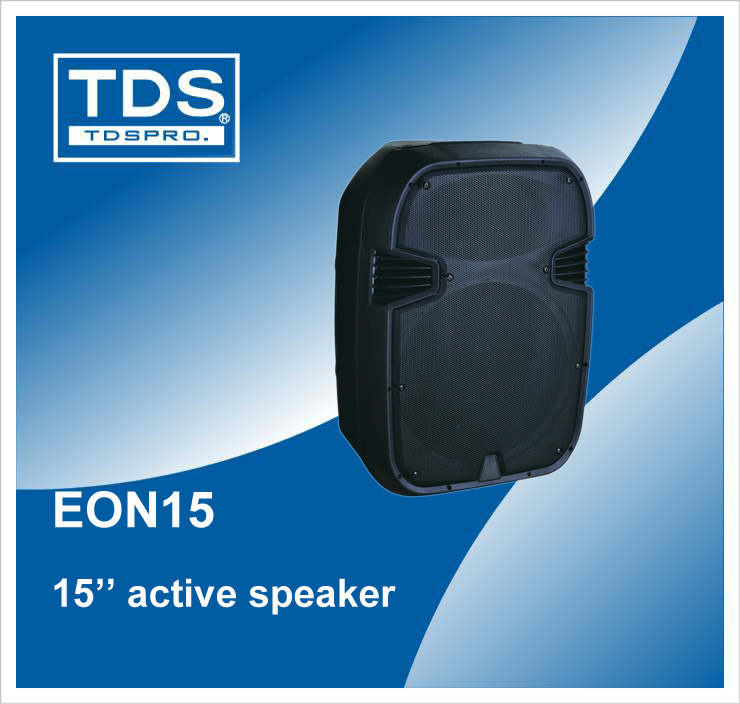

Plastic Cabinet (EON15)
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | others |
| Min Order: | 2/Piece |
| Pay Type: | T/T,Paypal,Western Union |
Plastic Cainet EON15
Features
Compression driver with 1inch Titanium Dome
15inch power woofer with 75mm voice coil.
129dB Max SPL.
Light-weight and high-power output.
Applications
Live performance sound reinforcement.
Thearters, theme park, houses of workshop.
Stage monitor.
Why choose TDS products.
1. Raw material quality gurantee, ensure the products durability.
The speaker cabinet adopt 18mm birch plywood(except MP series). The woofer adopt UKM, 7DF paper cone. SUZUKI coil used in voice coil.
2. Delivery the products on time.
For normal speakers we can delivery out within 12 days. The line array system delivery out with in 18 days.
3. After-sale service commitment
When the products had the technical problems during usage, we will give timely answer.
We offer 1 year warranty for speaker and 2 years warranty for amplifiers. We will send the spare parts at the first time.
4. TDS PRO AUDIO FACTORY is a factory who willing to last 99 years old.
Now we have more than 80 customers in China and export to 20 countries. Our products export to Australia, Canada, Italy, Indonesia, India, Korea, Kuwait, Lebanon, Mexico, Malaysia, Myanmar, Mongolia, Spain, Singapore, South Africa , Senegal, Thailand, Uruguay, USA, Vietnam. We still have a long way to go in the next 91 years. We hope to go with you together in the future.
Features
Compression driver with 1inch Titanium Dome
15inch power woofer with 75mm voice coil.
129dB Max SPL.
Light-weight and high-power output.
Applications
Live performance sound reinforcement.
Thearters, theme park, houses of workshop.
Stage monitor.
| System Type: | 15inch two-way passive speaker. |
| Frequency Response: | 42Hz--18 kHz ± 3dB |
| Sensitivity (1W/1M): | 96dB. |
| Impedance: | 8ohm |
| Rated Power: | 350W (AES), 700W (PEAK). |
| Dispersion: | 100° (H) X 60° (V) |
| Drivers: | LF driver 15' ' transducer (75mm) voice coil |
| HF driver 1.5' ' exit (44mm) voice coil. | |
| Maximum SPL: | 129dB peak. |
| Connectors: | XLR - JACK/XLR. |
| Dimensions: | (W) 438mm x (H) 685mm x (D) 366mm |
| Weight: | 18kg |
Why choose TDS products.
1. Raw material quality gurantee, ensure the products durability.
The speaker cabinet adopt 18mm birch plywood(except MP series). The woofer adopt UKM, 7DF paper cone. SUZUKI coil used in voice coil.
2. Delivery the products on time.
For normal speakers we can delivery out within 12 days. The line array system delivery out with in 18 days.
3. After-sale service commitment
When the products had the technical problems during usage, we will give timely answer.
We offer 1 year warranty for speaker and 2 years warranty for amplifiers. We will send the spare parts at the first time.
4. TDS PRO AUDIO FACTORY is a factory who willing to last 99 years old.
Now we have more than 80 customers in China and export to 20 countries. Our products export to Australia, Canada, Italy, Indonesia, India, Korea, Kuwait, Lebanon, Mexico, Malaysia, Myanmar, Mongolia, Spain, Singapore, South Africa , Senegal, Thailand, Uruguay, USA, Vietnam. We still have a long way to go in the next 91 years. We hope to go with you together in the future.
| Prod Model: | EON15 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| System Type: | 15inch, 2-Way Speaker |
| Frequency Response: | 42Hz -- 18kHz |
| Dispersion (Hxv): | 100 X 60 |
| Handling Power: | 350watts (RMS) / 700watts (Peak) |
| Noise: | <95dB |
| Application: | Commercial |
| Certification: | CCC |
| THD: | <0.03% |
