Prod Model: |
XGB-600 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Lifetime: |
More Than 5 Years |
Mixer Type: |
V-Mixer |
Export Markets: |
Global |
Maximum Output: |
600kg/H |
Compress Air: |
5-6 |
Product Description

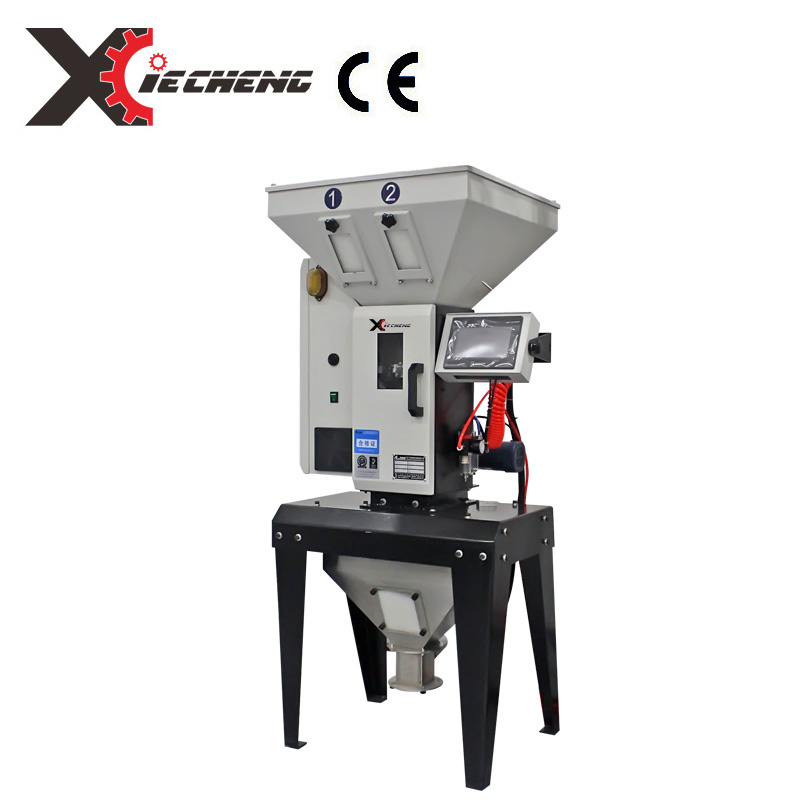

GRAVIMETRIC BLENDER
Plastic additive mixing and dosing machine mixer gravimetric blender
Adopt single-chip microprocessor design, more powerful function, smaller size and good anti - interference ability
Use eeprom, data will not be lost when power off, battery free.
Interface state, contact controller, easy use, can store lot of formula data (500set)
High speed, high accuracy, ad catch material, more stable.
All material will be weighed then mix, striclty control precision.
Recheck the weight data and material, ensure the precision and accuracy.
Can directly install it on molding machine, but need to choose and buy base of mixer.
When install on the floor, need to buy pneumatic material - stop valve, foot stool, storage bunker, and material - inhale box.
GRAVIMETRIC BLENDER APPLICATION
XIECHENG brand Gravimetric Blender is widely applicable in plastic processing field like plastic extrusion, injection molding, bottle blowing.Standard models can process granules like raw material, recycled material, masterbatch and additives.For color powder or color oil, special models can be customized.
FUNCTIONA
When machine starts working, hopper 1 starts feeding on the basic calculation of set weight and unit time feeding of metering valve.The valve will be closed after feeding time and then gravimetric sensor will starts work.Within the error range, the machine will go to hopper 2, and then in succession hopper 3, until all the hoppers finish feeding.After feeding, materials will fall into the mixing tank and be blended until reaching the time limit.Manually open the shut-off plate or automatically open the pneumatic discharge valve to let the material fall into the injection molding machine or storage tank.
SPECIFICATION
Model | XGB-40- | XGB-80- |
4 | 4-1R | 4-2R | 4-3R | 3 | 3-1R | 3-2R | 2 | 2-1R | 4 | 4-1R | 4-2R | 4-3R | 3 | 3-1R | 3-2R | 2 | 2-1R |
Group number | 4 | 3 | 2 | 4 | 3 | 2 |
Knife metering quantity | 4 | 3 | 2 | 1 | 3 | 2 | 1 | 2 | 1 | 4 | 3 | 2 | 1 | 3 | 2 | 1 | 2 | 1 |
Screw metering quantity | - | 3 | 2 | 1 | - | 2 | 1 | - | 1 | - | 3 | 2 | 1 | - | 2 | 1 | - | 1 |
Maxmum batch quantity (kg) | 0.6 | 1.5 |
Compress Air (kg/m²) | 5-6 | 5-6 |
Mixing motor power (kw) | 0.09 | 0.2 |
Maximum output (kg/hr) | 40 | 40 | 35 | 30 | 50 | 50 | 45 | 60 | 55 | 80 | 80 | 65 | 50 | 90 | 90 | 70 | 140 | 120 |
Machine voltage specification | 1Φ, 230V, 50Hz | 1Φ, 230V, 50Hz |
Model | XGB-200- | XGB-600- |
4 | 4-1R | 4-2R | 4-3R | 3 | 3-1R | 3-2R | 2 | 2-1R | 4 | 4-1R | 4-2R | 4-3R | 3 | 3-1R | 3-2R | 2 | 2-1R |
Group number | 4 | 3 | 2 | 4 | 3 | 2 |
Knife metering quantity | 4 | 3 | 2 | 1 | 3 | 2 | 1 | 2 | 1 | 4 | 3 | 2 | 1 | 3 | 2 | 1 | 2 | 1 |
Screw metering quantity | - | 3 | 2 | 1 | - | 2 | 1 | - | 1 | - | 3 | 2 | 1 | - | 2 | 1 | - | 1 |
Maxmum batch quantity (kg) | 2.8 | 8 |
Compress Air (kg/m²) | 5-6 | 5-6 |
Mixing motor power (kw) | 0.2 | 0.37 |
Maximum output (kg/hr) | 200 | 200 | 180 | 160 | 220 | 220 | 160 | 350 | 240 | 600 | 600 | 520 | 500 | 650 | 650 | 500 | 1000 | 700 |
Machine voltage specification | 1Φ, 230V, 50Hz | 1Φ, 230V, 50Hz |
