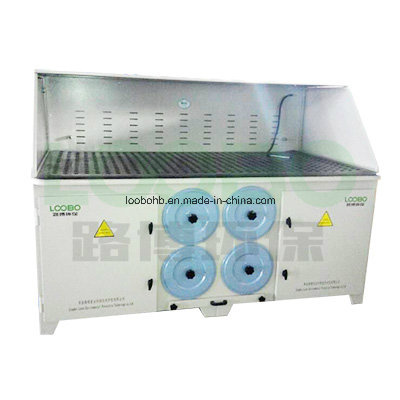

Polising Dust Collector and Downdraft Table for 5000 Airflow Rate
| Price: | US $ 1000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
High Airflow dust collection table, polishing dust collector, grinding downdraft table
We can provide a variety of models according to different working conditions and dust controlling.
**Products Advantage:
1)Unique desktop design is very perfect, baffles are removable, built-in dust removal system, no need pipe connection, reduced energy costs
2) Compact structure, it occupies a limited area.
3) The exhaust inlets set the guide plate, to prevent the dust hit the filter directly, so as to prolong the service life of filter core.
3)adopts high efficient centrifugal fan, with high efficiency, stable operation function. At the same time, use the noise reduction processing for the fun to reduce noise.
4)workbench and dust removal function integration design, directly to remove the dust from the source
6) Pulsing back-flushing automatic dust-removal system, can guarantee the equipment in good working condition.
7) Draw-out type dust box, convenient cleaning
***Operating Principle:
Under the device's high negative pressure, the fume and dust through suction pipe into the purifier, with the Martian dust before enter the purifying cavity were blocked and separated by fire sand . the remaining dust flow is blocked and uniform distribution by flow plate inside the purifying cavity, in order to better purified by cartridge filter.
Larger particles of dust under the action of gravity sinking into the collection of ash hopper, while small particles of dust under the action of suction generated by the eddy current is suspended in internal to purify by cartridge filter.
Small particles of dust on the surface of the filter cartridge, after the effect of gathered adsorption and
Combined, sinking into the ash hopper. After purification, the air flow out, offer a healthy working environment for worker.
**Products Advantage:
1) The exhaust inlets set the guide plate, to prevent the dust hit the filter directly, so as to prolong the service life of filter core.
2) There are exhaust inset around the worktable, can effectively control the dust flying.
3)adopts high efficient centrifugal fan, with high efficiency, stable operation function. At the same time, use the noise reduction processing for the fun to reduce noise.
4)workbench and dust removal function integration design, directly to remove the dust from the source
5) Compact structure, it occupies a limited area.
6) Pulsing back-flushing automatic dust-removal system, can guarantee the equipment in good working
Models with paramters below:
Company Information and contact details:
Qingdao Loobo Environmental Protection Technology Co.,Ltd is one of the biggest enviromental protection products manufacturer, located in Qingdao city of china,specialized in alll kinds of portable fume extractor, downdraft benches(grinding dust removal worktable), central fume purification system, flexible suction arm,etc.
We have more than ten years export experience ,all of our products with the ISO9001 and CE certification, the quality can be guaranteed.
We have our own R&D department , have a variety of style range to meet any of your requirments and had established the economies of scale, so can dilivery fast and provide can beat your competitor's price.
Best Regards
Miss Molly Huang
Qingdao Loobo Environmental Protection Technology Co.,Ltd
Factory Address: No.19, Hechuan Road, Licang Industry Park, Qingdao, China
Phone: +86-15064847869
Fax : +86-532-8068 7573
Website:
www.looboqd.com(English version)
www.loobo.cn (Chinese version)
We can provide a variety of models according to different working conditions and dust controlling.
**Products Advantage:
1)Unique desktop design is very perfect, baffles are removable, built-in dust removal system, no need pipe connection, reduced energy costs
2) Compact structure, it occupies a limited area.
3) The exhaust inlets set the guide plate, to prevent the dust hit the filter directly, so as to prolong the service life of filter core.
3)adopts high efficient centrifugal fan, with high efficiency, stable operation function. At the same time, use the noise reduction processing for the fun to reduce noise.
4)workbench and dust removal function integration design, directly to remove the dust from the source
6) Pulsing back-flushing automatic dust-removal system, can guarantee the equipment in good working condition.
7) Draw-out type dust box, convenient cleaning
***Operating Principle:
Under the device's high negative pressure, the fume and dust through suction pipe into the purifier, with the Martian dust before enter the purifying cavity were blocked and separated by fire sand . the remaining dust flow is blocked and uniform distribution by flow plate inside the purifying cavity, in order to better purified by cartridge filter.
Larger particles of dust under the action of gravity sinking into the collection of ash hopper, while small particles of dust under the action of suction generated by the eddy current is suspended in internal to purify by cartridge filter.
Small particles of dust on the surface of the filter cartridge, after the effect of gathered adsorption and
Combined, sinking into the ash hopper. After purification, the air flow out, offer a healthy working environment for worker.
**Products Advantage:
1) The exhaust inlets set the guide plate, to prevent the dust hit the filter directly, so as to prolong the service life of filter core.
2) There are exhaust inset around the worktable, can effectively control the dust flying.
3)adopts high efficient centrifugal fan, with high efficiency, stable operation function. At the same time, use the noise reduction processing for the fun to reduce noise.
4)workbench and dust removal function integration design, directly to remove the dust from the source
5) Compact structure, it occupies a limited area.
6) Pulsing back-flushing automatic dust-removal system, can guarantee the equipment in good working
Models with paramters below:
1.LB-DJ Series(DJ2400&DJ3000)
| Model | Airflow(M3/H) | Power(KW) | Cartridge size (mm) | Cartridge Qty(pcs) | Body size (mm) |
| LB-DJ2400 | 2400 | 2.2 | dia325*465 | 2 | 1000*1360*1640 |
| LB-DJ3000 | 3000 | 3.0 | dia325*495 | 2 | 1000*1360*1640 |
2.LB-DM Series(DM2400,DM3000,DM5000,DM6500)
| Model | Airflow(M3/H) | Power(KW) | Cartridge size (mm) | Cartridge Qty (pcs) | Body size (mm) |
| LB-DM2400 | 2400 | 2.2 | dia325*1023 | 2 | 2000*900*1200 |
| LB-DM3000 | 3000 | 2.2 | dia325*1223 | 2 | 2200*900*1200 |
| LB-DM5000 | 5000 | 3.0 | dia325*770 | 4 | 2200*1050*1450 |
| LB-DM6500 | 6500 | 3.0 | dia325*920 | 4 | 2200*1200*1450 |
3. LB-DK Series(DK5000&DK6500)
| Model | Airflow(M3/H) | Power(KW) | Cartridge size (mm) | Cartridge Qty (pcs) | Body size (mm) |
| LB-DK5000 | 5000 | 2.2*2 | dia325*770 | 4 | 2200*1050*1450 |
| LB-DK6500 | 6500 | 4.0*2 | dia325*920 | 4 | 2200*1200*1450 |
4. LB-DG3000
| Model | Airflow(M3/H) | Power(KW) | Cartridge size (mm) | Cartridge Qty (pcs) | Body size (mm) |
| LB-DG3000 | 3000 | 3.0 | dia325*465 | 2 | 1200*800*1470 |
5. LB-DF2400
| Model | Airflow(M3/H) | Power(KW) | Cartridge size (mm) | Cartridge Qty (pcs) | Body size (mm) |
| LB-DF2400 | 2400 | 2.2 | dia325*651 | 2 | 1000*1050*1600 |
Company Information and contact details:
Qingdao Loobo Environmental Protection Technology Co.,Ltd is one of the biggest enviromental protection products manufacturer, located in Qingdao city of china,specialized in alll kinds of portable fume extractor, downdraft benches(grinding dust removal worktable), central fume purification system, flexible suction arm,etc.
We have more than ten years export experience ,all of our products with the ISO9001 and CE certification, the quality can be guaranteed.
We have our own R&D department , have a variety of style range to meet any of your requirments and had established the economies of scale, so can dilivery fast and provide can beat your competitor's price.
Best Regards
Miss Molly Huang
Qingdao Loobo Environmental Protection Technology Co.,Ltd
Factory Address: No.19, Hechuan Road, Licang Industry Park, Qingdao, China
Phone: +86-15064847869
Fax : +86-532-8068 7573
Website:
www.looboqd.com(English version)
www.loobo.cn (Chinese version)
| Prod Model: | LB-DK5000 |
|---|---|
| Airflow: | 2400m3/H, 3600m3/H |
| Power: | 2.2kw |
| Cleaning Way: | Auto Pulse Jet Cleaning |
| Efficiency: | 99.97% |
